Mounting Rules
In addition to the general settings, Mounting Rules can be created to override the Default decompression cache
settings for a specific Mounting location:
Special rules for cache file decompression
Locally (by the original) File(s) will be created in the same location as the original file.
Sub-locally (by the original, in a \MTDXCache sub folder) . File(s) will be created in a sub folder created by Pyra-
mix in the same location as the original file.
Custom (files are generated to the specified location) . File(s) will be created in a user specified location. When
this option is selected the Browse... button is available to open a file browser window to set the user defined path.
Enable enables the rule.
Allow cache files mounting when ticked cache files can be mounted directly, otherwise they remain invisible.

MXF

The Pyramix MXF implementation can read and decode MXF files following specifications AS WELL as files coming
from Avid / Digidesign workstations.
Pyramix MXF can generate valid MXF files complying with MXF specifications and have passed the validations
tests provided by Snell&Wilcox.
As of today, supported MXF formats are OP1A and OPAtom, as well as potentially OP1B, OP1C, OP2A.
MXF Essences supported today are AES3 & Broadcast Wave audio files (conforming to SMPTE 382M).
For the latest MXF interchange information please see:

Dolby

Dolby AC3 encoding and Dolby E encoding and decoding can be accomodated via optional Minnetonka Sur-
Code plug-ins. These require the relevant security keys. Please contact your Merging Technologies sales partner
for more information.
Note: The Dolby plug-ins require a separate installer.

Simple File Conversion

To convert to or from PMF audio files use the Project > Render ><None> function.
Place the file you wish to convert on a Track or Tracks in the Timeline and select the resultant Clip by clicking on it.
Make appropriate settings in the Render dialog, click on the Render button and voila!

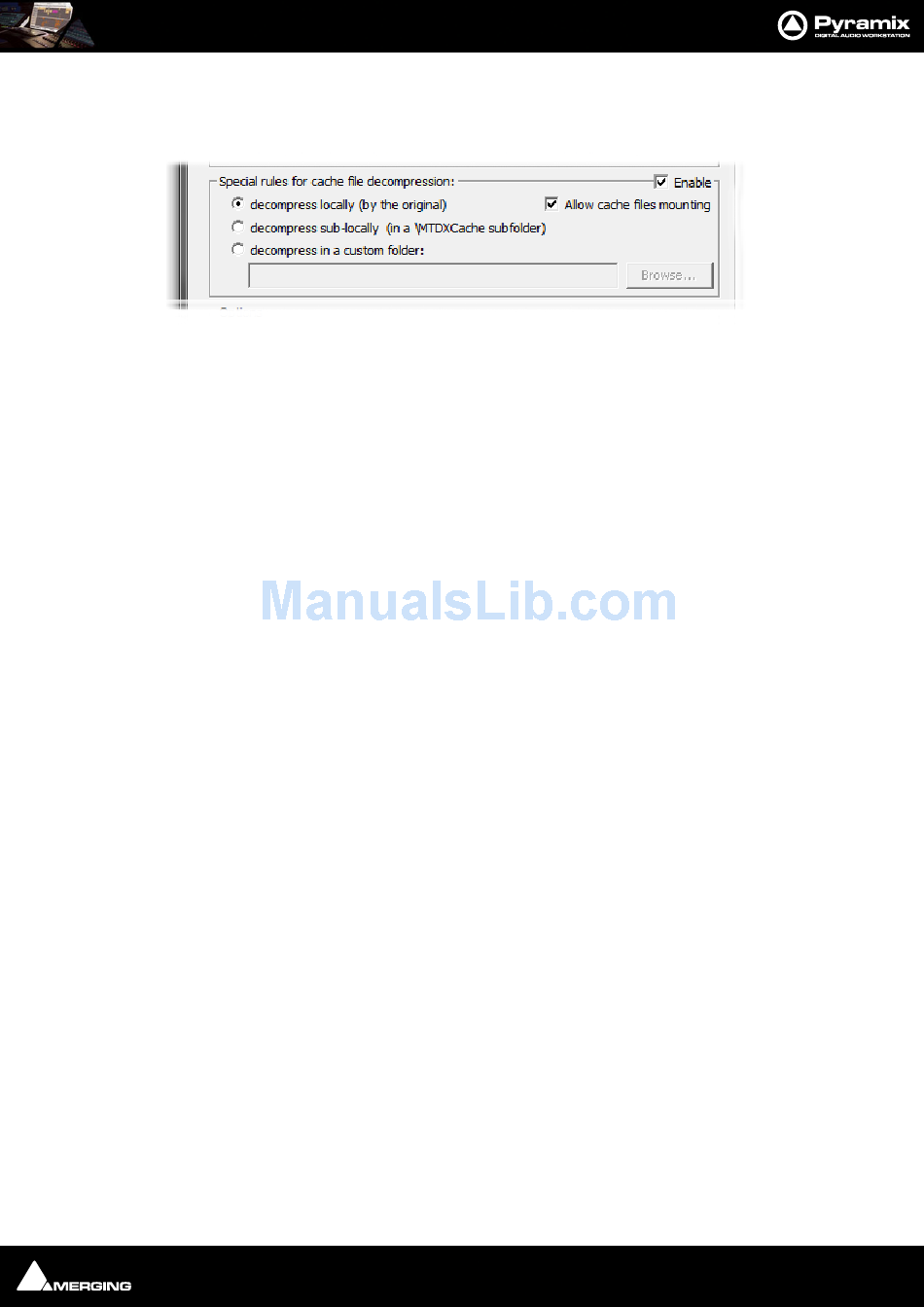

Mounting Rules dialog decompression rules section
http://forum.merging.com/viewtopic.php?f=23&t=2094
