The buttons select the hardware Jog Wheel Mode from a choice of Jog , Shtl , Loop , Nav, Zoom or Off . Many con-
trollers will have buttons either corresponding directly to these functions or mappable to them.
Note: Further Jog Wheel Modes are available in Machines > Controllers.
The selected function is lit in yellow. ( Off in the images above.)
The Shuttle slider is provided for convenience when using the Transport Control Panel.

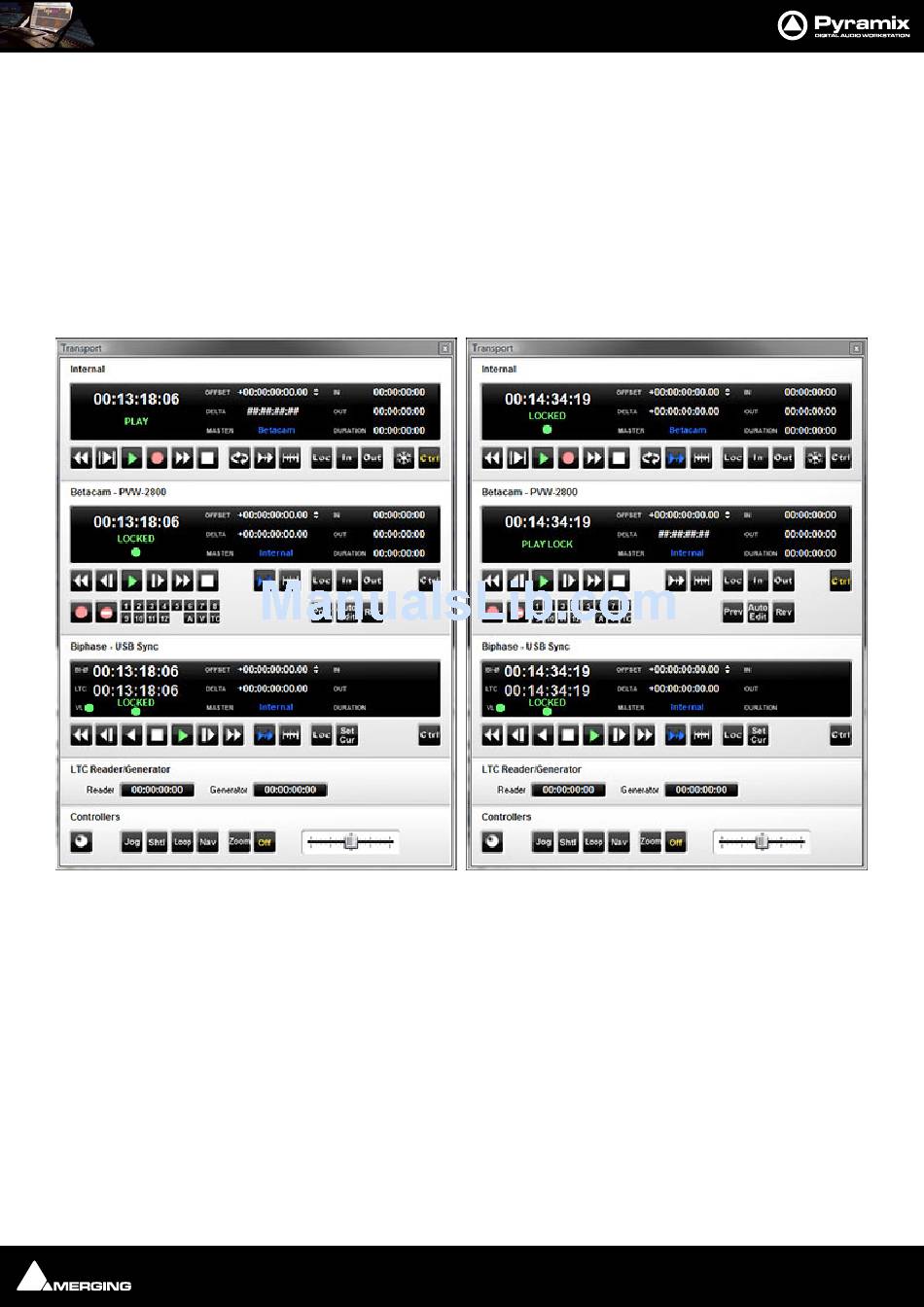

Examples:

In the following examples there are three machines. At the top of each window is the host Pyramix Internal
Machine. Below this is a BETACAM - PVW-2800 and the third machine is a BiPhase transport or transports. (Via the
MTUsbSync Board) Both External Machines are controlled via the Sony 9-pin P2 protocol.
In the left-hand example the Host Pyramix is Master and both External Machines are in Chase and Locked .
In the right-hand example the Betacam is now the Master and both the Internal Pyramix and External BiPhase
Machines are in Chase and Locked .
Note: Machines NOT in chase can be used independently of the Master while the Master is in use
by using their individual controls. So you can locate on a machine whilst continuing to mix using
the Master and slaves.
Machine Control : Transport Control Panel
Transport Control Examples
