HORUS Preamp Remote Controls

If you are using the Merging Technologies HORUS I/O with analog inputs, remote control of the analog preamps is
available in the Pyramix Mixer. The controls appear automatically in the mixer when a strip's input is patched to a
HORUS analog preamp.
If the HORUS Preamp Remote section is not visible click on the + Expand button on the right-hand side of the
mixer.
The controls enable analog gain to be set, the Pad and High-pass Filter to be activated, 48V Phantom Power to be
switched, Phase to be reversed and the Preamp to be switched between Mic and Line. If Channels patched to
Horus analog preamps are 'VCA' grouped then the Preamp Remote Controls in the VCA Group strip will affect all
members of the Group.
Note: GPS Channels do not support the HORUS Preamp Remote controls when connected to
HORUS analog inputs.
Mixer : HORUS Preamp Remote Controls

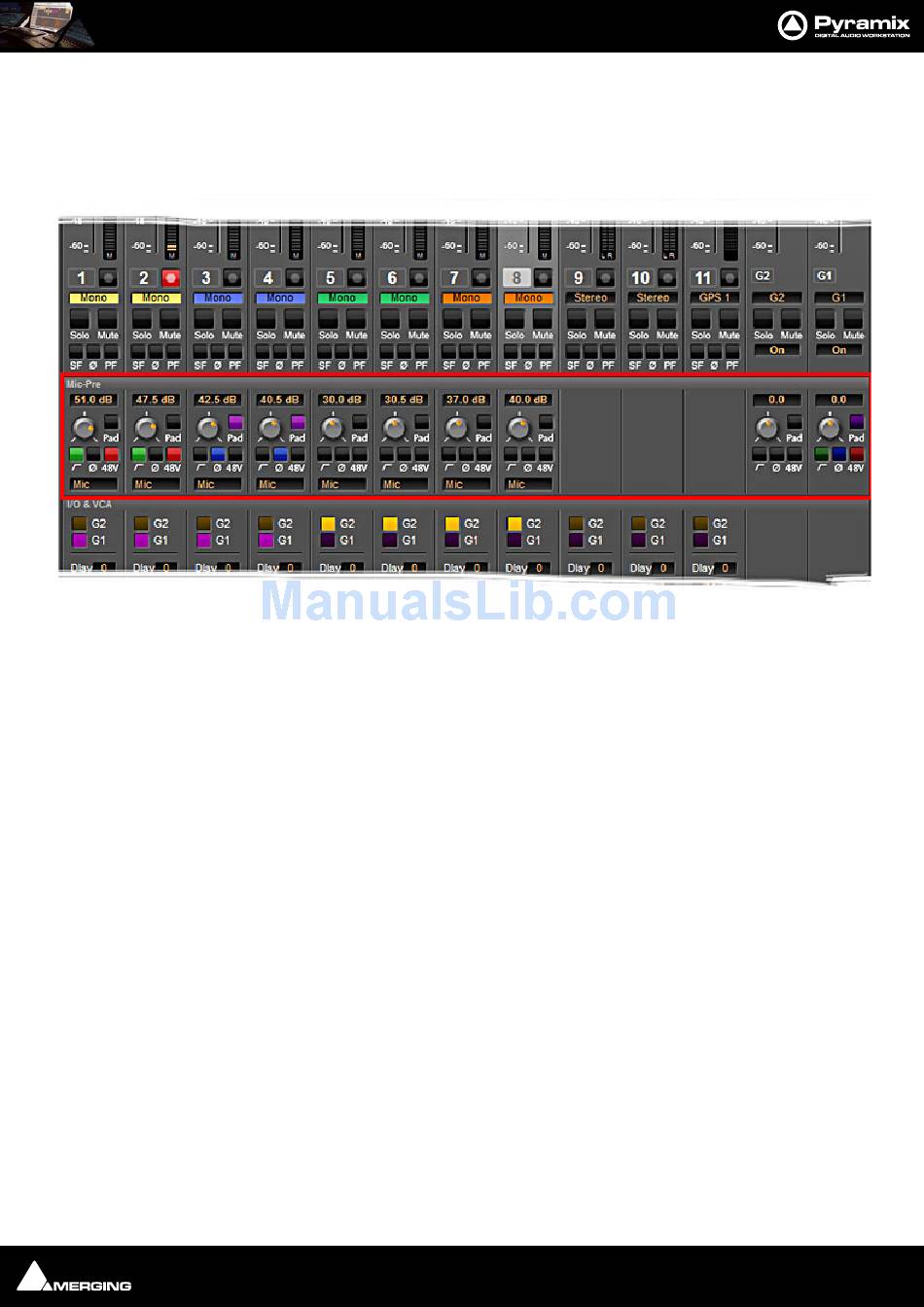

Mixer showing Horus Preamp Remote Controls
