Global Indicators / Buttons

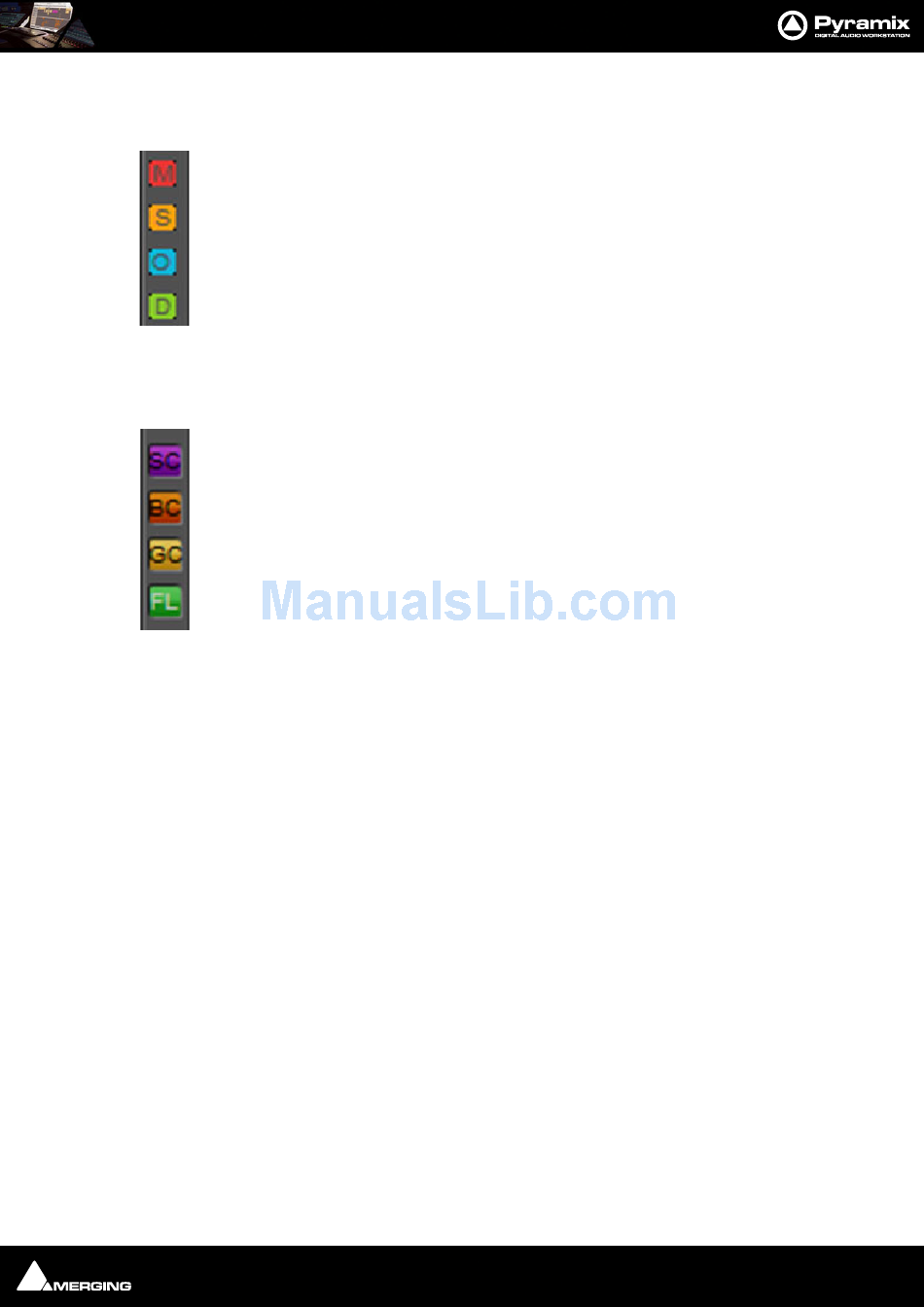

The small indicators/buttons on the right-hand side of the mixer window, adjacent to the Fader row, have the fol-
lowing functions::
MUTE - Lit when a Mute or mutes are active. Clicking on the lit button cancels all active Mutes.
SOLO - Lit when a Solo or Solos are active. Clicking on the lit button cancels all active Solos.
Overload - Lit when an Overload indicator is latched. Clicking on the lit button cancels all active Overload
LEDs.
Automatic Delay Compensation Status
Please see : Delay Compensation on page 241
Color and Signal Flow Buttons
These small buttons on the right-hand side of the mixer window, adjacent to the Fader row, have the following
functions:
Strip Color - When lit shows the Tracks Clip background colors in the Input Strips background.
Bus Color - When lit the bus colors are shown.
Group Color - When lit the VCA-group fader knob(s) and Strip fader knob(s) of Strips assigned to VCA
groups is(are) colored according to the VCA group.. Color is fixed.
Signal Flow - When lit Bus and Strip colors are switched off (if active) and the signal flow for the strip
selected currently is shown. If an Input Strip is selected then the Strip and all Buses it feeds are colored
green. If a Bus strip is selected then the Bus and all Strips feeding it are colored green.
Signal Flow [FL]
When the Signal Flow button is active (lit):
When an Input Strip is selected it is colored light green and the complete signal path where the signal is sent from
that strip is colored a darker green. Loops are taken into account in the signal flow coloring.
Signal Flow coloring applies whether signals are actually present or not.
If an output Bus Strip is selected it is colored blue and the complete signal path of all sources feeding the Bus is
also colored blue. Loops are not taken into account.
If a VCA Group is selected, the signal flow of all members of the group is colored green.
If multiple strips are selected (hold down the Ctrl key and click on Strip numbers) then the signal flow for all strips
selected is colored green.
If the Ctrl key is pressed when clicking on the [ FL ] button, the Mixing console UI contracts to show to only compo-
nents participating to the signal flow. Ctrl clicking the [ FL ] button again restores the mixer UI to its original state.
Mixer : Mix ! 10 - 209
