Track Envelope and Static Gain

Pyramix offers two Track based methods of varying Clip gain. Static Gain and Envelope .
Note: Static Gain and Envelope operate independently of the dynamic automation.

Static Gain

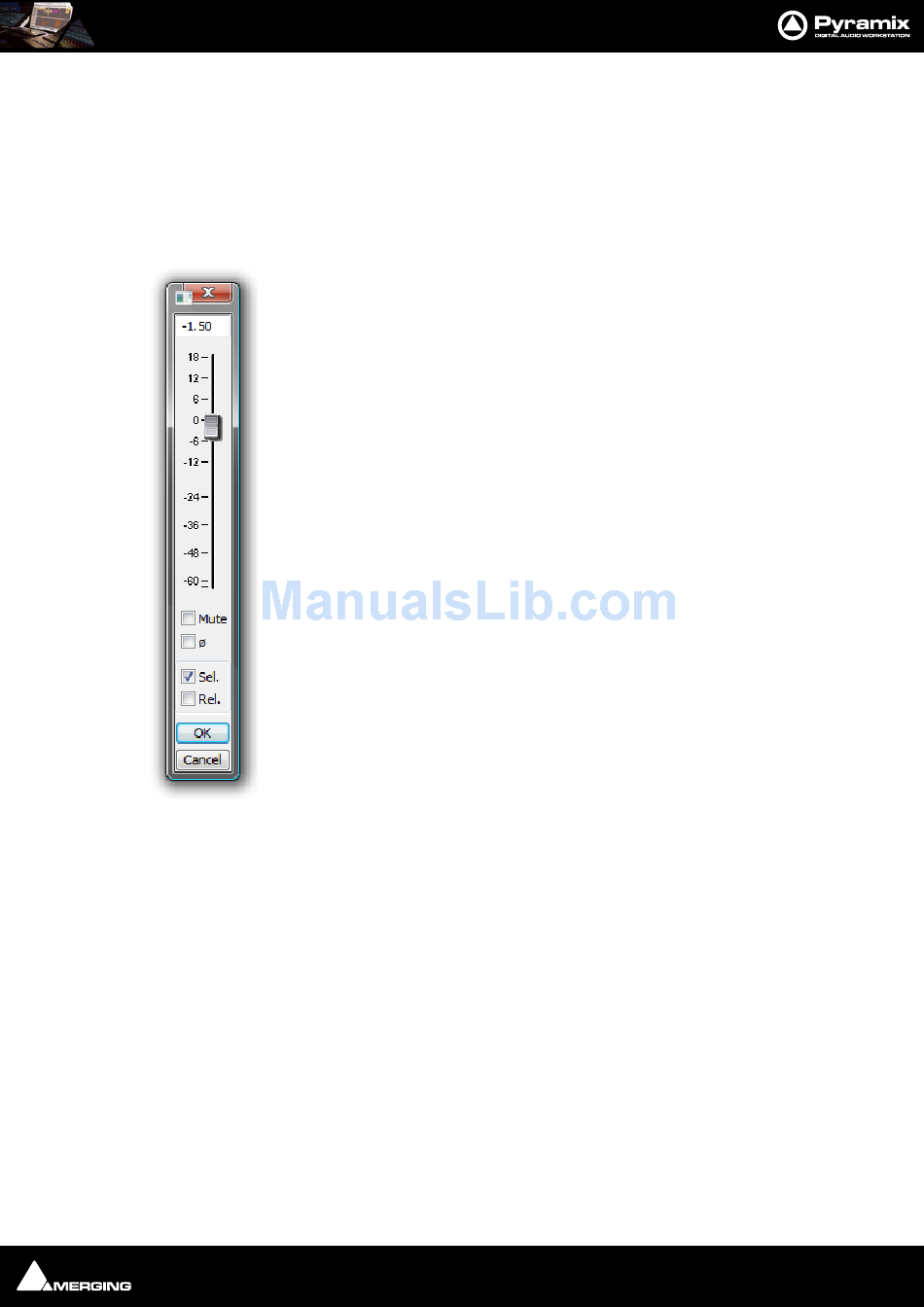

Gain Window
Gain Window
Keyboard Shortcuts
• Up Arrow
• Down Arrow
• Shift + Up Arrow
• Shift + Down Arrow
• Ctrl + Shift + Up Arrow
• Ctrl + Shift + Down Arrow =
The Gain window allows the gain to be set for the current selection. The gain value can be
typed into the box at the top of the strip or set by clicking and dragging the fader
Keyboard up and down arrows adjust gain by 0.1dB per press, with Shift 0.5dB per press
and with Ctrl + Shift 1.0dB per press.
Mute when checked, mutes the selection but retains the gain value
Sel. box ( Se lection). When checked, the gain change will be applied to the whole selec-
tion (default is checked)
Rel. box ( Rel ative) When checked and a series of Clips are grouped, the gain change is
relative to pre-existing levels
When neither box is checked any gain change is only applied to the Clip which was last
right-clicked (even if others are selected)
OK button executes any changes selected in the Gain window and closes it
Cancel button cancels any changes selected in the Gain window and closes it
= Increase gain by 0.1dB/step
= Decrease gain by 0.1dB/step
= Increase gain by 0.5dB/step
= Decrease gain by 0.5dB/step
= Increase gain by 1.0dB/ step
Decrease gain by 1.0dB/step
Tracks and Track Groups : Track Envelope and Static Gain 5 - 106
