Removing the Fan Tray
Note

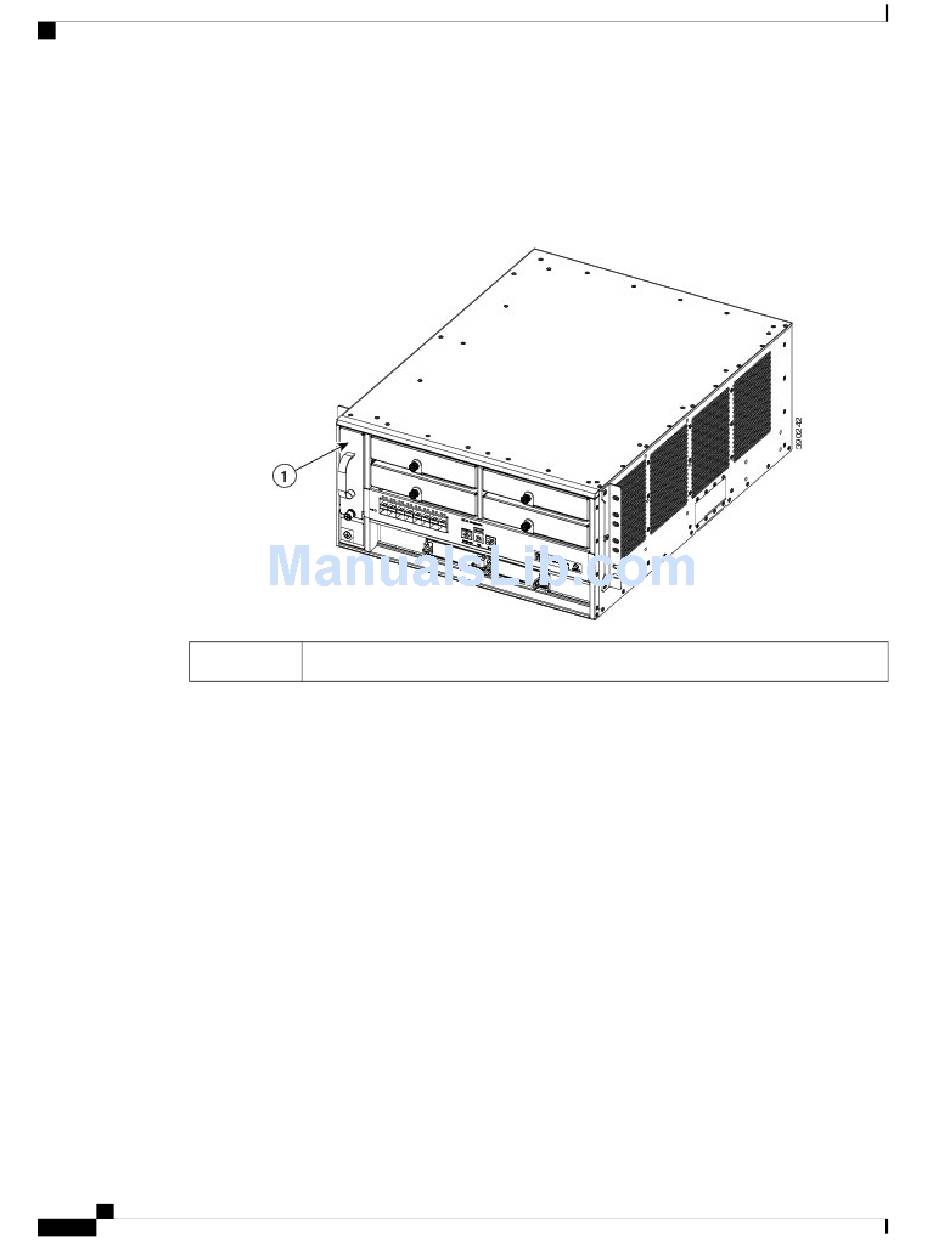

Figure 38: Fan Tray Location
1
Step 2 Loosen the fan tray captive installation screw by turning it counterclockwise.
Step 3 Grasp the fan tray, and pull it outward; gently move side to side, if necessary, to unseat the fan tray power
connector from the backplane.
Caution
Catalyst 6880-X Switch Hardware Installation Guide
74
Make sure there is adequate slack in the network interface cables to allow the cable guide to pivot
down far enough to access the fan tray. If there is insufficient slack in the cables, the cable guide will
not pivot far enough to give you access to the fan trays.
Location of fan tray
When removing the fan tray, keep your hands and fingers away from the spinning fan blades. Let
the fan blades stop completely before you remove the fan tray.
Replacing the Fan Tray
