Half-Wide Modular Slots

The ports are numbered from 1 to 16 with odd-numbered ports on the upper row and even-numbered ports
on the lower row. The following figure shows how the ports and LEDs are numbered.

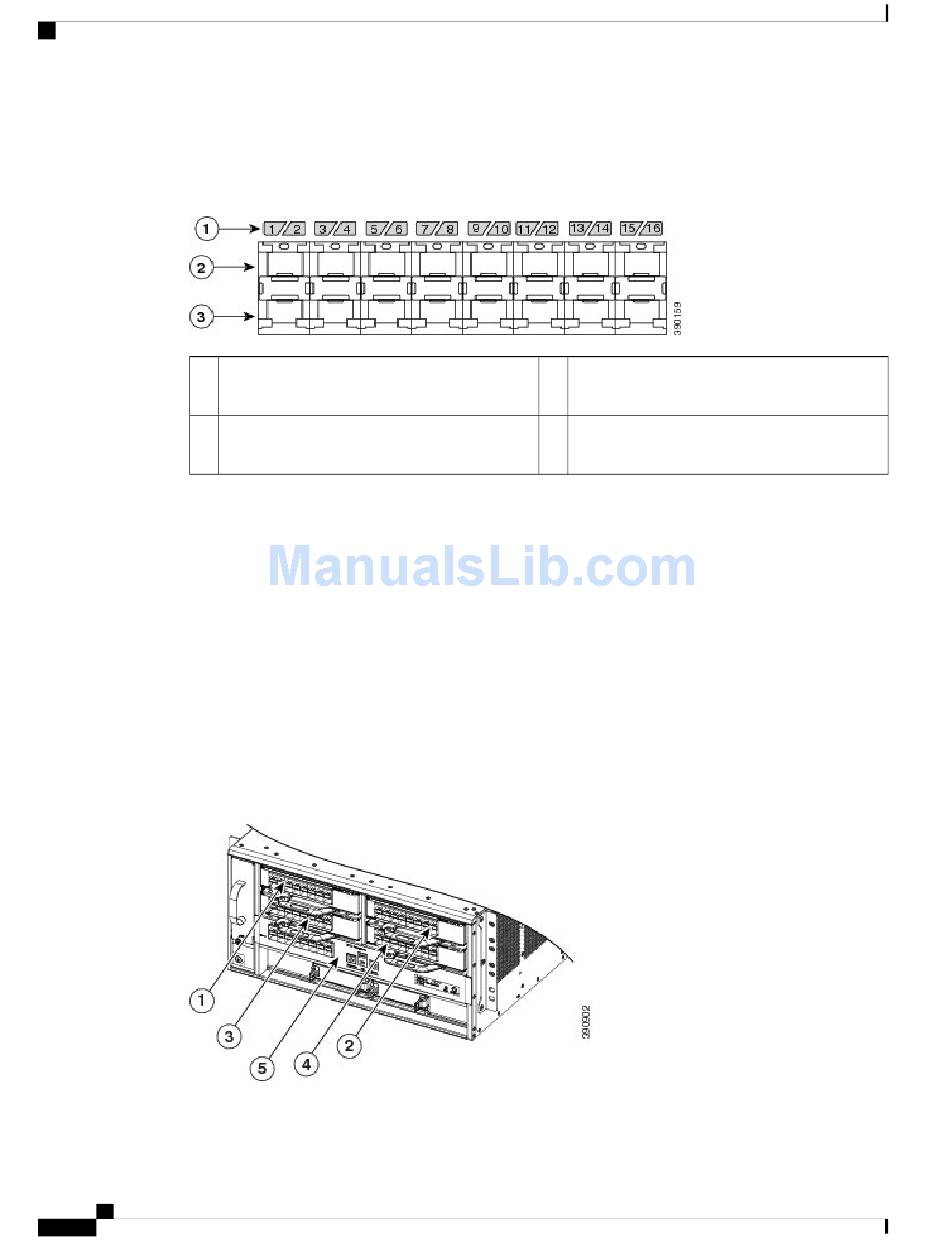

Figure 2: Numbering of Ports on the Chassis
1
2
Related Topics
Front Panel Components, on page 1
Half-Wide Modular Slots
The chassis has four half-wide modular slots that accept pluggable, port cards that can expand the capability
of the switch. For more detailed information about the modular port cards and their installation, see the
"Installing the Modular Port Card" chapter. The chassis is delivered with modular slot blank covers already
installed, which must remain installed if the port cards are not used. The slots are numbered as shown in the
following figure.
Figure 3: Numbering of the Port Card Slots

Catalyst 6880-X Switch Hardware Installation Guide

4
LEDs
Odd-numbered ports, left to right: 1, 3, 5, 7, 9,
11, 13, and 15
3 Even-numbered ports, left to right: 2, 4, 6, 8, 10,
12, 14, and 16
Product Overview
OL-30827-02
