Establishing the System Ground
• Crimping tool to crimp the grounding wire to the grounding lug.
• Wire-stripping tool to remove the insulation from the grounding wire.

Connecting the System Ground

To establish an earth ground for the chassis, you must attach a grounding cable from the chassis' grounding
lug to the rack.
Before You Begin
Review the following illustration and table.

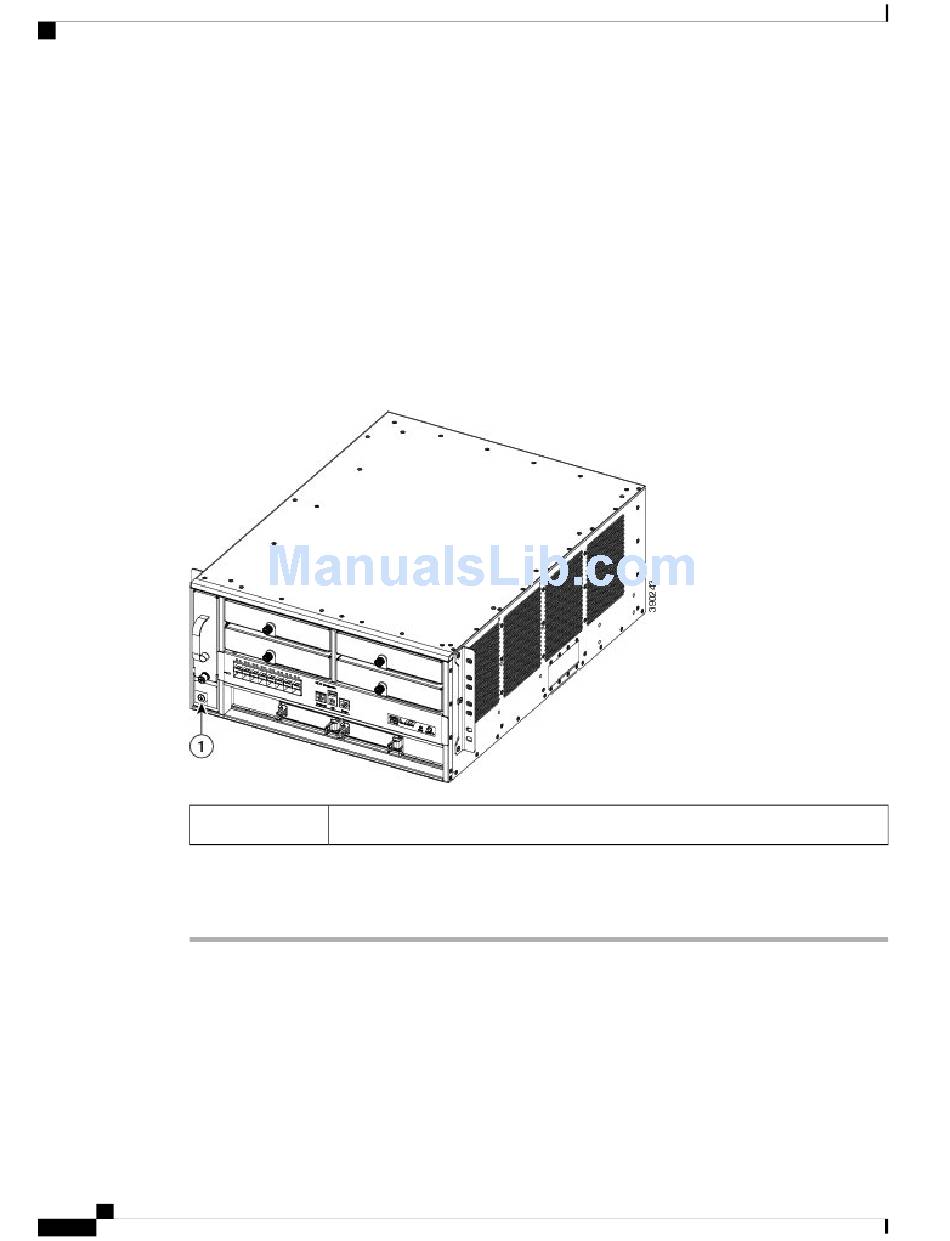

Figure 18: System Ground Location
1
Procedure
Step 1 Use a wire-stripping tool to remove approximately 0.75 inch (19 mm) of the covering from the end of the
grounding wire.
Step 2
Insert the stripped end of the grounding wire into the open end of the grounding lug.
Step 3 Crimp the grounding wire in the barrel of the grounding lug. Verify that the ground wire is securely attached
to the ground lug.
Step 4 Place the grounding wire lug against the grounding pad, making sure that there is solid metal-to-metal contact.

Catalyst 6880-X Switch Hardware Installation Guide

46
Location of system ground lug
Installing the Switch
OL-30827-02
