LED Indicators
DC-Input Power Supply LEDs
The 3000 W DC-input power supply includes LEDs on the front of the module. The different states of the
LEDs are described in the following table.

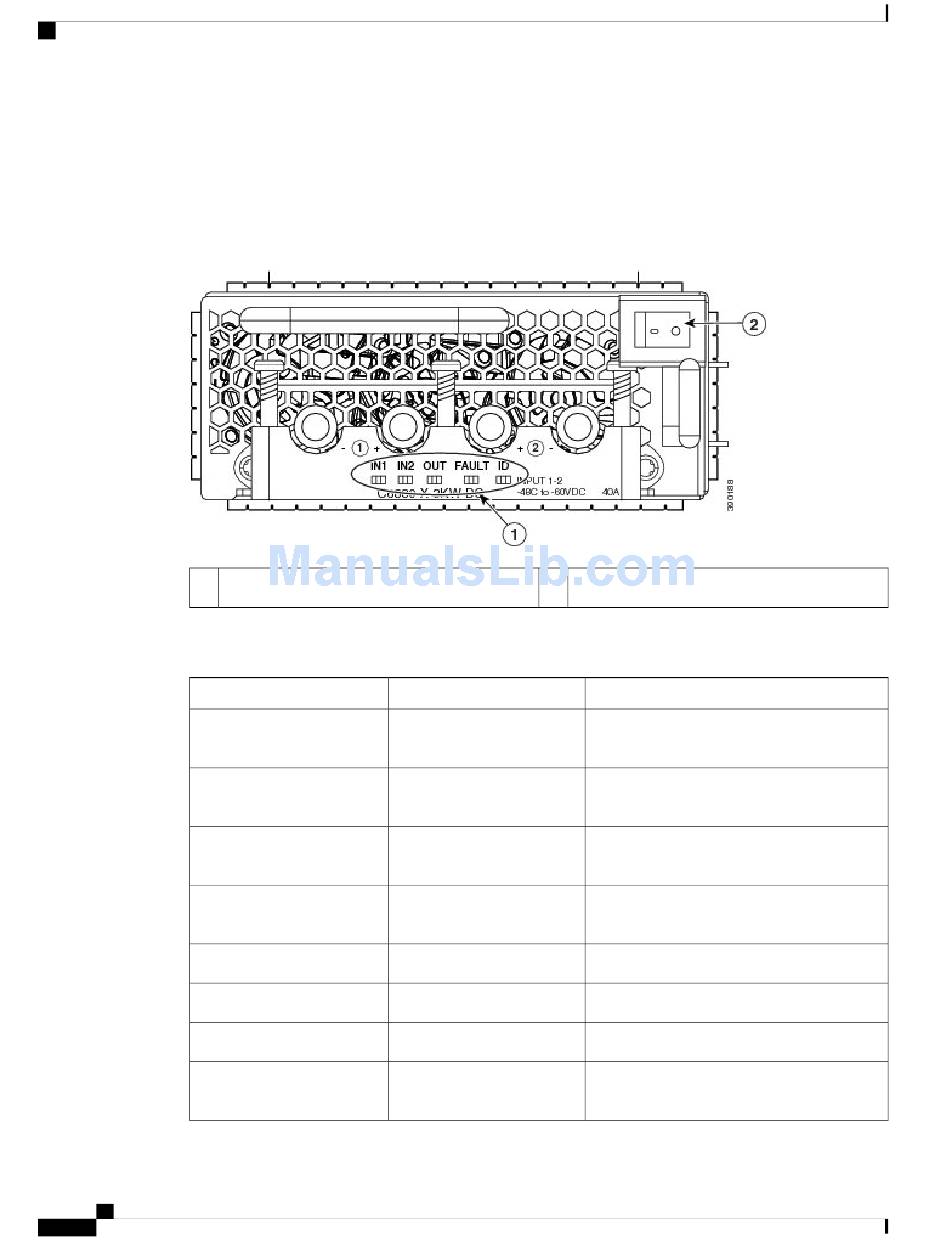

Figure 8: DC-Input Power Supply LED Locations
1
Location of LEDs on DC-input power supply
Table 10: DC-Input Power Supply LED Indicators
LED
IN1
IN1
IN2
IN2
OUT
OUT
FAULT
FAULT
Catalyst 6880-X Switch Hardware Installation Guide
14
2
On/Off switch
Color/State
Solid green
Blinking green
Solid green
Blinking green
Solid green
Blinking green
Off
Blinking red
Description
Primary DC input current is at acceptable
level.
Primary DC input current is outside valid
range.
Secondary DC input current is at acceptable
level.
Secondary DC input current is outside valid
range.
Output DC current is at acceptable level.
Output DC current is outside valid range.
Power supply unit is functioning normally.
The unit has failed self-diagnostic test or is
not operational.
Product Overview
OL-30827-02
