Installing the Modular Port Card
Step 2 Always remove any cables before removing the port card from the slot. Disconnect the cables from the SFP+
transceiver modules.
Step 3 (Optional) Remove the SFP+ transceiver modules from the port card.
Step 4 Press on the extraction handle to release the latch and rotate the handle outwards to extract the card.

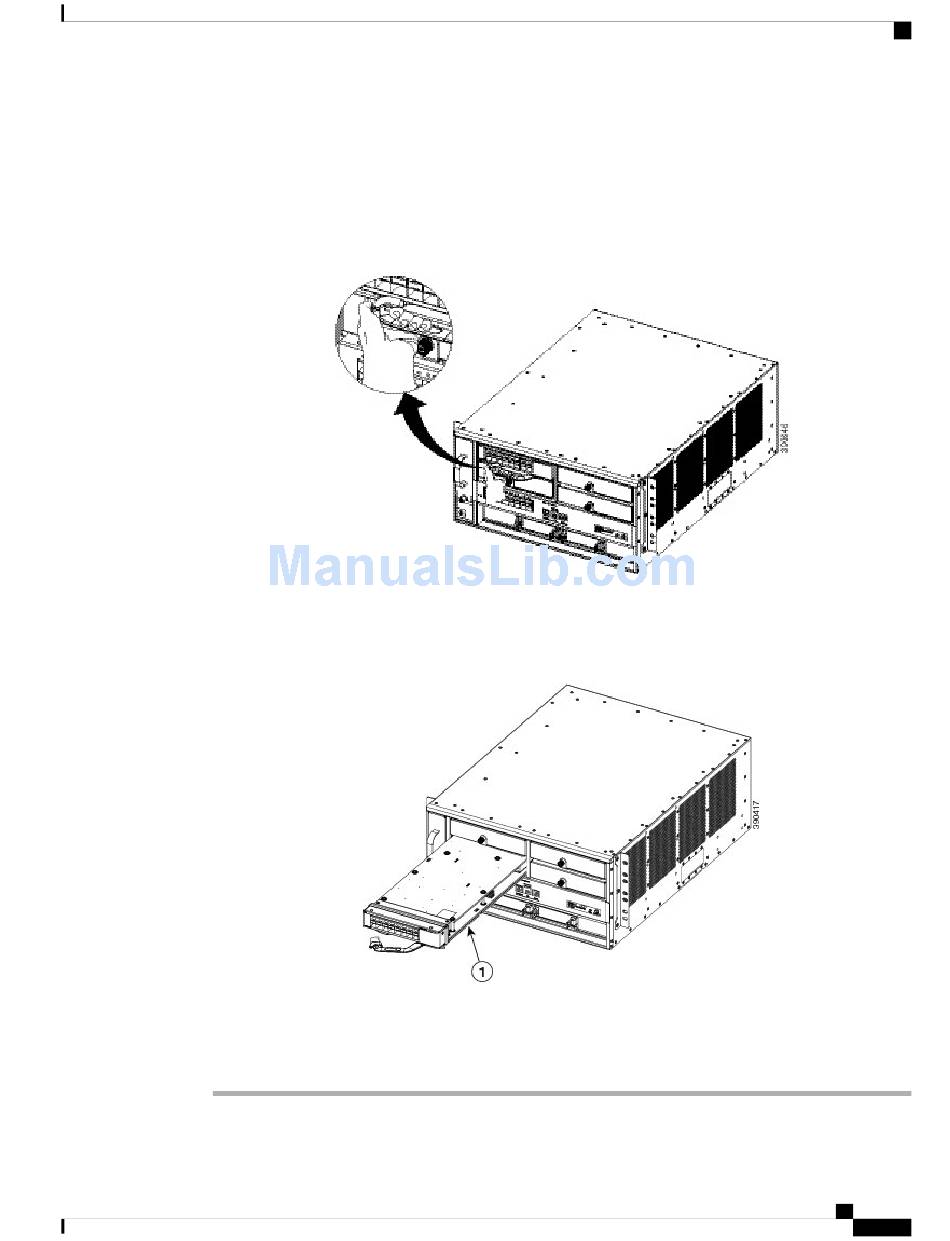

Figure 35: Releasing the Latch
Step 5
Grasp the port card, and carefully slide it out of the slot. You can use the other hand too.
Figure 36: Removing the Port Card
Step 6 Install a replacement port card or a blank module in the slot.
Step 7 Place the port card that you removed in an antistatic bag or other protective environment.
Note
OL-30827-02
You can close the latch so it locks, and use the handle to carry the port card module.
Removing a Modular Port Card
