Installing the Switch
Note
Step 5
If you want to install one or both of the optional cable guide assemblies, position the cable guides so that the
cable guide mounting holes are aligned with rack-mount bracket holes and the rack post holes as shown in
figure below.
Step 6
Install all eight 10-32 or 12-24 screws (four on each side) through the cable guide mounting holes, rack-mount
L bracket holes, rack post holes, and into the clip nuts to secure the cable guides and the chassis to the rack
post. Tighten the screws securely.

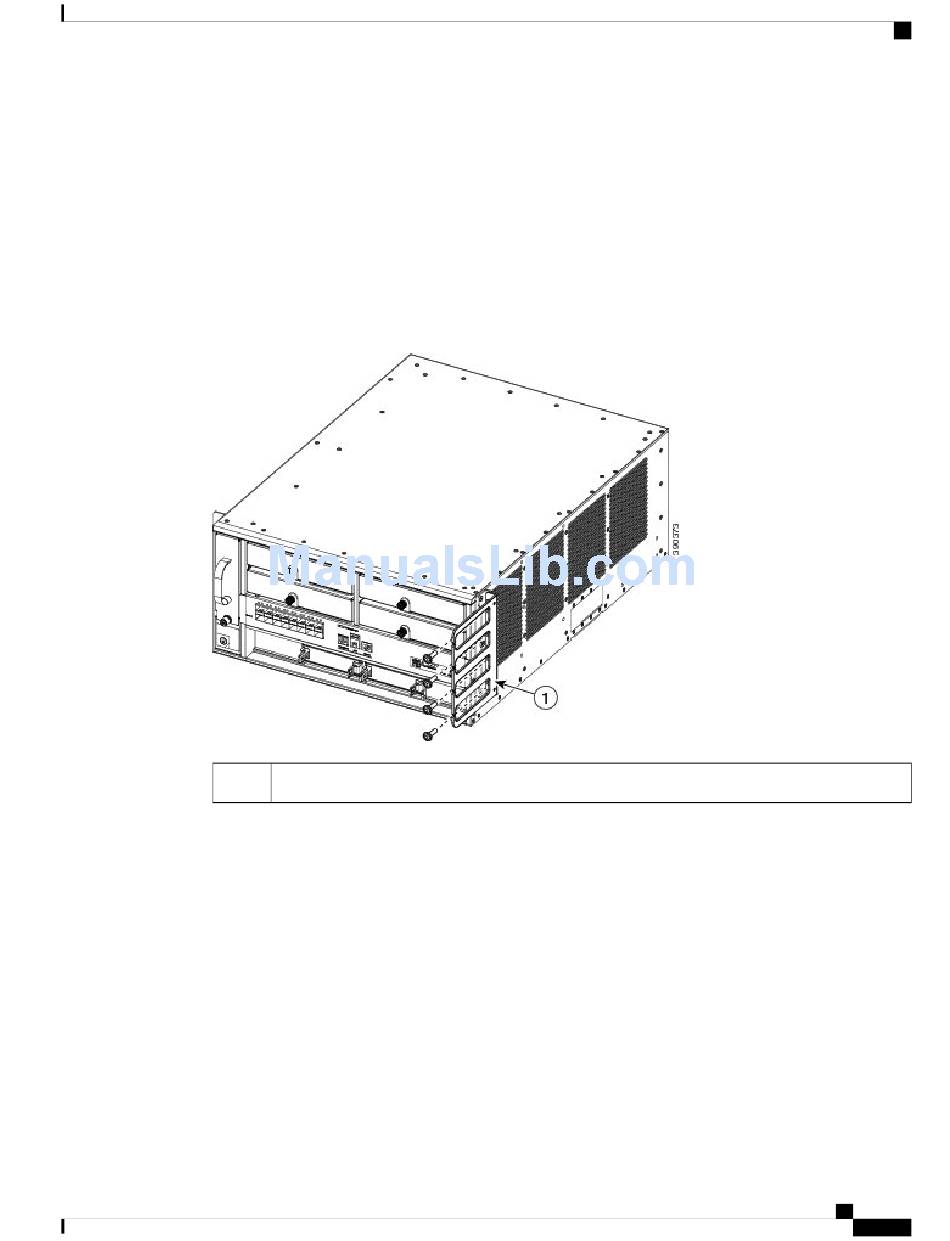

Figure 16: Installing the Cable Mount Guides
1
OL-30827-02
Clip nuts or cage nuts are not included as part of the accessory kit that comes with the chassis. You
must obtain them yourself.
Cable guide
Rack-Mounting the Chassis
Catalyst 6880-X Switch Hardware Installation Guide
43
