6
CONNECTION AND INSTALLATION

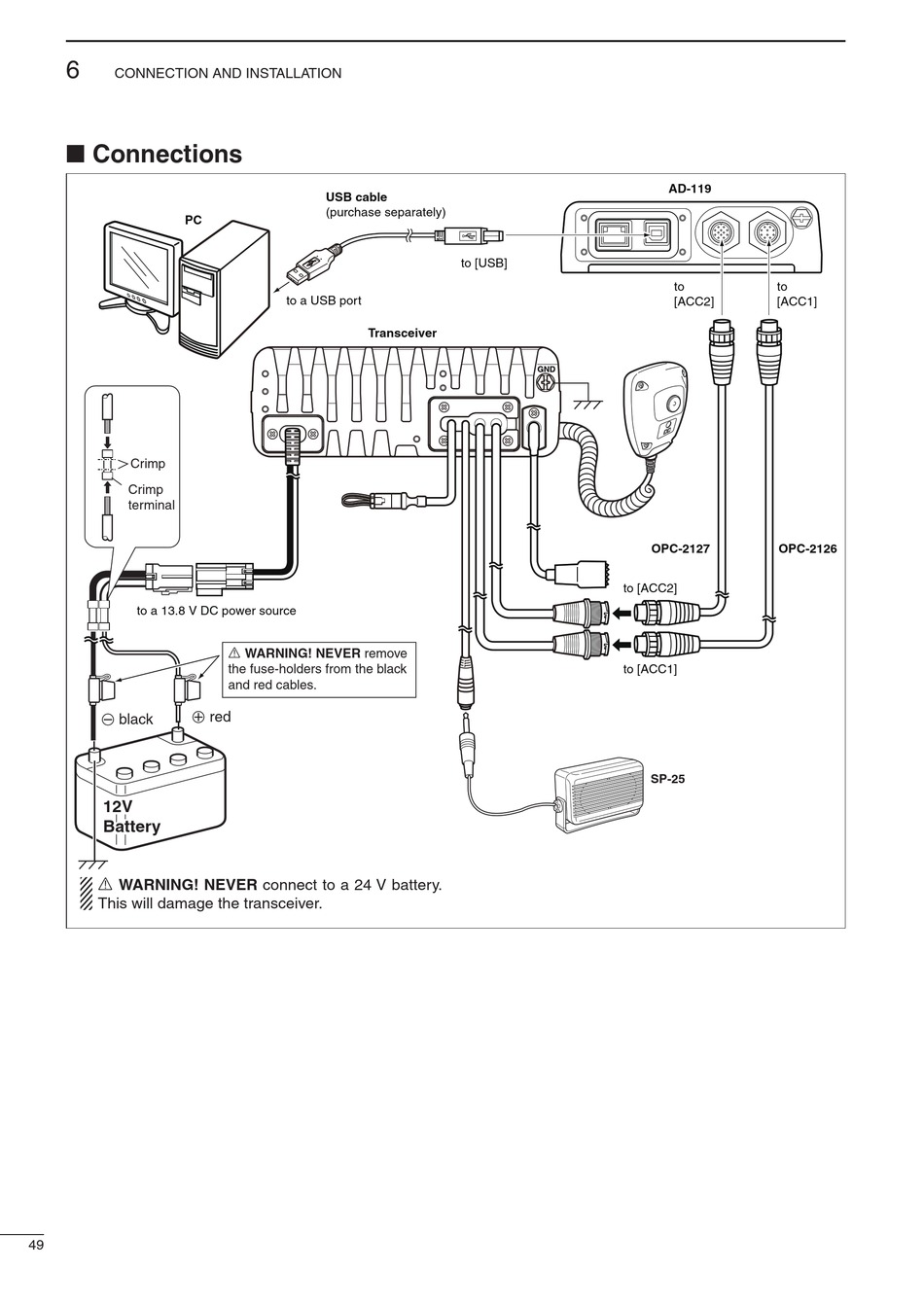

■ Connections
PC
Crimp
Crimp
terminal
to a 13.8 V DC power source
+ red
_ black
12V
12V
Battery
Battery
R WARNING! NEVER connect to a 24 V battery.
This will damage the transceiver.
49
USB cable
(purchase separately)
to a USB port
Transceiver
R WARNING! NEVER remove
the fuse-holders from the black
and red cables.
to [USB]
to [ACC2]
to [ACC1]
AD-119
to
to
[ACC2]
[ACC1]
OPC-2127
OPC-2126
SP-25
