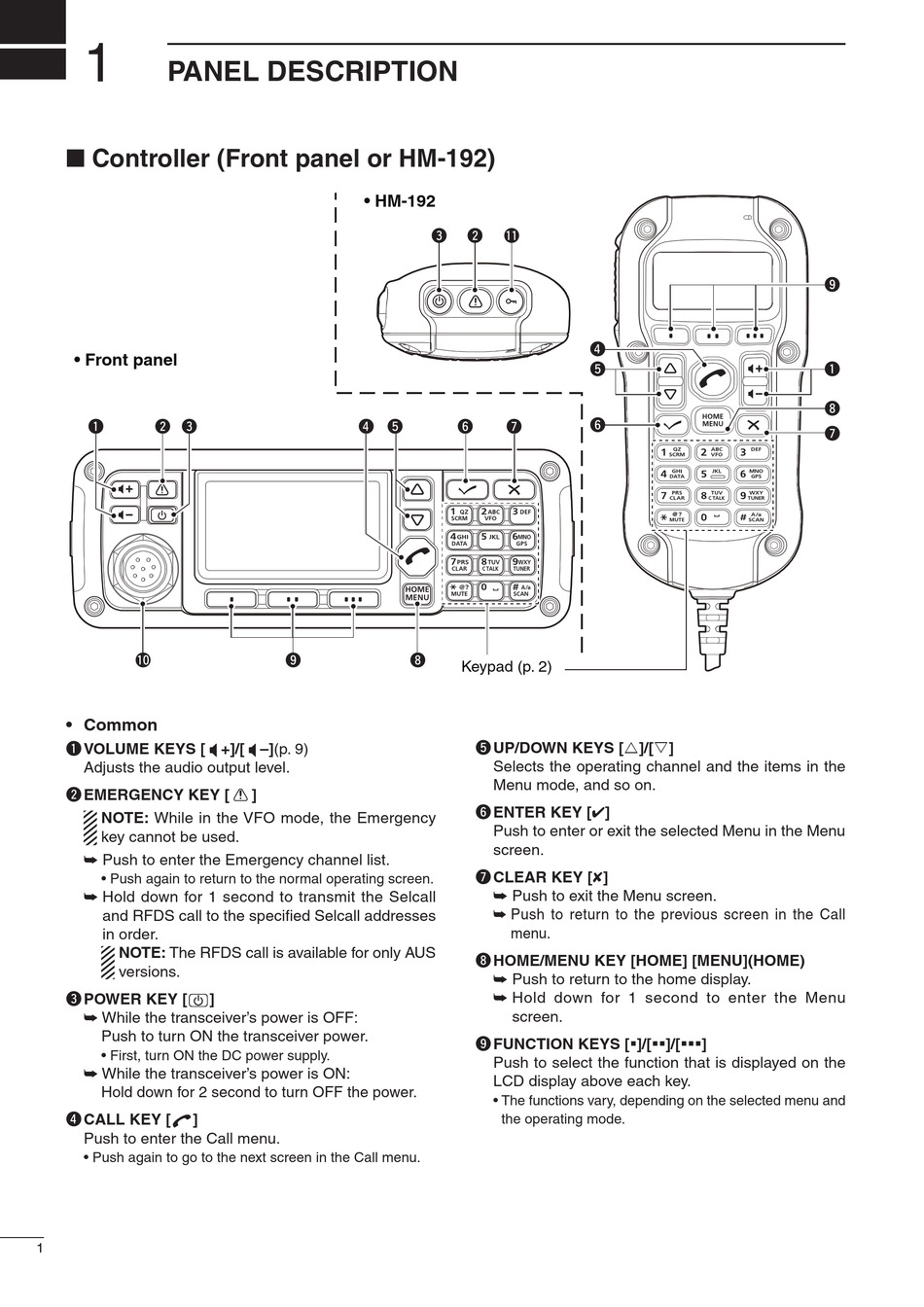

PANEL DESCRIPTION

■ Controller (Front panel or HM-192)

• Front panel
q w e
!0
• Common
q VOLUME KEYS [ +]/[ –](p. 9)
Adjusts the audio output level.
w EMERGENCY KEY [
NOTE: While in the VFO mode, the Emergency
key cannot be used.
➥ Push to enter the Emergency channel list.
• Push again to return to the normal operating screen.
➥ Hold down for 1 second to transmit the Selcall
and RFDS call to the specified Selcall addresses
in order.
NOTE: The RFDS call is available for only AUS
versions.
e POWER KEY [ ]
➥ While the transceiver's power is OFF:
Push to turn ON the transceiver power.
• First, turn ON the DC power supply.
➥ While the transceiver's power is ON:
Hold down for 2 second to turn OFF the power.
r CALL KEY [ ]
Push to enter the Call menu.
• Push again to go to the next screen in the Call menu.
1
• HM-192
r t
o i
]
e w !1
r
t
y
y u
Keypad (p. 2)
t UP/DOWN KEYS [r]/[s]
Selects the operating channel and the items in the
Menu mode, and so on.
y ENTER KEY [4]
Push to enter or exit the selected Menu in the Menu
screen.
u CLEAR KEY [8]
➥ Push to exit the Menu screen.
➥ Push to return to the previous screen in the Call
menu.
i HOME/MENU KEY [HOME] [MENU](HOME)
➥ Push to return to the home display.
➥ Hold down for 1 second to enter the Menu
screen.
o FUNCTION KEYS [§]/[§§]/[§§§]
Push to select the function that is displayed on the
LCD display above each key.
• The functions vary, depending on the selected menu and
the operating mode.
