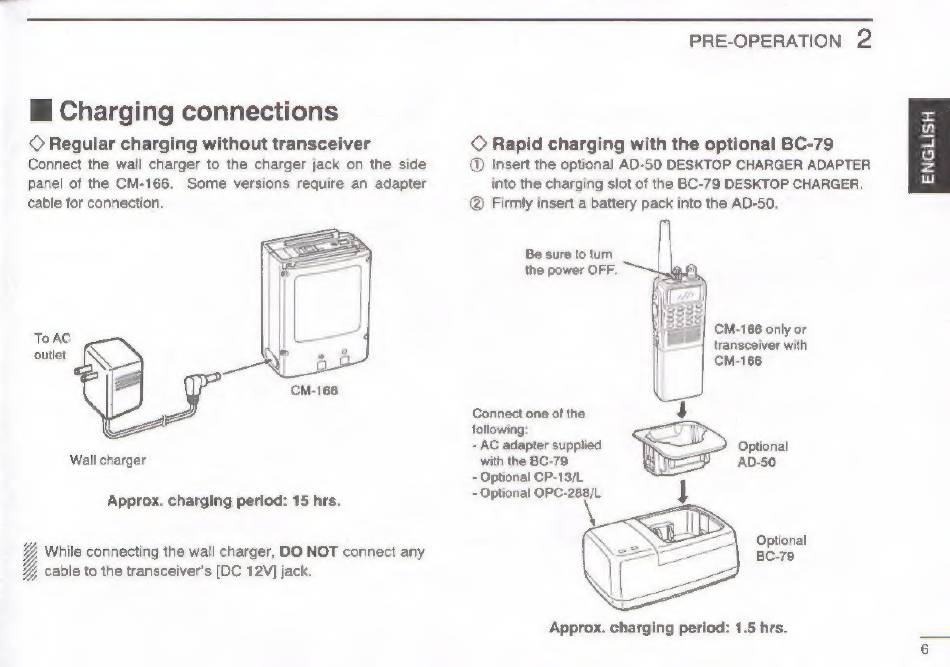

Charging Connections - Icom IC-A3 Instruction Manual

i Charging connections
© Regular charging without transceiver
Connect the wall charger to the charger jack on the side
panel of the CM-166. Some versions require an adapter
cable for connection.
ToAC
outlet
Wall charger
Approx. charging period: 15 hrs.
Y While connecting the wall charger, DO NOT connect any
G cable to the transceiver's [DC 12V] jack.
XN
PRE-OPERATION 2
© Rapid charging with the optional BC-79
@ Insert the optional AD-50 DESKTOP CHARGER ADAPTER
into the charging slot of the BC-79 DESKTOP CHARGER,
@ Firmly insert a battery pack into the AD-50.
Be sure to turn
the power OFF.
CM-166 only or
transceiver with
CM-166
Connect one of the
following: Si
- AC adapter supplied YS Optional
with the BC-79 ey AD-50
- Optional CP-13/L
- Optional OPC-288/L
Optional
BC-79
Approx. charging period: 1.5 hrs.
