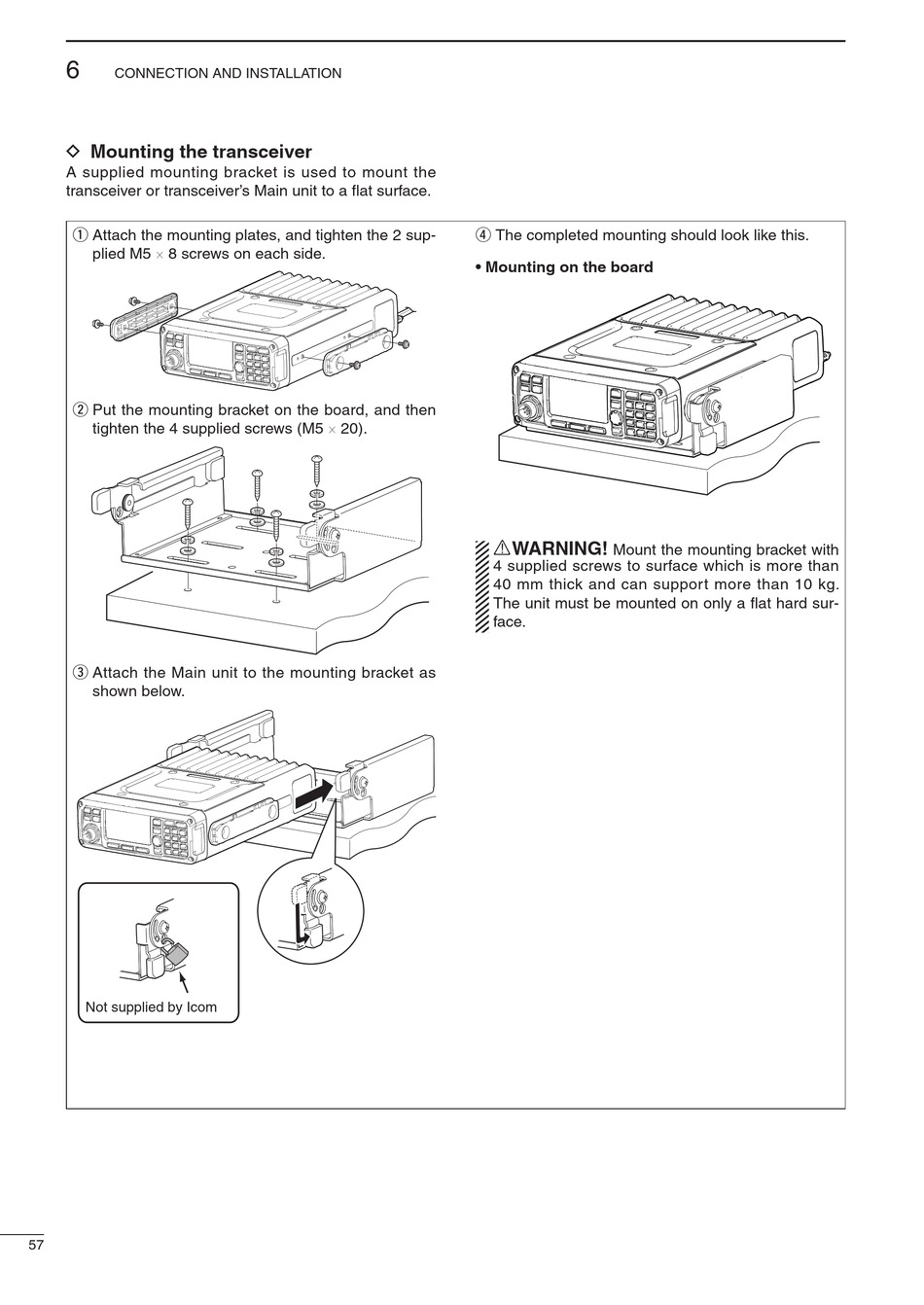

CONNECTION AND INSTALLATION

D Mounting the transceiver

A supplied mounting bracket is used to mount the
transceiver or transceiver's Main unit to a flat surface.
q Attach the mounting plates, and tighten the 2 sup-
plied M5 × 8 screws on each side.
w Put the mounting bracket on the board, and then
tighten the 4 supplied screws (M5 × 20).
e Attach the Main unit to the mounting bracket as
shown below.
Not supplied by Icom
57
r The completed mounting should look like this.
• Mounting on the board
RWARNING!
Mount the mounting bracket with
4 supplied screws to surface which is more than
40 mm thick and can support more than 10 kg.
The unit must be mounted on only a flat hard sur-
face.
