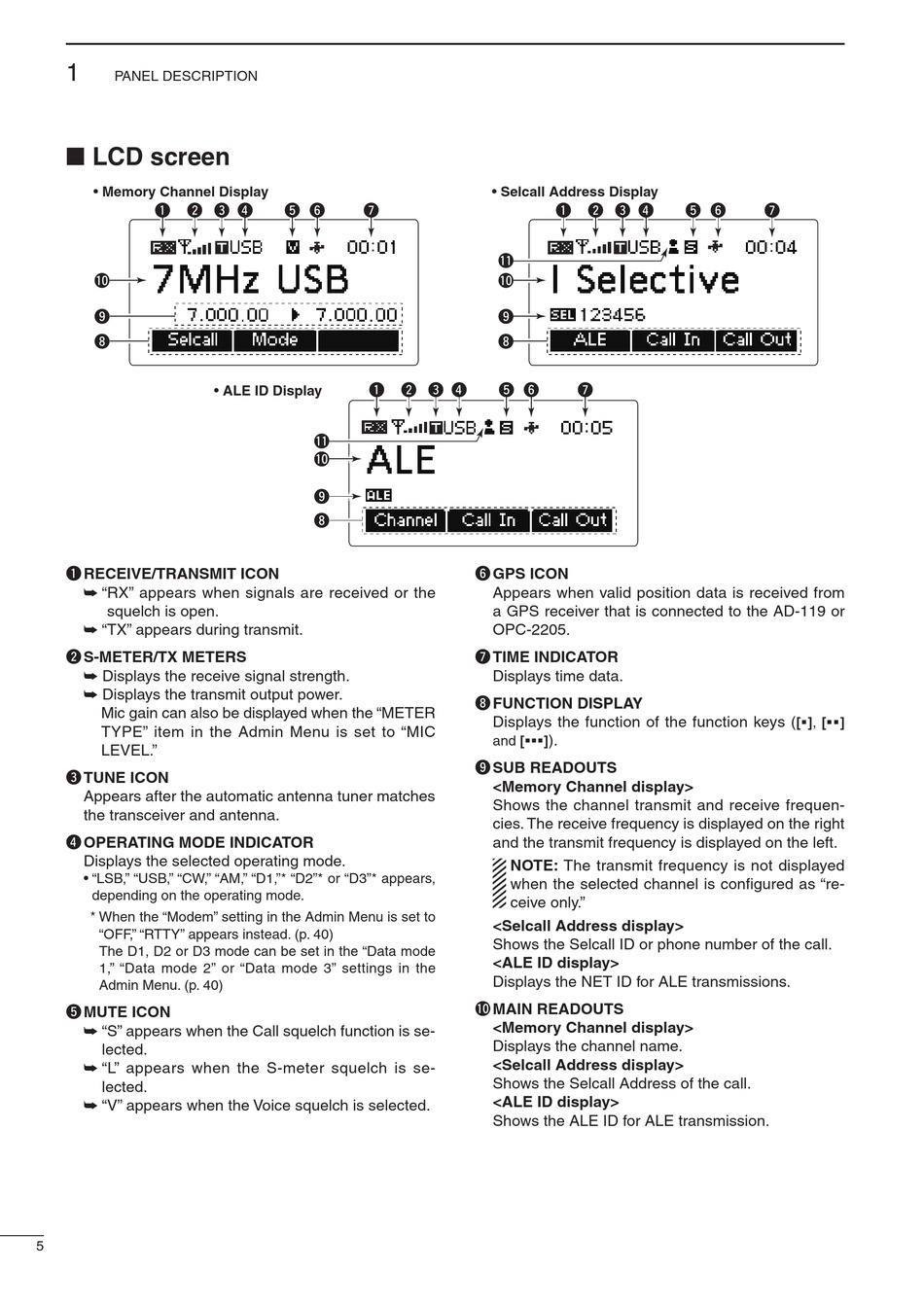

PANEL DESCRIPTION

■ LCD screen

• Memory Channel Display
q w
!0
o
i
q RECEIVE/TRANSMIT ICON
➥ " RX" appears when signals are received or the
squelch is open.
➥ " TX" appears during transmit.
w S-METER/TX METERS
➥ Displays the receive signal strength.
➥ Displays the transmit output power.
Mic gain can also be displayed when the "METER
TYPE" item in the Admin Menu is set to "MIC
LEVEL."
e TUNE ICON
Appears after the automatic antenna tuner matches
the transceiver and antenna.
r OPERATING MODE INDICATOR
Displays the selected operating mode.
• "LSB," "USB," "CW," "AM," "D1,"* "D2"* or "D3"* appears,
depending on the operating mode.
* When the "Modem" setting in the Admin Menu is set to
"OFF," "RTTY" appears instead. (p. 40)
The D1, D2 or D3 mode can be set in the "Data mode
1," "Data mode 2" or "Data mode 3" settings in the
Admin Menu. (p. 40)
t MUTE ICON
➥ "S" appears when the Call squelch function is se-
lected.
➥ "L" appears when the S-meter squelch is se-
lected.
➥ "V" appears when the Voice squelch is selected.
5
e r t y u
:
• ALE ID Display q
!1
!0
o
i
• Selcall Address Display
q
!1
!0
o
i
w e r t y
y GPS ICON
Appears when valid position data is received from
a GPS receiver that is connected to the AD-119 or
OPC-2205.
u TIME INDICATOR
Displays time data.
i FUNCTION DISPLAY
Displays the function of the function keys (
).
and [§§§]
o SUB READOUTS
<Memory Channel display>
Shows the channel transmit and receive frequen-
cies. The receive frequency is displayed on the right
and the transmit frequency is displayed on the left.
NOTE: The transmit frequency is not displayed
when the selected channel is configured as "re-
ceive only."
<Selcall Address display>
Shows the Selcall ID or phone number of the call.
<ALE ID display>
Displays the NET ID for ALE transmissions.
!0 MAIN READOUTS
<Memory Channel display>
Displays the channel name.
<Selcall Address display>
Shows the Selcall Address of the call.
<ALE ID display>
Shows the ALE ID for ALE transmission.
