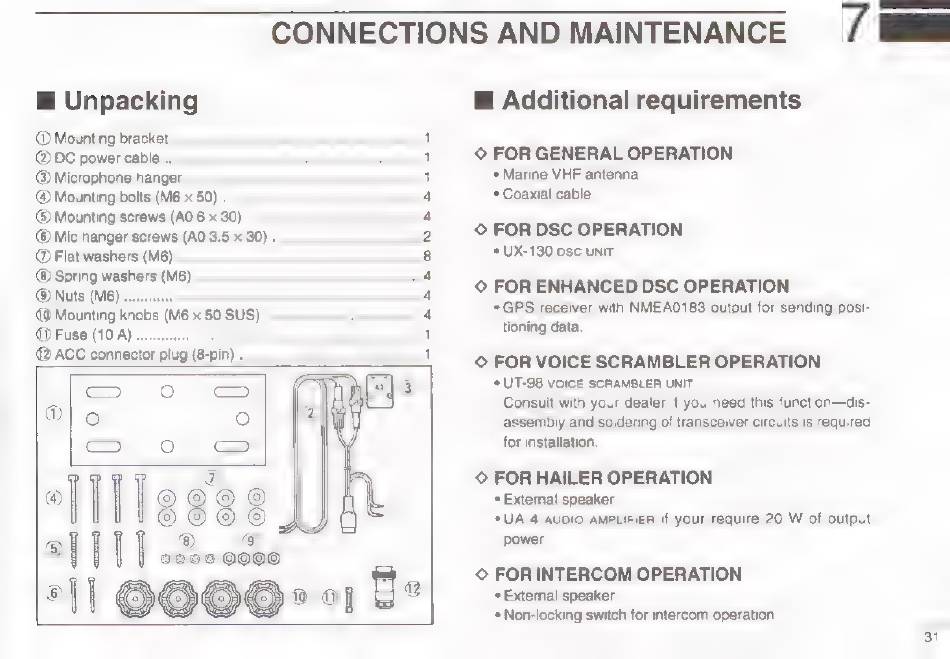

CONNECTIONS AND MAINTENANCE
@ Unpacking
@ Mounting bracket
@ DC power cable . .
@ Microphone hanger
@ Mounting bolts (M6 x 50) .
@® Mounting screws (AO 6 x 30)
@® Mic hanger screws (AO 3.5 x 30) . .
@ Flat washers (M6) ....
@® Spring washers (M6)
® Nuts (MB) ......csscee
( Mounting knobs (M6 x 50 SUS)
@) Fuse (10 A) «sss:
(2 ACC connector plug (8-pin) . .
B Additional requirements
© FOR GENERAL OPERATION
* Marine VHF antenna
* Coaxial cable
© FOR DSC OPERATION
* UX-130 psc UNIT
© FOR ENHANCED DSC OPERATION
*GPS receiver with NMEA0183 output for sending posi-
tioning data.
© FOR VOICE SCRAMBLER OPERATION
* UT-98 VoICE SCRAMBLER UNIT
Consult with your dealer if you need this function—dis-
assembly and soldering of transceiver circuits is required
for installation.
© FOR HAILER OPERATION
+ External speaker
*UA-4 auDIO AMPLIFIER if your require 20 W of output
power
© FOR INTERCOM OPERATION
* External speaker
* Non-locking switch for intercom operation
=
