Connections - Icom IC-M510BB Instruction Manual

11

CONNECTIONS

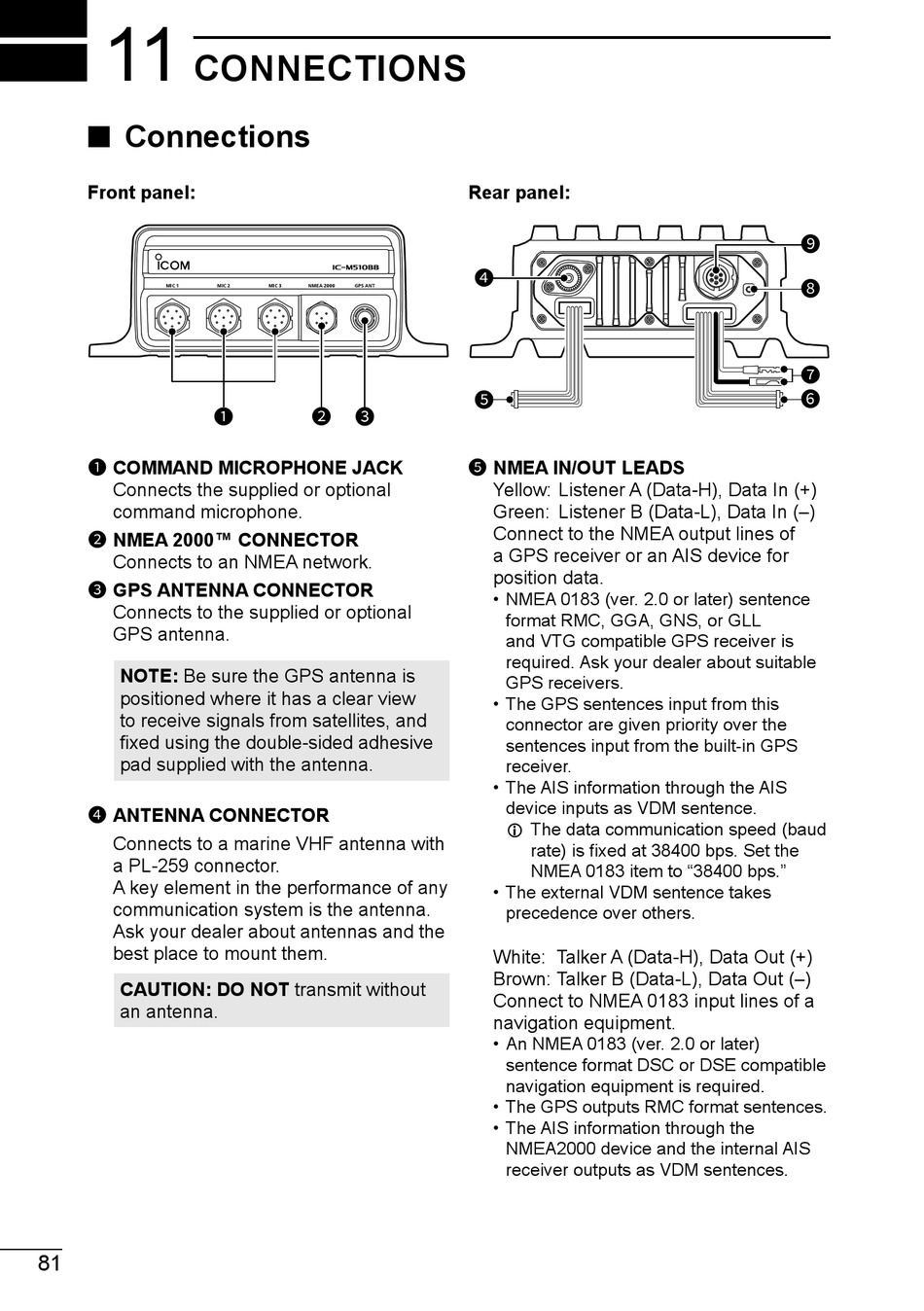

■ Connections
Front panel:
1 COMMAND MICROPHONE JACK
Connects the supplied or optional
command microphone.
2 NMEA 2000™ CONNECTOR
Connects to an NMEA network.
3 GPS ANTENNA CONNECTOR
Connects to the supplied or optional
GPS antenna.
NOTE: Be sure the GPS antenna is
positioned where it has a clear view
to receive signals from satellites, and
fixed using the double-sided adhesive
pad supplied with the antenna.
4 ANTENNA CONNECTOR
Connects to a marine VHF antenna with
a PL-259 connector.
A key element in the performance of any
communication system is the antenna.
Ask your dealer about antennas and the
best place to mount them.
CAUTION: DO NOT transmit without
an antenna.
81
1 2 3
Rear panel:
4
5
5 NMEA IN/OUT LEADS
Yellow: Listener A (Data-H), Data In (+)
Green: Listener B (Data-L), Data In (–)
Connect to the NMEA output lines of
a GPS receiver or an AIS device for
position data.
• NMEA 0183 (ver. 2.0 or later) sentence
format RMC, GGA, GNS, or GLL
and VTG compatible GPS receiver is
required. Ask your dealer about suitable
GPS receivers.
• The GPS sentences input from this
connector are given priority over the
sentences input from the built-in GPS
receiver.
• The AIS information through the AIS
device inputs as VDM sentence.
L The data communication speed (baud
rate) is fixed at 38400 bps. Set the
NMEA 0183 item to "38400 bps."
• The external VDM sentence takes
precedence over others.
White: Talker A (Data-H), Data Out (+)
Brown: Talker B (Data-L), Data Out (–)
Connect to NMEA 0183 input lines of a
navigation equipment.
• An NMEA 0183 (ver. 2.0 or later)
sentence format DSC or DSE compatible
navigation equipment is required.
• The GPS outputs RMC format sentences.
• The AIS information through the
NMEA2000 device and the internal AIS
receiver outputs as VDM sentences.
9
8
7
6
