Rear Panel - Icom IC-F8100 Instruction Manual

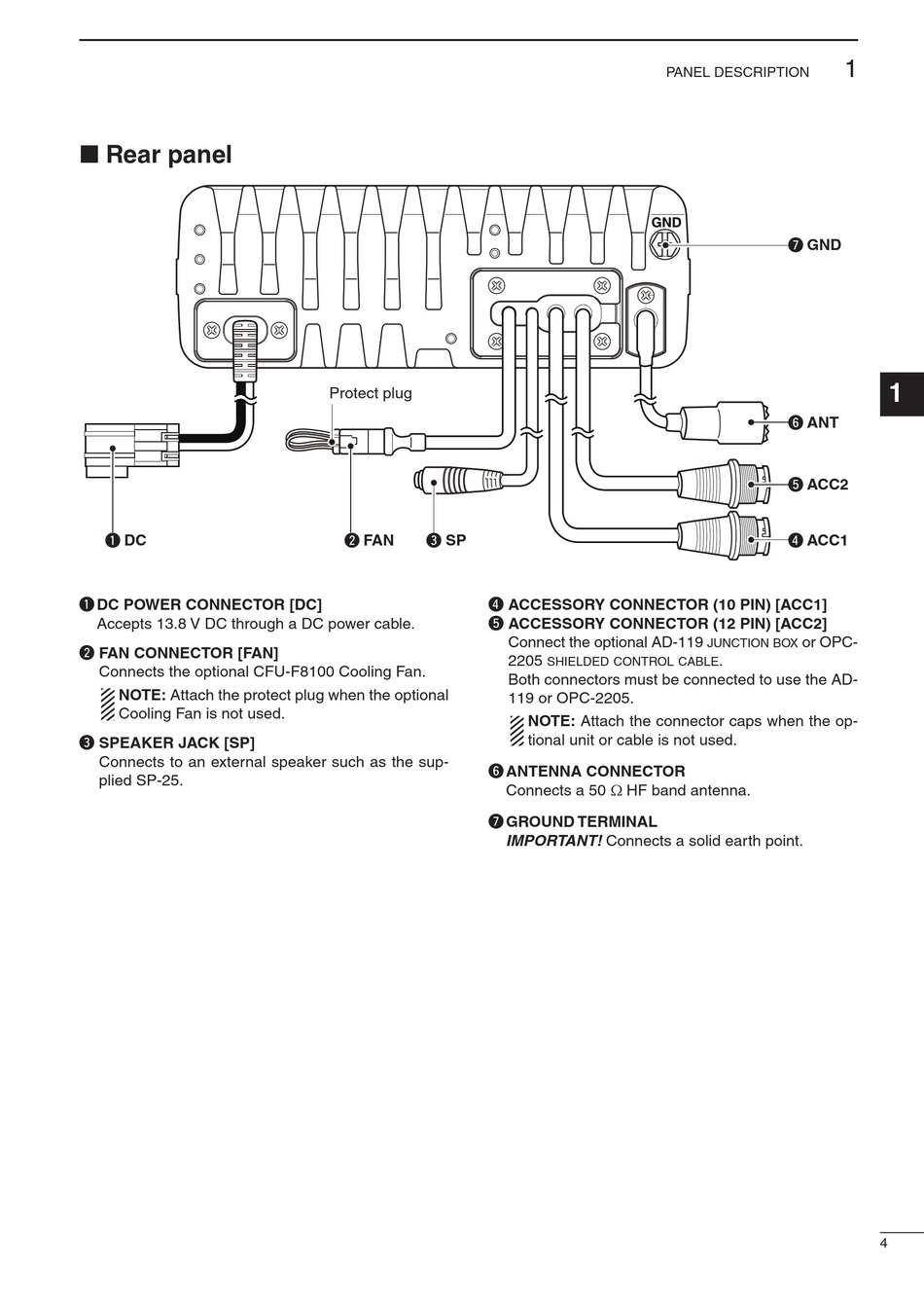

■ Rear panel

DC
q
q DC POWER CONNECTOR [DC]
Accepts 13.8 V DC through a DC power cable.
w FAN CONNECTOR [FAN]
Connects the optional CFU-F8100 Cooling Fan.
NOTE: Attach the protect plug when the optional
Cooling Fan is not used.
e SPEAKER JACK [SP]
Connects to an external speaker such as the sup-
plied SP-25.
Protect plug
FAN SP
w e
r ACCESSORY CONNECTOR (10 PIN) [ACC1]
t ACCESSORY CONNECTOR (12 PIN) [ACC2]
y ANTENNA CONNECTOR
u GROUND TERMINAL
PANEL DESCRIPTION
Connect the optional AD-119
2205
shielded control cable
Both connectors must be connected to use the AD-
119 or OPC-2205.
NOTE: Attach the connector caps when the op-
tional unit or cable is not used.
Connects a 50 Ω HF band antenna.
IMPORTANT! Connects a solid earth point.
1
GND
u
ANT
y
ACC2
t
ACC1
r
or OPC-
junction box
.
