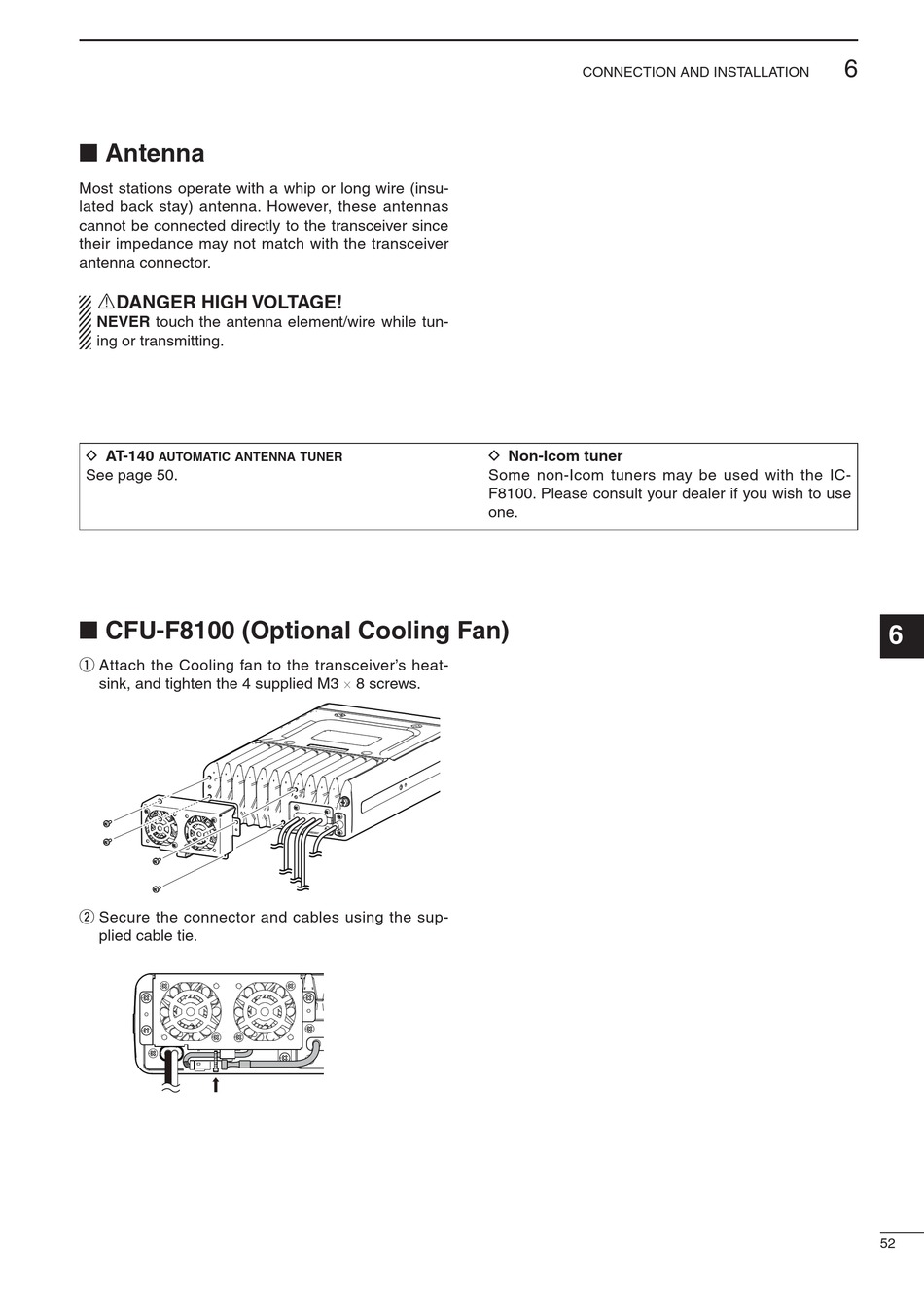

■ Antenna

Most stations operate with a whip or long wire (insu-

lated back stay) antenna. However, these antennas

cannot be connected directly to the transceiver since

their impedance may not match with the transceiver

antenna connector.

RDANGER HIGH VOLTAGE!

NEVER touch the antenna element/wire while tun-

ing or transmitting.

D AT-140

automatic antenna tuner

See page 50.

q Attach the Cooling fan to the transceiver's heat-

sink, and tighten the 4 supplied M3 × 8 screws.

w Secure the connector and cables using the sup-

plied cable tie.

CONNECTION AND INSTALLATION

D Non-Icom tuner

Some non-Icom tuners may be used with the IC-

F8100. Please consult your dealer if you wish to use

one.
