CYBEX TROTTER Owner's Service Manual page 96

B. Using a Phillips head screwdriver, remove the three screws that hold the bottom back
cover to the console front.
C. Gently pull off the console backs. NOTE: The bottom back will have delicate wires
attached to it. Do not apply pressure to it.
3. Remove the display board.
A. Disconnect these cables from the display board: the display cable (2 connectors), the
two upper switch membranes, the lower switch membrane, the contact heart rate

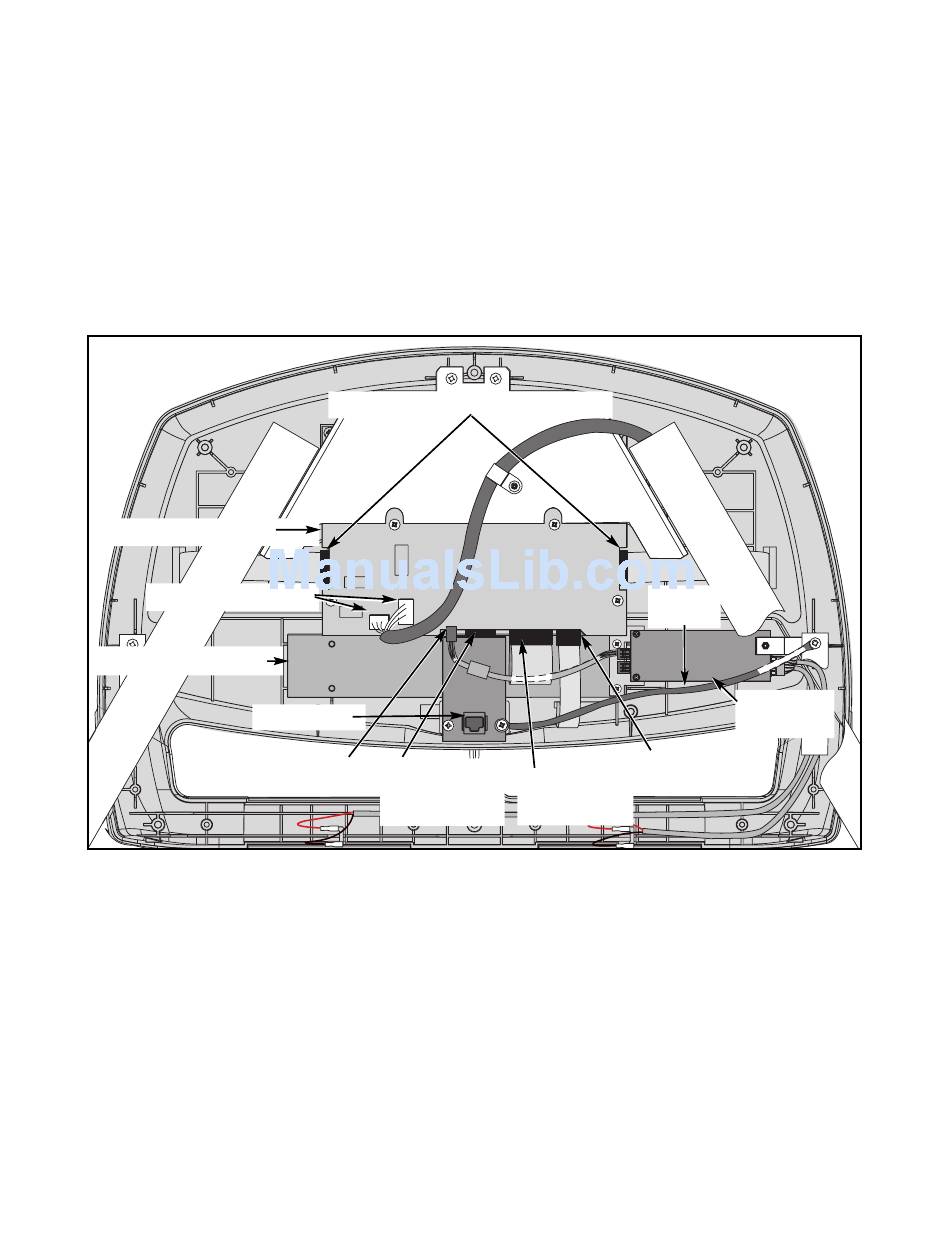

cable and the upper to lower board jumper. See Figure 24.
Upper Display Board
Display Cable Ports
Lower Display Board
Figure 24
B. Using a Phillips head screwdriver, remove the four Phillips head screws that hold the
display board to the console.
C. Gently pull the display board up to disconnect it from the CSAFE board.
4. Attach the display board.
A. Place the display board in position and gently push the display board down into the
CSAFE board connector.
B. Using a Phillips head screwdriver, secure the four screws that hold the display board
to the console.
Service
Page 7-30
Cybex TROTTER Elite Treadmill Owner's & Service Manual
Upper Switch Membrane Ports
RJ-45 Port
Contact Heart
CSAFE Board
Rate Port
Connects to
Display Board
CSAFE
Jumper
Lower Switch
Upper to
Membrane
Lower Board
Jumper
Heart Rate
Board
