4. Adjust the speed sensor gap (if needed).
A. Using a Phillips head screwdriver, loosen the screw that attaches the speed sensor to
the motor saddle. See Figure 3 (speed sensor screw).
B. Adjust the gap between the speed sensor and the flywheel to 3/16" (.48 cm) and
tighten the screw. See Figure 3.
Flywheel

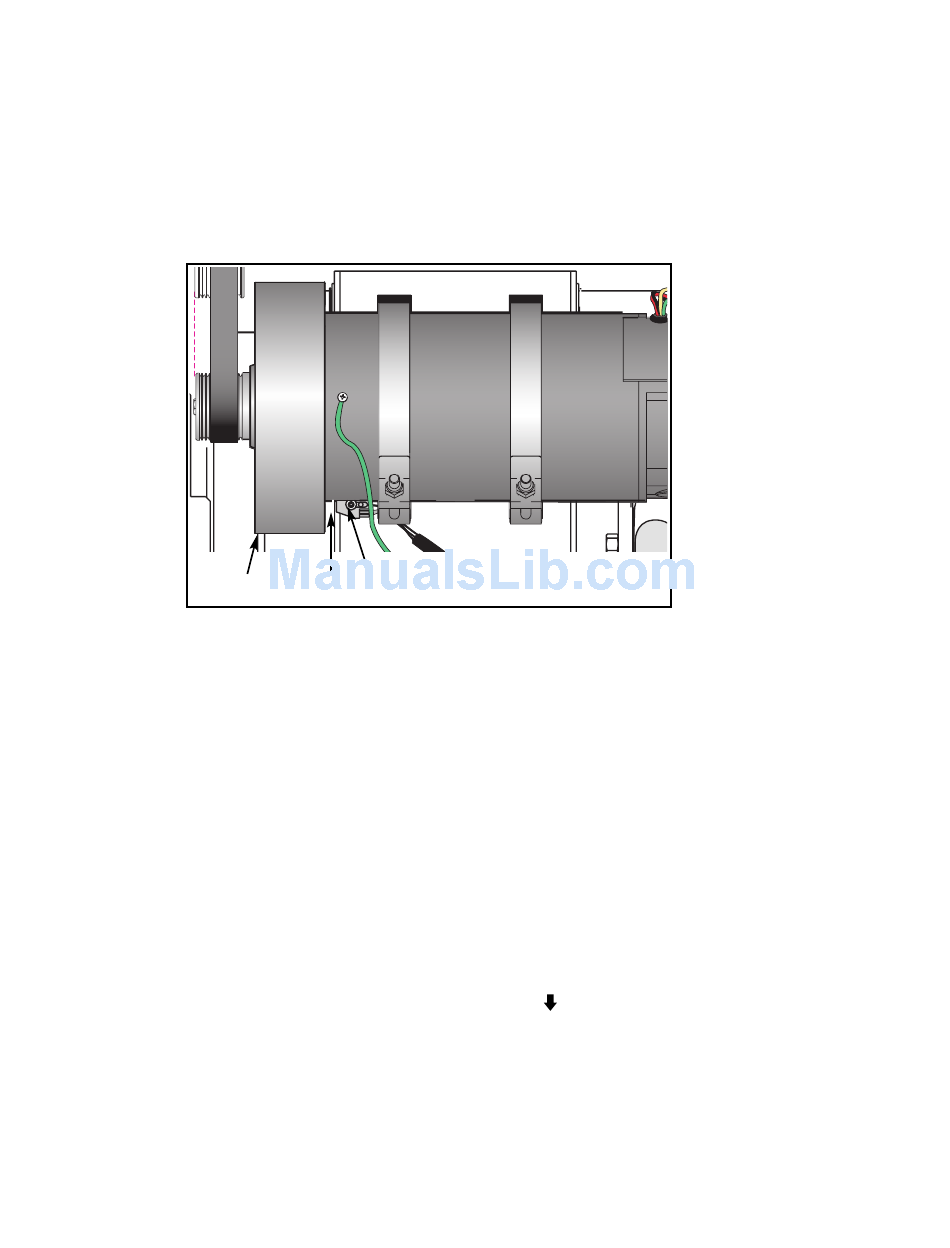

Figure 3
5. Test for speed errors.
A. Connect the power cord to a power outlet.
B. Enter Test Mode.
C. Bring the speed of the treadmill up to maximum speed, 10 mph (16 kph).
D. After reaching maximum speed take note of the actual speed that is displayed in the
lower left window. If it fluctuates in over 0.5 mph increments then your speed sensor
gap needs to be readjusted.
E. Press Stop and turn the power switch to the off (O) position.
F. Enter Test Mode again and check the error log for Error 3. If any new errors occurred,
readjust the speed sensor and test again. NOTE: If you are unsure whether an error is
new you can clear the error log by pressing the
through 5F.
G. Exit Test Mode by pressing Stop.
6. Attach the motor cover.
A. Lower the motor cover center into position. See Figure 2.
B. Using a Phillips head screwdriver, tighten the three screws on each side.
Gap
Speed Sensor Screw
key and then repeat steps 4A
Service
Page 7-7
