CYBEX 750T Addendum

Hide thumbs Also See for 750T:
Table of Contents

Advertisement

Quick Links

Download this manual
Cybex
®
and the Cybex logo are registered trademarks of Cybex International, Inc.
Polar
®
is a registered trademark of Polar Electro Inc.
®
iPOD
is a registered trademark of Apple Inc.
DISCLAIMER:
Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve
the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify
any person of such revisions or changes.
© 2009, Cybex International, Inc. All rights reserved. Printed in United States of America.
10 Trotter Drive Medway, MA 02053 • 888-462-9239 • 508-533-4300 • FAX 508-533-5183
www.cybexinternational.com • techhelp@cybexintl.com • LT-22244-4 A • May 2009

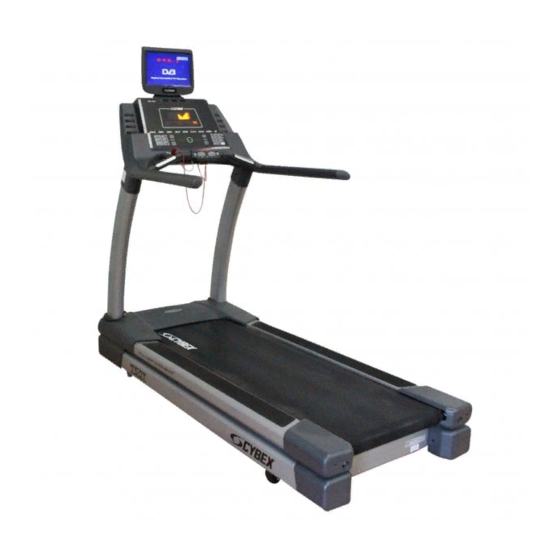

Cybex 750T Treadmill
Product Number 751T
Total Access (TA) Addendum
Cardiovascular Systems
Part Number LT-22244-4 A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750T and is the answer not in the manual?

Questions and answers

Related Manuals for CYBEX 750T

Summary of Contents for CYBEX 750T

  • Page 1 DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

  • Page 2: About This Addendum

    This addendum is for Total Access (TA) units only. It describes the differences between the standard 750T treadmill and the TA 750T treadmill. For Total Access units, refer to this addendum and the 750T treadmill Owner’s Manual, part number LT-20406-4.

  • Page 4: Operation

    Dormant Mode — This occurs when the treadmill is powered up and not in use. NOTE: Dormant Mode may display a clock, scrolling text or the Cybex logo if such options are chosen. Wake-up Mode — This occurs when motion is detected or a key is pressed. A tone will be heard.
  • Page 5 Cybex 750T Treadmill Total Access (TA) Addendum Quick Operation Guide NOTE: Maximum user weight is 400 lbs. (181 kg). The following is a quick overview of the operation of the treadmill. For more information read Detailed Operation Guide in this chapter.
  • Page 6 Cybex 750T Treadmill Total Access (TA) Addendum 4. Clip the e-stop clip onto your clothing and carefully test the e-stop key to ensure it will activate in case of an emergency. See Emergency Stop Key (e-stop) in Chapter 1 for properly testing the e-stop key.
  • Page 7 Cybex 750T Treadmill Total Access (TA) Addendum NOTE: When selecting a program you must press Enter after each adjustment of Time, Level and Weight. 6. The treadmill begins a countdown, “BELT START IN 3...2...1,” and sounds a tone for each count.

  • Page 8: Stopping The Treadmill

    Cybex 750T Treadmill Total Access (TA) Addendum Stopping the Treadmill Press Stop once to end the workout session and start the Workout Review. The treadmill will perform a controlled belt stop and bring the incline to 0%. The Text Area will be displaying accumulated data or the results of the Fitness Test for the duration confi...

  • Page 9: Control During Operation

    Cybex 750T Treadmill Total Access (TA) Addendum Control During Operation Control keys are usable during operation and may be pressed at any time to make adjustments in speed, elevation or data readouts. The Speed and Incline keys are located near the hand grips, allowing for thumb adjustments without removing your hands from the hand grips.

  • Page 10: Displaying Heart Rate

    Cybex 750T Treadmill Total Access (TA) Addendum Displaying Heart Rate In order for the Cybex 751T to display your heart rate, hold the hand grips to use Contact Heart rate or wear a Polar ® compatible heart rate chest strap.

  • Page 11: Heart Rate Zone

    Cybex 750T Treadmill Total Access (TA) Addendum Heart Rate Zone Heart rate is described by the number of times your heart beats in a minute. At rest, the average adult will have a heart rate of about 72 beats per minute (BPM). As one begins to exercise, heart rate increases and continues to increase as exercise intensity or diffi...

  • Page 12: Preprogrammed Workouts

    With the 750T, you may choose from Quick Start Manual Mode, nine program choices, eight fi tness tests, and nine custom programs. Each routine will be described in detail in this chapter.

  • Page 13: Program Overview

    Programs The programs used in the 750T Treadmill (with the exception of Heart Rate Control, Gerkin Protocol (FT1) and potential custom programs), are all incline driven programs where the user has complete control of their speed throughout the entire session.
  • Page 14 Cybex 750T Treadmill Total Access (TA) Addendum A built in fan is located at the top center of the console to help keep you cool during your workout. Default speed is Off during active mode. Press the Fan Hi or Fan Lo key to control fan speed. Press the Fan Off key to turn fan off.
  • Page 15 Cybex 750T Treadmill Total Access (TA) Addendum Audio Visual (AV) Key Pad – Optional Figure 6 Console Key Description If an Electronic Program Guide (EPG) is available, this will be displayed on < > the TV. Use the CHANNEL Λ V and VOLUME keys to navigate in the EPG, Enter to accept any selections.

  • Page 16: Assembly And Setup

    Cybex 750T Treadmill Total Access (TA) Addendum 5 - Assembly and Setup Setup NOTE: Setup mode is accessed using the keys on a standard membrane. The keys are different on the TA membrane. See Figure 1. The standard keys are not visable but still active for setup mode. A template is provided to locate the key locations of a standard membrane.
  • Page 17 60 Hz to 50 Hz for the proper elevation frequency. Clock Style (HH:MM / MM:DD:YY or DD:MM:YY): The 750T features a clock and calendar. The clock can be displayed in a 12 or 24 hour format. The calendar date fomat can be displayed as Month-Day–Year (US) or Day–Month–Year (EU).
  • Page 18 Cybex 750T Treadmill Total Access (TA) Addendum Max Incline (MAX INCLINE): This is the maximum elevation the treadmill will incline. Choices are between 0 and 15 percent grade. NOTE: Setting both the Min and Max incline to 0 percent will disable the elevation.
  • Page 19 Cybex 750T Treadmill Total Access (TA) Addendum This page intentionally left blank. Assembly and Setup Page 5-4...

  • Page 20: Customer Service

    Cybex 750T Treadmill Total Access (TA) Addendum 6 - Customer Service Parts List ITEM QTY. PART NO. DESCRIPTION DE-21936-4 MASK, 751T, ENUNCIATOR, IFI, ENG SW-21893-4 MEMBRANE, 751T, BTM, ENG, IFI AX-20552* ASSY, E-STOP KEY BD-20691 BELT, RUNNING, IFI, 21.88 x 61.75”...
  • Page 21 Cybex 750T Treadmill Total Access (TA) Addendum This page intentionally left blank Customer Service Page 6-2...
  • Page 22 Cut along dotted line Align Template To Edge Keypad Template Cut along dotted line 750T Treadmill Align Template To Edge...
