11. Attach the motor cover (three pieces).
A. Using a Phillips head screwdriver, partially tighten each motor cover side (left and right)

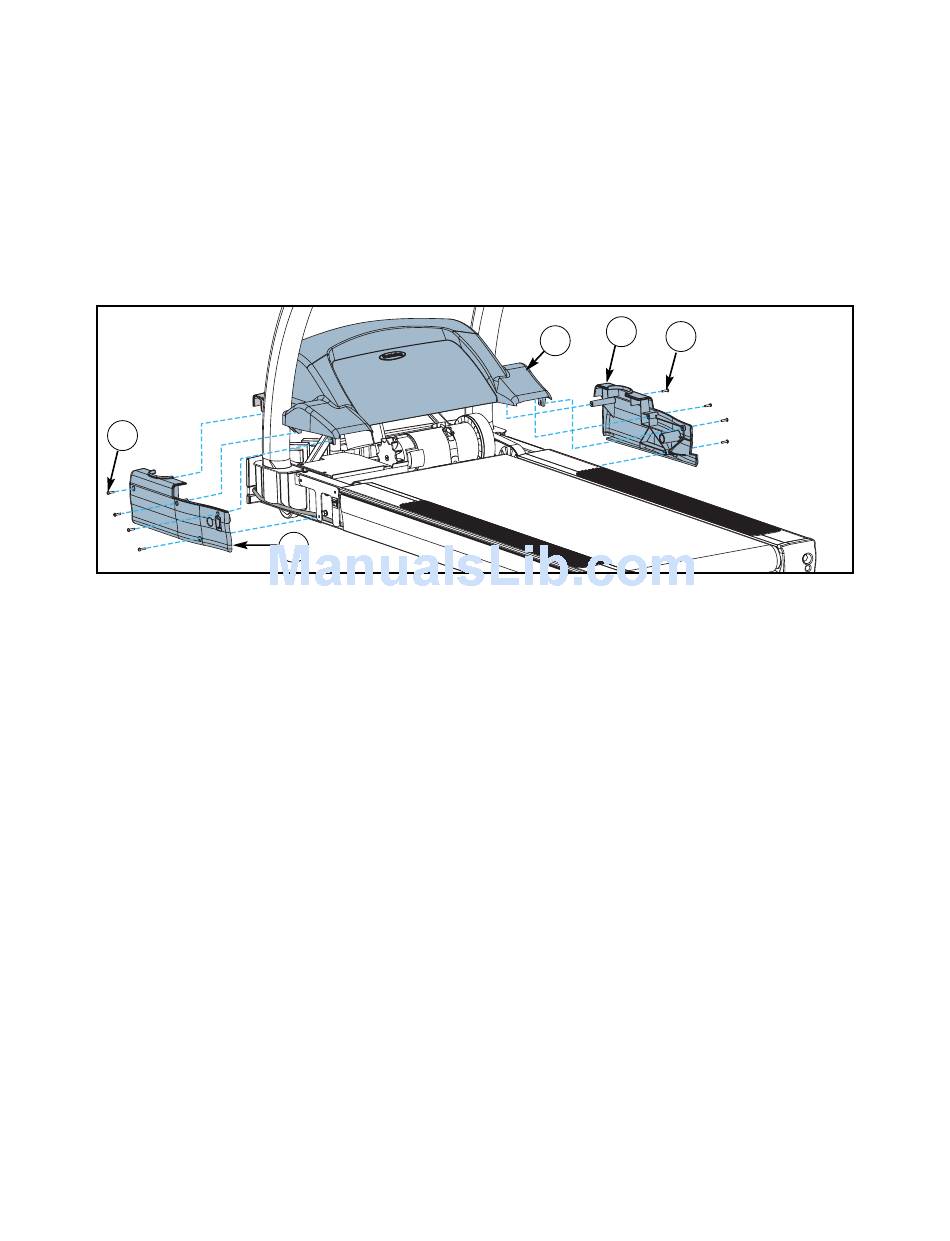

with four 10-32 x .75 Phillips head screws. See Figure 13.
B. Place the motor cover center into position. See Figure 13.
C. Using a Phillips head screwdriver, finish tightening all eight screws. Be sure the screws
are catching the motor cover's holes.
4
Figure 13
12. Level your treadmill.
A. Confirm that your treadmill is on a level surface.
13. Attach emergency stop key.
A. Confirm that the emergency stop key is in place over the e-stop button. See Figure 14.
NOTE: The treadmill will not run without the key (or other metal) in place.
14. Visually inspect the treadmill.
A. Carefully examine the treadmill to ensure that the assembly is correct and complete.
7
6
4
5
Setup
&
Assembly
Page 5-9
