Front Roller - CYBEX TROTTER Owner's Service Manual

7. Loosen the deck.
A. Using a 7/16" open-end or socket wrench, remove the ten screws and ten washers
that hold the deck in place. See Figure 7. NOTE: Leave the deck in place until step 9B.

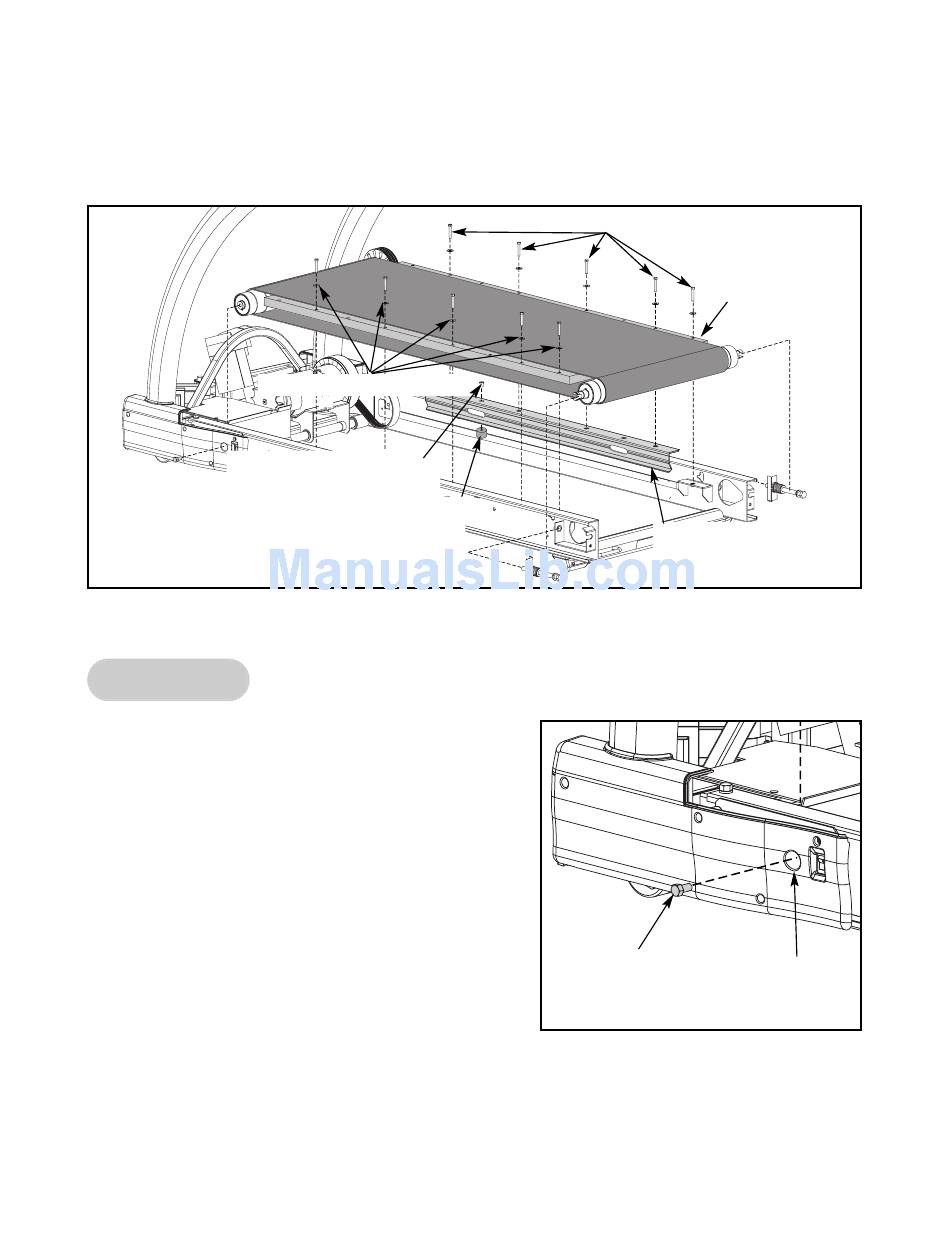

Figure 7

Front Roller

8. Loosen the front roller.
A. Place a 9/16" socket wrench with a 3"
extension in the right front roller access hole.
Loosen but do not remove the right front roller
screw. See Figure 8. NOTE: The right screw
will stay on the front roller. You do not need to
remove it for this procedure.
B. Place a 9/16" socket wrench with a 3"
extension in the left front roller access hole.
Remove the left front roller screw. See Figure 8.
NOTE: Leave the front roller in place until
step 9C.
9. Remove the running deck and running belt.
A. If rotating or flipping the deck, make a note on
the deck so you know which way it was positioned.
Service
Page 7-12
Cybex TROTTER Elite Treadmill Owner's & Service Manual
Washers (5 on Each Side)
Screw Securing Deck
Stiffener (1 on Each Side)
Rubber Mount
(1 on Each Side)
Screws (5 on Each Side)
Deck Stiffener
(1 on Each Side)
Screw
Figure 8
Deck
Front Roller
Access Hole
