motor cover of each Cybex Trotter Elite treadmill. By performing these procedures you can
evaluate the performance of your drive motor and help prevent premature failure.
Tools Required
• Phillips head screwdriver
• Voltage meter
1. Measure current draw.
A. Enter Test Mode by holding down any key on the display while turning the power
switch to the on (I) position.
B. Press the Quick Start key. The belt will move at 1 mph (1.6 kph).
C. Without standing on the belt, bring the speed of the treadmill up to 3 mph (4.8 kph)
and take note of the load value in the top center display.
D. Have a second person walk on the belt at 3 mph (4.8 kph) and take note of the load
value in the top center display and the weight of the person. NOTE: Call Cybex
Customer Service to confirm that the load is within acceptable range. Loads over 200
are generally unacceptable.
E. Press Stop to exit Test Mode.
2. Disconnect the external power source.
A. Turn the main power switch on the left side to the off (O) position.
B. Unplug the treadmill from the power outlet.
3. Remove the motor cover.
A. Using a Phillips head screwdriver,
loosen three screws on each motor
cover side (left and right). See Figure 2.
B. Lift the motor cover center up and off
the treadmill. The screws will stay in
place.
4. Check the belt and deck condition.
A. Follow the Checking Belt and Deck
Surfaces procedure on page 4-4 of the
Preventive Maintenance chapter of this
manual and then proceed with step 5.

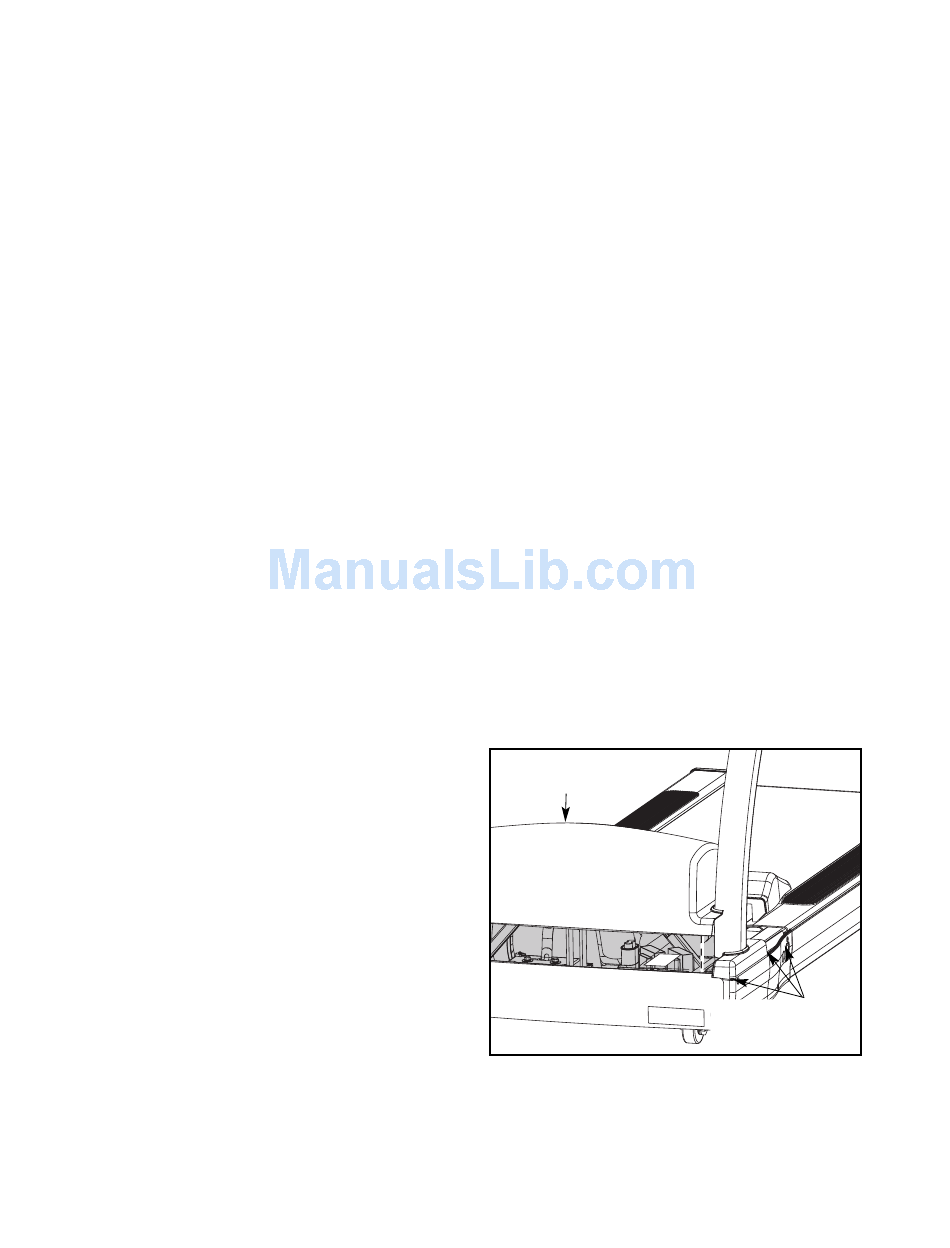

Motor
Cover
Figure 2
Screws
(3 on each side)
