Cybex TROTTER Elite Treadmill Owner's & Service Manual
CSAFE Board
6. Remove the CSAFE board.
A. Using a Phillips head screwdriver, remove the two screws that hold the CSAFE board
and jumper to the console.
B. Gently pull the CSAFE board down and out of the display board. See Figure 27.
7. Attach the new CSAFE board.
A. Gently push the CSAFE board
into its connector on the display
board. See Figure 27.
B. Place the jumper terminal over a
hole on the CSAFE board.
C. Using a Phillips head
screwdriver, secure the CSAFE
board and jumper with the two
screws removed during step 6A.
NOTE: Do not overtighten.
8. Attach the console front and lower back.
A. Place the starwasher next to the handrail bracket metal and hold the jumper terminal
on top. See Figure 25.
B. Place one of the nine Phillips head screws removed in step 4B through the terminal,
starwasher, handrail bracket and heart rate bracket and secure it tightly. See Figure 25.
C. Using a Phillips head screwdriver, secure the console front to the handrail with other
eight black screws removed during step 4B.
D. While being sure not to pinch any cables, use a Phillips head screwdriver to secure the
lower console back to the handrail with three screws removed during step 4A.
9. Connect the cables removed in step 3A.
A. Connect these cables into the display board: the display cable (2 connectors); the two
upper switch membranes; the lower switch membrane; the contact heart rate cable
and the upper to lower board jumper. See Figure 24.
10. Secure the console back.
A. While being sure not to pinch any cables, use a Phillips head screwdriver to secure the
five screws that hold the top console back to the console front.
11. Connect the external power source.
A. Plug the treadmill into the power outlet.
12. Calibrate speed.
A. Follow the Speed Calibration procedure located in this chapter.

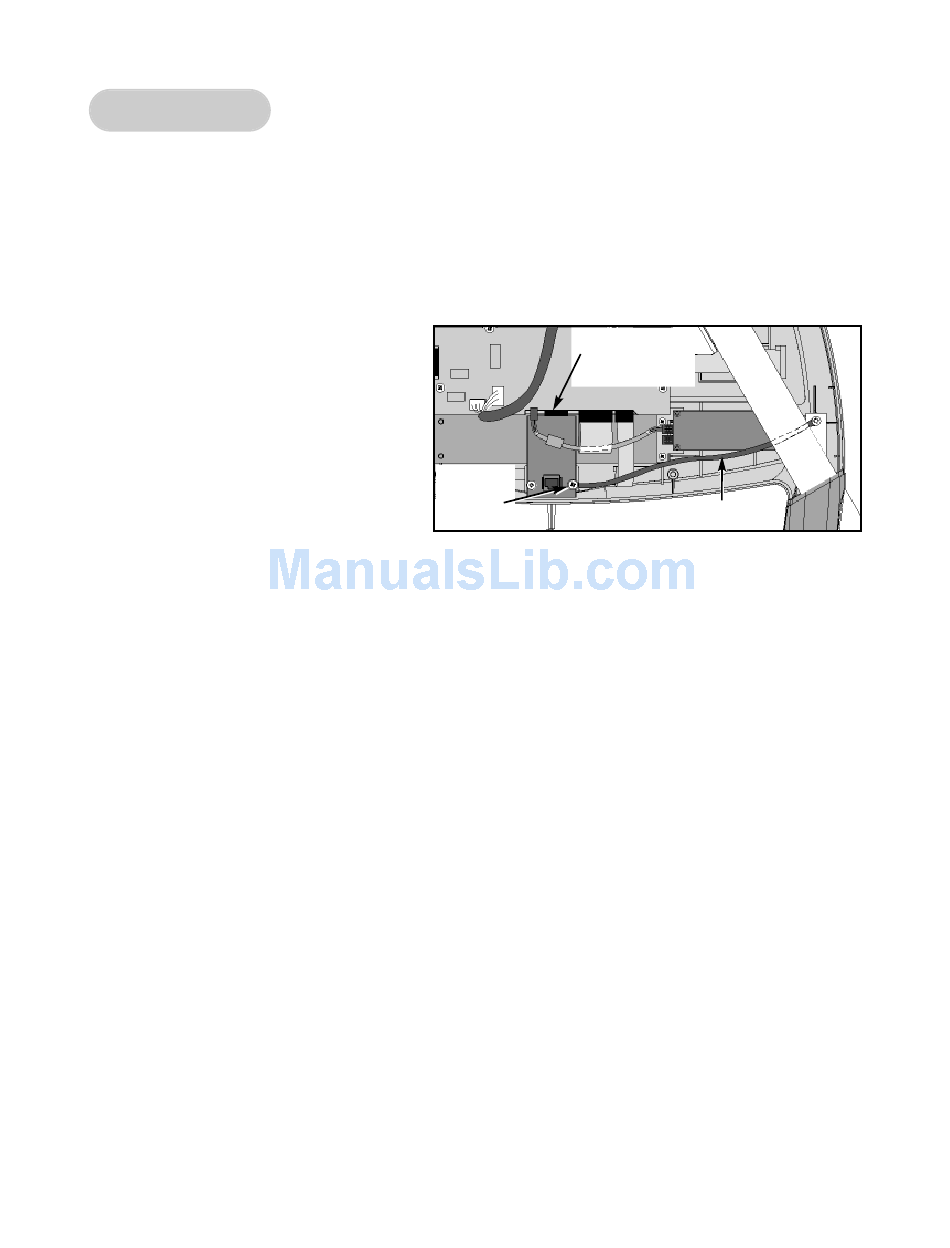

CSAFE Board
Connects to
Display Board
Screw on
CSAFE
Board
Figure 27
Jumper
Page 7-33
