CYBEX Pro+ Service Manual

! WARNING: All maintenance activities shall be performed by qualifi ed personnel.
For any service related concerns, call Cybex
Customer Service at 888-462-9239 (for Cybex
customers living within the USA). For customers
living outside the USA, call 508-533-4300 or fax
508-533-5183.
NOTE: Read and understand each procedure
thoroughly before servicing. Unless
otherwise noted "right" and "left" denote
user orientation for all procedures.

Test Mode

To enter Test Mode press and hold down any key
on the display while turning the power switch to the
on (I) position. When all keys are released "PRO"
and the software revision "rx.x" are shown on the
display. To exit Test Mode press Stop.

Stuck Key List

If Test Mode occurs without holding any keys, a key may be stuck closed or Error 7 may have occurred.

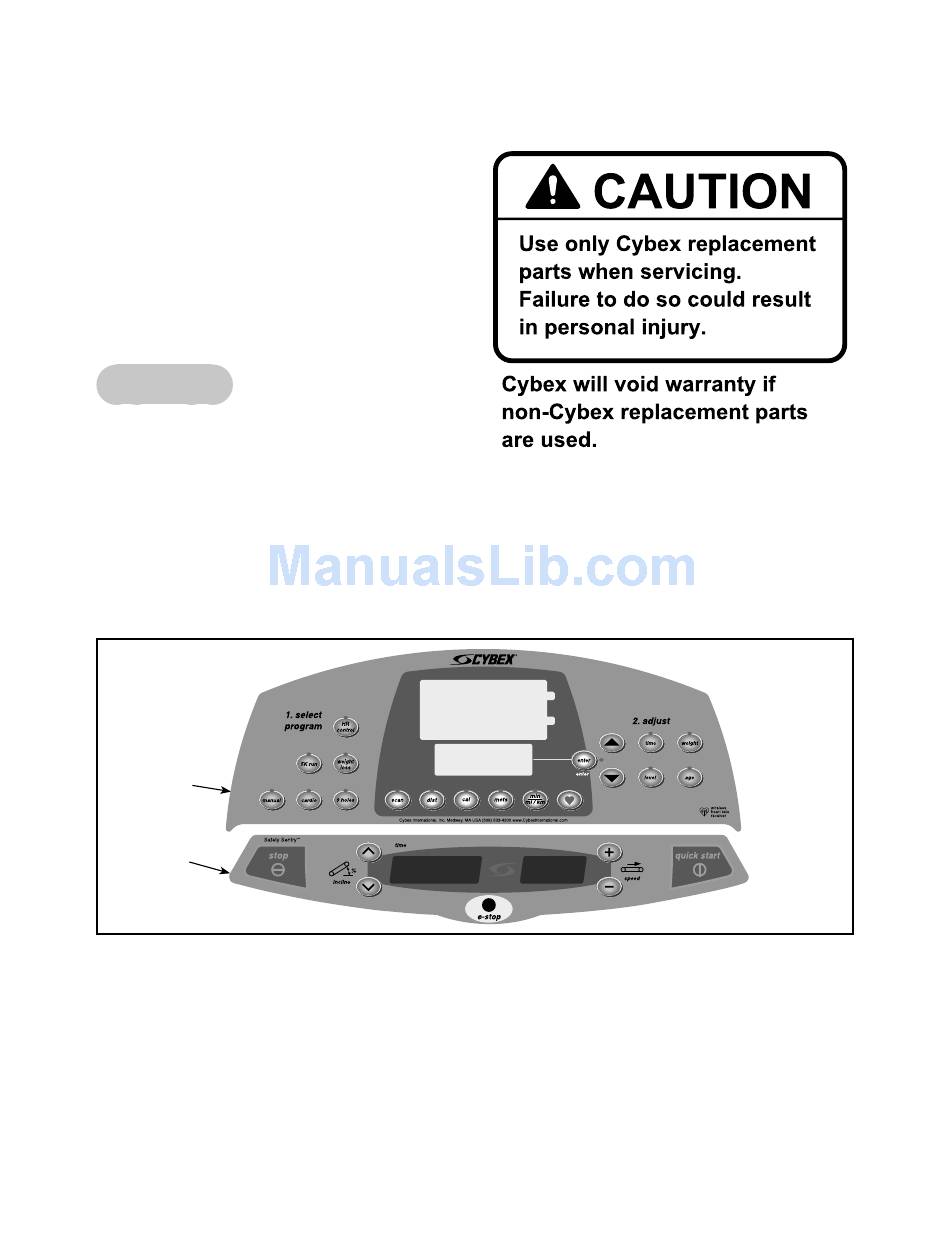

You may need to replace the upper and/or lower display overlay. See Figure 1. If "KEY#" is displayed you
can determine which key is stuck closed by referring to the number list below.
Upper
Overlay
Lower
Overlay
Figure 1
1 Stop
2 Incline Down
3 Speed Down
4 Weight
5 Distance
Service
Page 4-2
Cybex Pro+ Treadmill Service Manual
Failure to do so could result in serious injury.
7 Heart Rate
8 Manual Up
9 Incline
10 Speed Up
11 Quick Start
12 Center Up 17
13 9 Holes 18
14 Level 19
15 Mets 20
16 5K 21
Enter 22 Time
Cardio 23 Scan
Center Down 24 Age
Calories 25 Min Mi/Km
HR Control 26 Weight Loss
