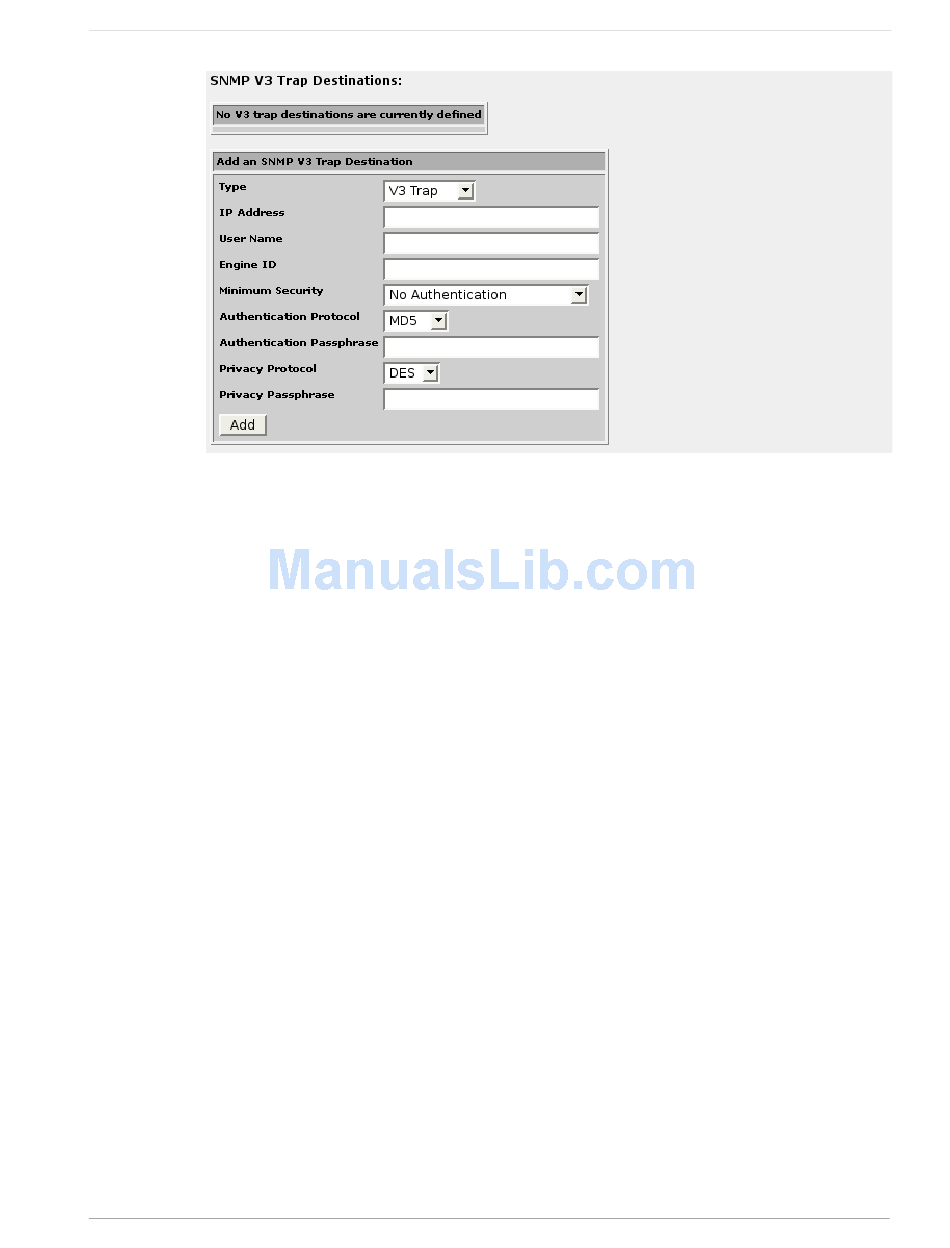

Figure 252: Trap Destinations V3 - RuggedCom RuggedRouter RX1000 User Manual

®
RuggedRouter User Guide

Figure 252: Trap Destinations V3

The SNMP V3 Trap Destinations part of the menu allows the creation and deletion
of V3 trap destinations.
The Type field specifies the exchange used with this destination, either V3 trap or V3
inform.
The IP address and Trap Community fields specifies the receivers IP address and
user name.
The Engine ID parameter is necessary for inform type notification destinations only,
and must be configured by the trap receiver in order to receive these notifications.
The Minimum Security, Authentication Protocol, Authentication Passphrase,
Privacy Protocol and Privacy Passphrase fields are as described above.
278 RuggedCom
