RuggedRouter User Guide

Configuring Traffic Prioritization

Note
not enable both of these features at once.

Traffic Prioritization Main Menu

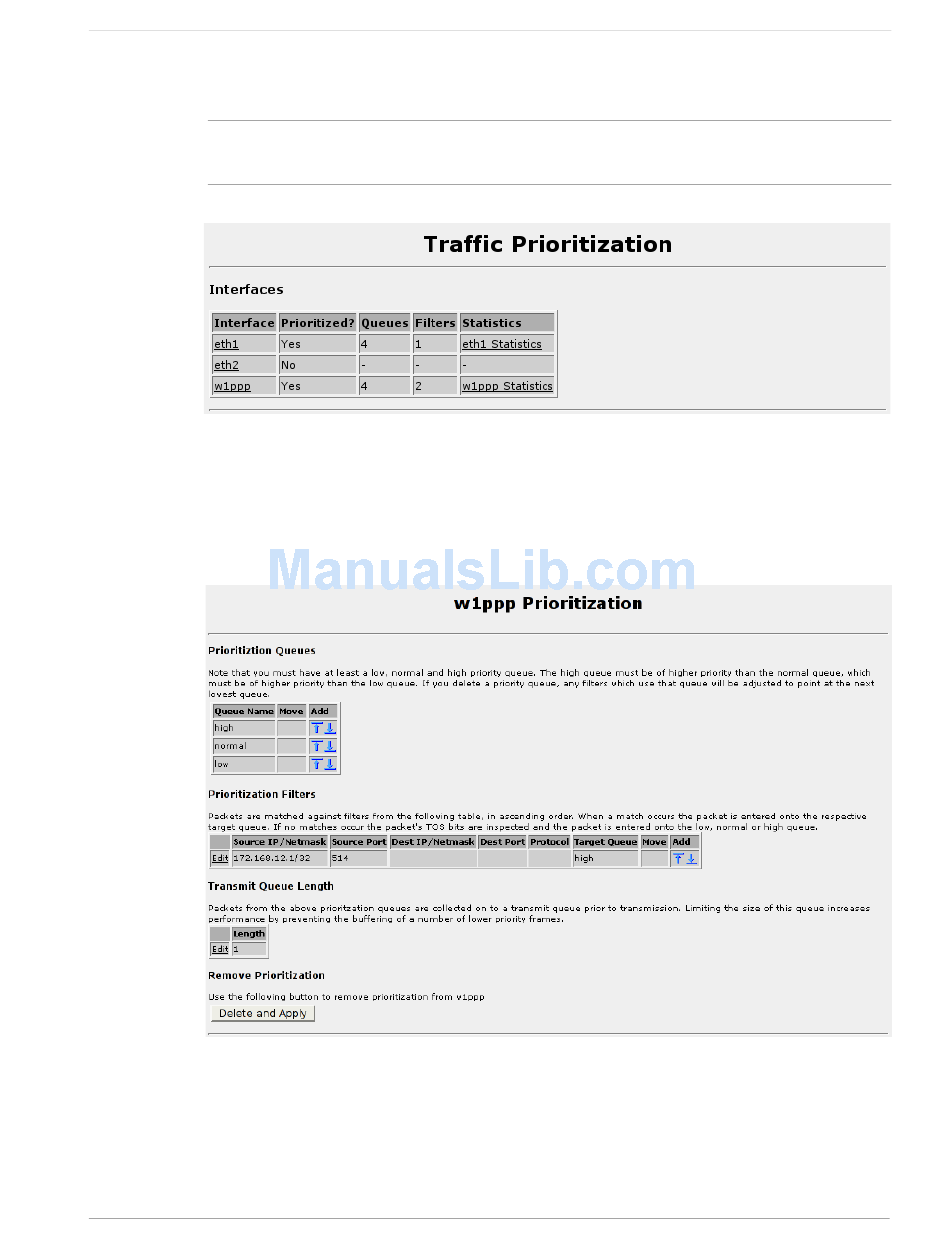

Figure 158: Traffic Prioritization Main Menu

This menu displays network interfaces for which prioritization may be activated.
Prioritization may be configured by following the Interface column link. The
statistics of prioritized interfaces may be viewed by following the links in the
Statistics column.

Interface Prioritization Menu

Figure 159: Interface Prioritization Menu

This menu allows you to add, delete and configure queues and filters. Add a new
queue or filter by by clicking on the add-above or add-below arrows in the Add field.
You may also edit a manually created queue by following its link under the Queue
Name column, and edit a filter by following it's "Edit" link.
186
Traffic Prioritization is mutually exclusive of Traffic Control. Do
RuggedCom
