RuggedRouter User Guide

Archive Difference Tool

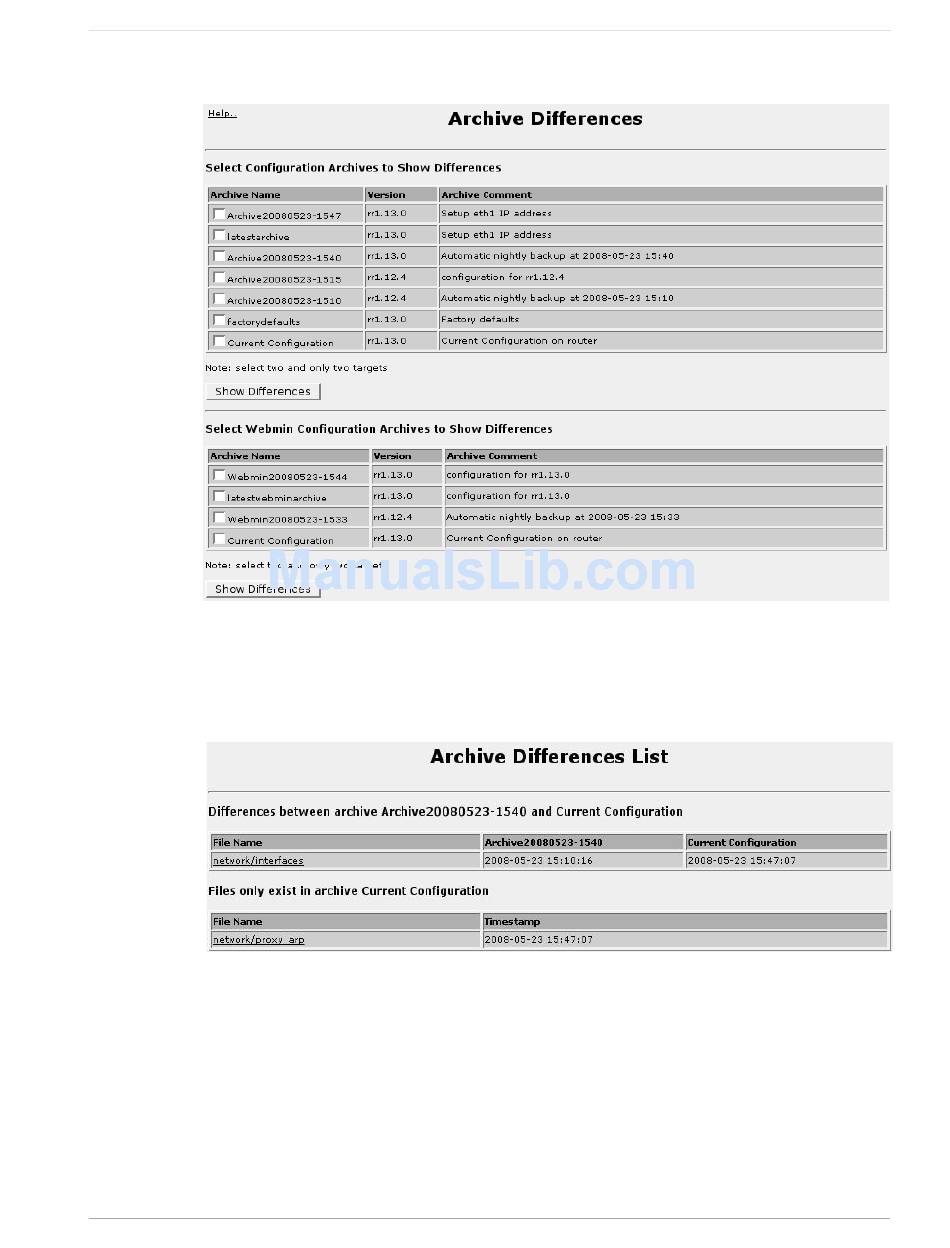

Figure 241: Archive Differences Menu

The Archive Difference menu shows the difference between two targets. The first
target must be an archive while the second target can be either another archive or the
current configuration.
Choose two and only two targets and click the Show Differences button.

Figure 242: Archive Differences List

The resulting menu shows the differences between the two selected targets. Files in
this table are sorted by the change time (most recent changes first). Files that exist in
only one of the targets are shown separately.
Following the links under File Name column will show a files difference between the
two targets.
The difference will be shown by two methods. The difference between the two targets
will be first be shown in a side by side scrollable comparison.
272 RuggedCom
