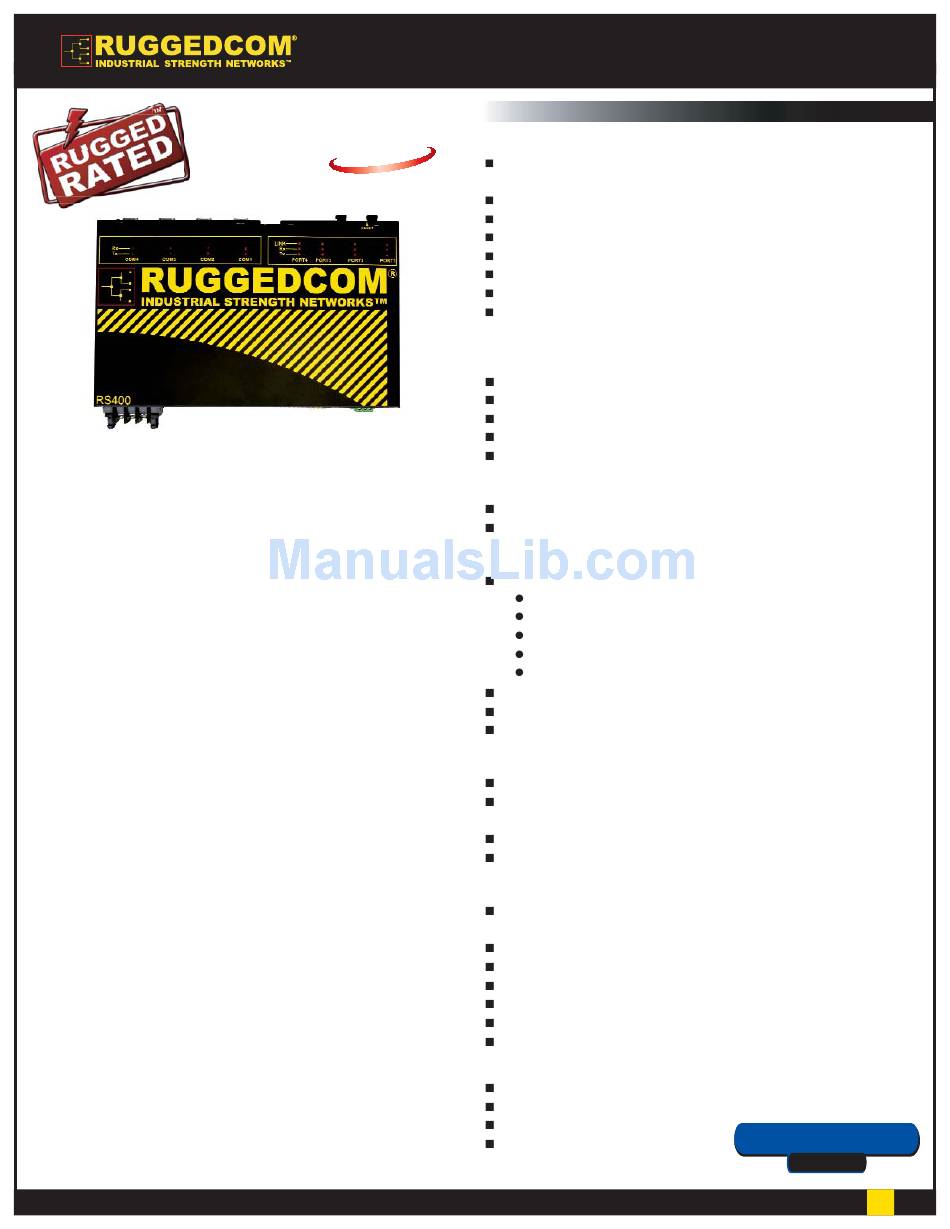

RuggedCom RuggedServer RS400 Specification

eRSTP
eRSTP

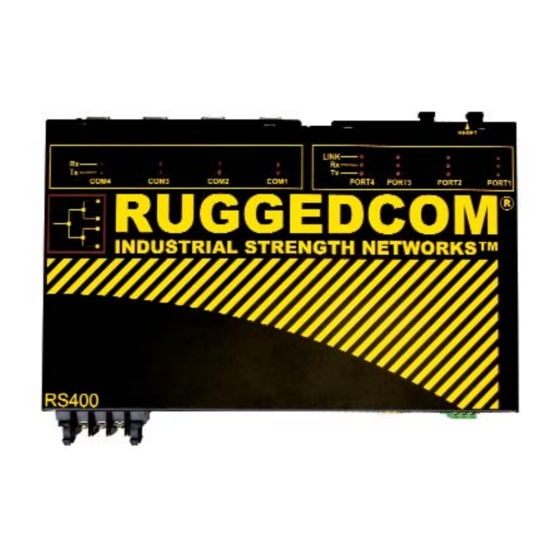

The RuggedServer™ RS400 Family is an industrially
hardened, serial device server with an integrated, fully
managed, Ethernet switch, designed to operate reliably in
electrically harsh and climatically demanding environments.
Featuring an integrated 4 port serial server, a 4 port managed
Ethernet switch, and an optional v.90 modem, the RS400 is
able to interconnect multiple types of intelligent electronic
devices (IEDs) that have different methods of communications.
Using the RS400 results in fewer connectivity devices (which
reduces overall system costs) and also extends the useful life
of existing legacy IEDs (which minimizes capital expenditure
for new equipment).
The RS400 provides a high level of immunity to
electromagnetic interference and heavy electrical surges typical
of environments found in electric utility substations, factory
floors or in curb side traffic control cabinets. The RS400 meets
or exceeds a wide range of industry standards including
IEC61850, IEEE1613, IEC61000-6-2, IEEE61800-3, and NEMA
TS-2. The RS400 also features a wide operating temperature
range of -40°C to +85°C allowing it to be installed in virtually
any location.
The RS400 also includes an industrially rated integrated power
supply that can support a wide range of power supply options
suitable for multiple industries and for worldwide operability.
Options include 24VDC, 48VDC, and 88VDC - 300VDC/85VAC
- 264VAC, allowing for great installation flexibility.
The embedded Rugged Operating System (ROS™) within the
RS400 provides advanced layer 2 and layer 3 networking
functions, advanced cyber security features, and a full array of
intelligent functionality for high network availability and
manageability. Coupled with the ruggedized hardware design,
the RS400 is ideal for creating mission-critical, real-time,
control applications in any harsh environment.
The RS400 is backed by RuggedCom's all inclusive five year
warranty and unsurpassed technical support.
www.RuggedCom.com
4-Port Serial Device Server with Integrated 4-Port Managed Ethernet Switch
eRSTP eRSTP eRSTP
eRSTP eRSTP
TM
Serial device server
.
Fully compliant EIA/TIA RS485, RS422, RS232 serial ports
(software selectable) - DB9, RJ45, Phoenix style connectors
.Transmit serial data over an IP network
.Support for Modbus TCP, DNP 3, TIN serial protocols
.
Baud rates up to 230 kbps
.
Point-to-point and multi-point modes
eRSTP eRSTP
.
Convert Modbus RTU to Modbus TCP
.
Supports multiple Modbus masters
.
Serial IP' port redirection software to support PC
applications statistics and built-in 'sniffer' for troubleshooting
Ethernet Ports
.
Integrated Ethernet Switch – up to 4 ports
.
High performance and throughput Ethernet switching
.
Fully IEEE 802.3, IEEE 802.3u, IEEE 802.3x compliance
.
Non-blocking, store and forward switching
.
10/100BaseTX, 10BaseFL, 100BaseFX options
Remote Dial Up Access
.
Integrated v.90 modem and PPP server
.
Provides remote access to serial devices and Ethernet LAN
RuggedRated™ for Reliability in Harsh Environments
.
Immunity to EMI and heavy electrical surges
.
Fully independent 2kV (RMS) isolated serial ports
.
-40°C to +85°C operating temperature (no fans)
.
18 AWG galvanized steel enclosure
Universal Power Supply Options
.
Fully integrated power supplies (no external adaptors)
.
Popular low voltage ranges: 24VDC(9-36VDC),
48VDC (36-59VDC)
.
Universal high-voltage range: 88-300VDC or 85-264VAC
.
CSA/UL 60950 safety approved to +85°C
Rugged Operating System (ROS™) Features
.
Simple plug and play operation - automatic learning,
negotiation, and crossover detection
.
Integrated Cyber Security features
.
Fast network fault recovery (<5ms) with eRSTP™
.
Quality of Service (802.1p) for real-time traffic
.
VLAN (802.1q) and GVRP support
.
Port Rate Limiting and Broadcast Storm Limiting
.
Port configuration, status, statistics, mirroring, security
Management Tools
.
Web-based, Telnet, CLI management interfaces
.
SNMP v1/v2/v3
.
Remote Monitoring (RMON)
.
Rich set of diagnostics with
logging and alarms
RuggedServer™ RS400
.
Meets IEEE 1613 (electric utility substations)
.
Exceeds IEC 61850-3 (electric utility substations)
.
Exceeds IEEE 61800-3 (variable speed drive systems)
.
Exceeds IEC 61000-6-2 (generic industrial)
.
Exceeds NEMA TS-2 (traffic control equipment)
RuggedSwitch
Features and Benefits
RUGGEDCOM
ISO 9001:2000 ISO 9001:2000 ISO 9001:2000
CERTIFIED
TM RS400 1
