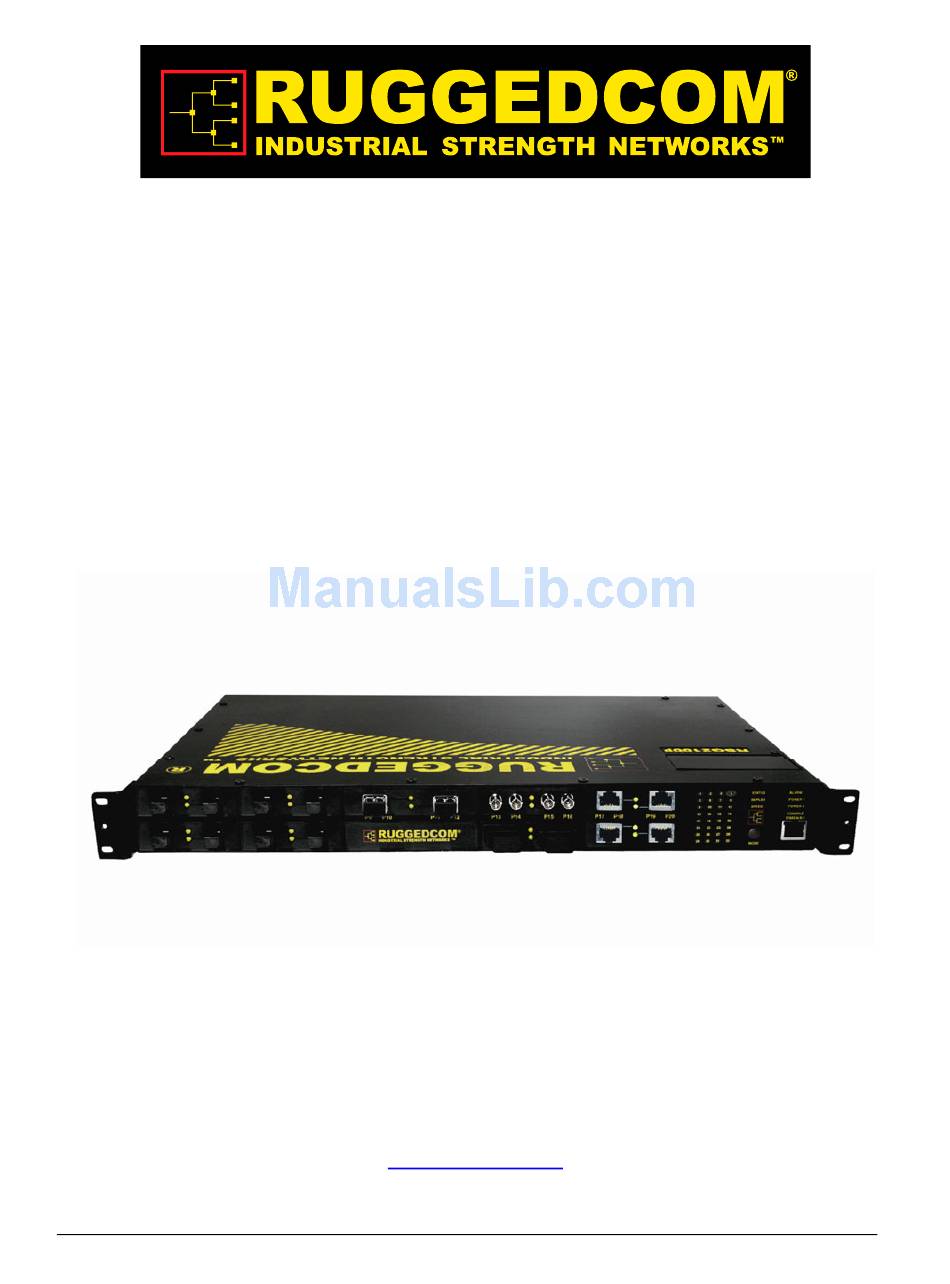

Page 1: Installation Guide
RuggedSwitch ® RSG2100P Modular Power over Ethernet Managed Ethernet Switch Installation Guide August 14, 2008 www.ruggedcom.com RuggedCom Inc. I 30 Whitmore Road, Woodbridge, Ontario, Canada L4L 7Z4 Tel: (905) 856-5288 I Fax: (905) 856-1995 I Toll Free: (888) 264-0006... - Page 2 This product contains no user serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by RuggedCom Inc. could void the user’s authority to operate the equipment.
-
Page 3: Table Of Contents
Fast Ethernet (10/100 Mbps) Optical Specifications ........ 31 6.5.2 Gigabit Ethernet (1000 Mbps) Optical Specifications ......32 Type Test Specifications ................... 34 Operating Environment ..................34 Mechanical Specifications ................35 Agency Approvals ........................36 Warranty ..........................36 © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 4: Table Of Figures
Table 7: Cabling categories and 1000BaseTx compliance defined..........24 Table 8: Power Supply Specifications .....................27 Table 9: PoE Power Supply Specifications ..................27 Table 10: Failsafe Relay Contact Ratings ..................27 Table 11: Networking Standards Supported..................28 © 2008 RuggedCom Inc. All rights reserved Rev105... - Page 5 Table 13: Fast Ethernet optical specifications.................31 Table 14: Gigabit Ethernet optical specifications................32 Table 15: Test Type Specifications ....................34 Table 16: Operating Environment ....................34 Table 17: Mechanical Specifications ....................35 Table 18: Agency Approvals ......................36 © 2008 RuggedCom Inc. All rights reserved Rev105...
-

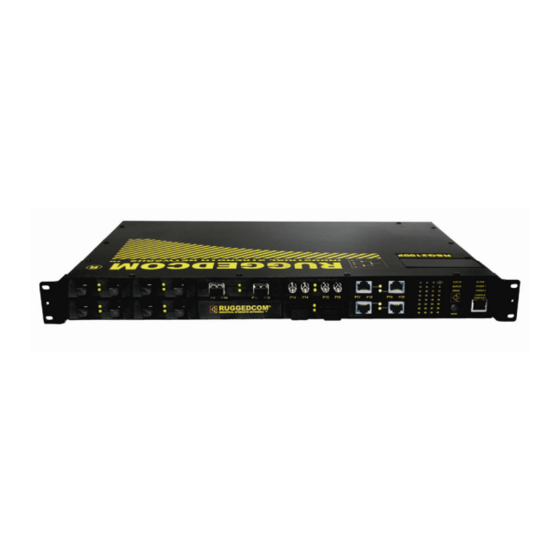

Page 6: Product Overview
• up to 12-Fast Ethernet ports - copper and/or fiber • Many fiber and connector options Cyber Security Features • Muti-level user passwords • SSH/SSL encryption • Enable/disable ports, MAC based port security • Port based network access control (802.1x) © 2008 RuggedCom Inc. All rights reserved Rev105... - Page 7 • Fully integrated power supplies • PoE power supply: 48VDC • Unit power supply: 12 VDC, 24VDC, 48VDC, or 88-300VDC/85-264VAC • Terminal blocks for reliable maintenance free connections • CSA/UL 60950 safety approved to +85°C © 2008 RuggedCom Inc. All rights reserved Rev105...
-
Page 8: Display Panel Description
PS1 (Main) / PS2 (PoE) Power supply failure Alarm exist – login to console to determine alarm code Alarm No alarms exist Table 1: LED Display – Device status LED behavior definition © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 9: Table 2: Led Display - Port Led Behavior Definition
Green (Solid) Full-Duplex operation Duplex Orange (Solid) Half-Duplex operation No link Green (Blinking) 1000Mb/s Green (Solid) 100Mb/s Speed Orange (Solid) 10Mb/s No link Table 2: LED Display - Port LED behavior definition © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 10: Installation
See Figure 2 for rack mount orientation examples. Figure 2: RSG2000 Series Rack mount chassis orientation options – Front and rear mount. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 11: Rack Mounting
Although forced airflow is not necessary, any increase in airflow will result in a reduction of ambient temperature that will improve long-term reliability of all equipment mounted within the rack space. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 12: Panel And Din Rail Mounting
The adapter allows for the chassis to be mounted on the standard 1” DIN rail using the grooves in the adapter, secured using the included philips screw. See Figure 5 for a PANEL/DIN mount diagram. Figure 5: RSG2000 Series PANEL/DIN RAIL mounting diagram with © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 13: Power Supply Wiring And Grounding
#6 ring lug, and to use a torque setting not exceeding 15 in.lbs (1.7 Nm). #6-32 screw with ext. washer. #6 ring lug stainless steel standoff Figure 8: Chassis Ground Connection © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 14: Table 3: Rsg2100P Series Power Terminal Block Connection Description
Relay NO Contact Normally open, failsafe relay contact. Relay Common Failsafe relay common contact. Relay NC Contact Normally closed, failsafe relay contact. Table 3: RSG2100P Series Power terminal block connection description © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 15: Ac Power Supply (Ps1) Wiring Example
Figure 9: AC (PS1) & 48VDC (PS2) power supply wiring examples NOTES: 1. 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker must be installed. 2. Equipment must be installed according to the applicable country wiring codes. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 16: Dc Power Supply (Ps1) Wiring Example
1. 88-300VDC rated equipment: A 300VDC appropriately rated circuit breaker must be installed. 2. A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies. 3. Equipment must be installed according to the applicable country wiring codes. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 17: Dielectric Strength (Hipot) Testing
HIPOT testing. Figure 11 shows the proper HIPOT test connections and should be followed to avoid damage to the device. Figure 11: Dielectric Strength (HIPOT) Testing © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 18: Failsafe Alarm Relay Wiring
Control of the output is user selectable and can be programmed via the Rugged Operating System (ROS). One common application for this output is to signal an alarm if a power failure or removal of control power occurs. Figure 12: Failsafe Alarm Relay Wiring © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 19: Console Port Wiring
Figure 13: Console port location on display board Figure 14: RSG200 Console cable For user reference, the console cable pin-out is show in Table 5. RuggedCom RS232 over RJ45 pin-out specification Signal Name (PC is DTE) DB9- Female RJ45 Male DCD –... -
Page 20: Ethernet Ports
The RJ45 receptacles can also accept and take advantage of screened (commonly known as “shielded”) cabling. Figure 16 shows the RJ45 port pins configuration. Pin 8 Pin 1 Figure 16: RJ45 port pins configuration. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 21: Data And Power Ports
Table 6: RJ45 PoE pin-out assignment 5.1.3 Transient Suppression RuggedCom does not recommend the use of copper cabling of any length for critical real-time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance. -
Page 22: Fiber Optic Ports
(i.e. RX and TX will be reversed). Figure 17: 10FL ST connector Figure 18: 100FX MTRJ connector Figure 20: 100FX / 1000LX SC connector Figure 19: 100FX / 1000LX LC connector © 2008 RuggedCom Inc. All rights reserved Rev105... - Page 23 Figure 21: 100FX / 1000LX ST connector Figure 22: 1000LX GBIC Module and SC connector Figure 23: 1000LX SFP (mini-GBIC) Module and LC connector © 2008 RuggedCom Inc. All rights reserved Rev105...
-
Page 24: Gigabit Ethernet 1000Base-Tx Cabling Recommendations
Power and data cables should intersect at 90° angles when necessary to reduce inductive coupling. • Shielded/screened cabling can optionally be used. The cable shield should be grounded at one single point to avoid the generation of ground loops. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 25: Pluggable Optics - Installation, Removal, And Precautions
4. Disconnect all cables from SFP or GBIC module before insertion or removal of module. 5. Only RuggedCom Inc. certified optics should be used on RuggedCom products. Damage can occur to optics and product if compatibility and reliability have not been properly assessed. -
Page 26: Sfp Module Removal
SFP module. Removal of the SFP module is shown further in Figure 27. The module should be immediately stored in an ESD-safe environment. Figure 27: SFP Removal Figure 26: SFP Bail Latch location © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 27: Technical Specifications
Parameter Value (Resistive Load) Max Switching Voltage 240VAC, 125VDC Rated Switching Current 2A @ 240VAC 0.15A @ 125VDC, 2A @ 30VDC Max Switching Capacity 150W, 500VA Table 10: Failsafe Relay Contact Ratings © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 28: Networking Standards Supported
IEEE 802.3x Full Duplex Operation IEEE 802.1D MAC Bridges IEEE 802.1Q VLAN (Virtual LAN) IEEE 802.1p Priority Levels IEEE 802.3af Power over Ethernet Ports (17 – 20) Table 11: Networking Standards Supported © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 29: Twisted-Pair Port Specifications
Connector RJ45 Isolation 1.5 kV RMS 1-minute PoE Voltage 44 – 57 V PoE Ports 17 – 20 PoE Current 350 mA PoE Ports 17 – 20 Table 12: Twisted-Pair Port Specifications © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 30: Fiber Optical Specifications
RuggedSwitch ROS user interface. The following sections detail specifications of fiber optic modules in two general categories, Ethernet / Fast Ethernet (10/100Mbps) and Gigabit Ethernet (1000Mbps). © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 31: Fast Ethernet (10/100 Mbps) Optical Specifications
The dual-port fast Ethernet optical specifications for RSG2100P ports 1-8 and 13-20 are shown below organized by module order code. Module order codes are contained within each product’s factory data when assembled and configured at the factory. Consult the RuggedCom ROS to determine the optical assemblies installed in a particular product. -
Page 32: Gigabit Ethernet (1000 Mbps) Optical Specifications
6.5.2 Gigabit Ethernet (1000 Mbps) Optical Specifications For maximum flexibility RuggedCom Inc. offers a number of different transceiver choices for Gigabit fiber optical communications. The table below details fiber optic specifications based on the 2-port modules or pluggable transceivers selected at time of ordering. - Page 33 NOTES: 1. Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and splices. Please consult RuggedCom sales associates when determining maximum segment distances. 2. All cabling is duplex type unless otherwise specified. 3. All optical power numbers are listed as dBm averages.
-
Page 34: Type Test Specifications
30cm -40 to 85°C Temperature radius surrounding the center of the enclosure. Ambient Relative Humidity 5% to 95% Non-condensing Ambient Storage -40 to 85°C Temperature Table 16: Operating Environment © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 35: Mechanical Specifications
(Length x Width x Height) with mounting brackets (464,57) x (258,32) x (44,20) mm installed Weight 10 lb (4.5 Kg) Enclosure 18awg galvanized steel Table 17: Mechanical Specifications Figure 28: Mechanical Specifications © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 36: Agency Approvals
EN60825-1:1994 + A11:1996 + A2:2001 Compliant Table 18: Agency Approvals 8 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com/ or contact your customer service representative. Should this product require warranty or service contact the factory at: RuggedCom Inc.
