Activity Trace Menu

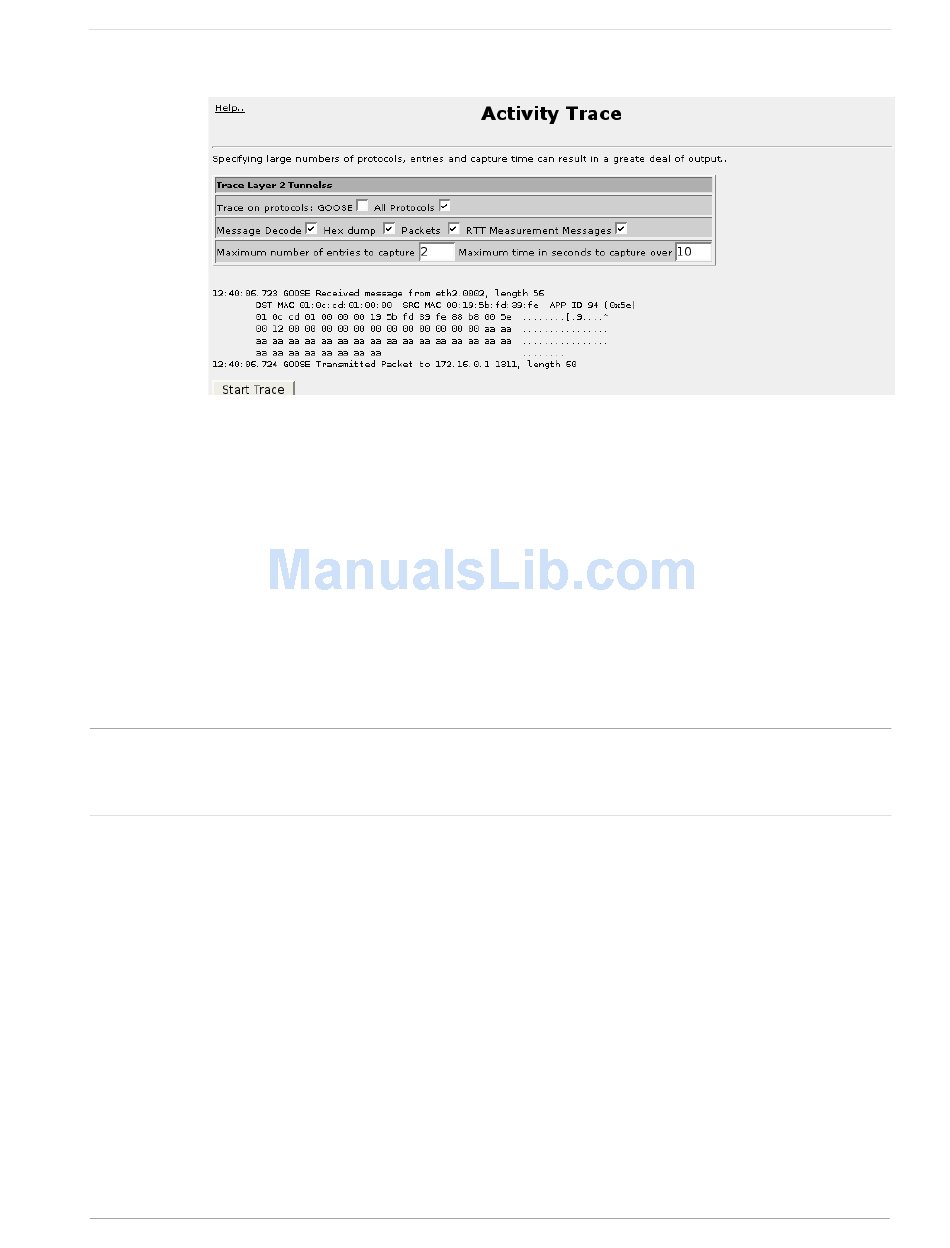

Figure 190: Activity Trace Menu

This menu displays decoded GOOSE activity.
The desired traffic sources, number of messages and length of time to capture are
entered and the Start Trace button is pressed. The menu will display up to the
provided number of messages waiting up to the specified number of seconds.
The Trace on protocols: selections feature a (all to short) list of protocols with
unused entries greyed out. The default is All Protocols.
The Message Decode field causes received/transmitted frame entries to include
protocol specific information. If the Hex Dump field is selected, the first 64 bytes of
packet content is displayed.
The Packets field causes received/transmitted packet entries to be displayed.
The RTT Measurement field displays Beacon messages used for RTT measurement.
Note:
Specifying large numbers of ports, entries and capture times can result in a great
deal of output. Specifying a large capture time may require the web page to wait that
interval if activity is infrequent.
