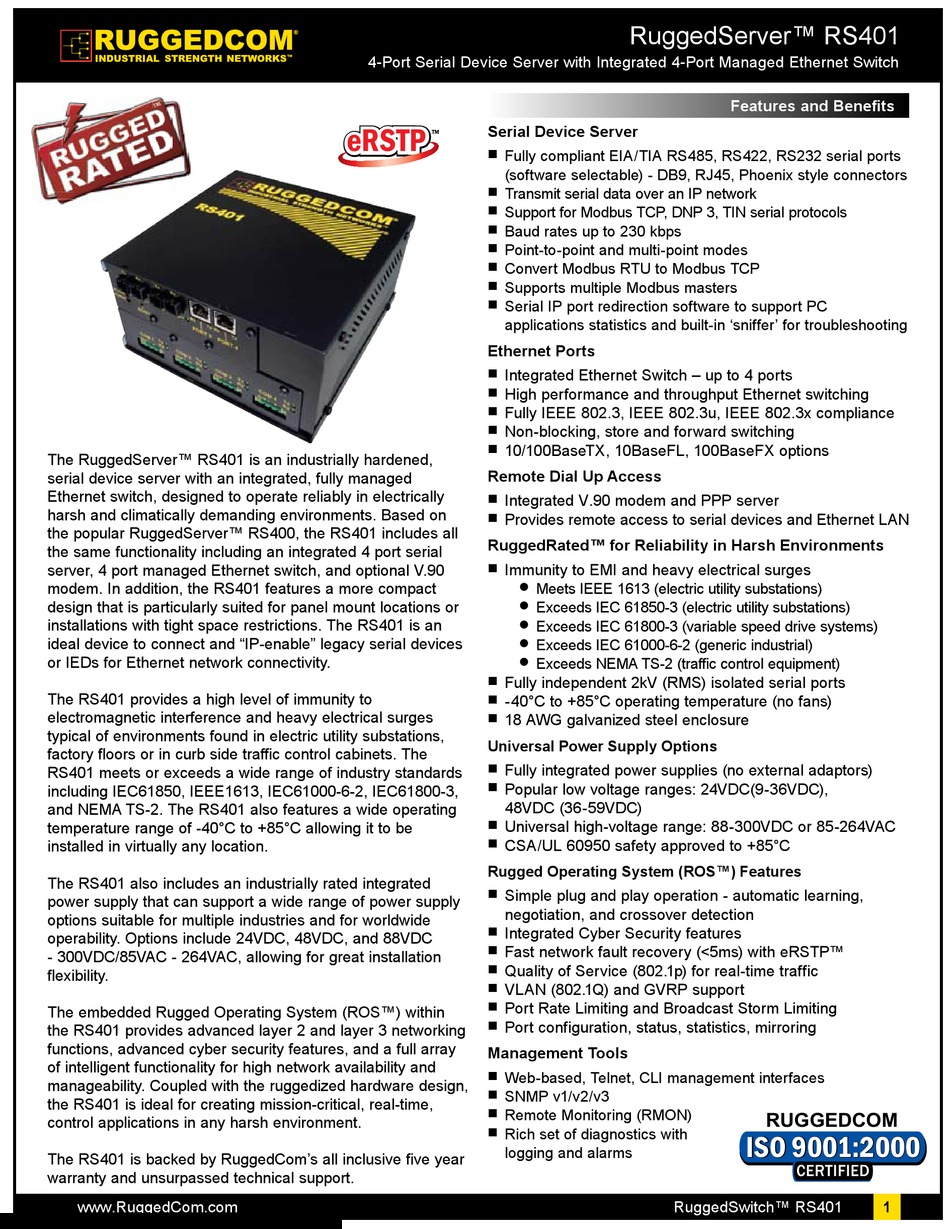

RuggedCom RuggedServer RS401 Specifications

eRSTP eRSTP eRSTP
ZPL
Zero-Packet-Loss™

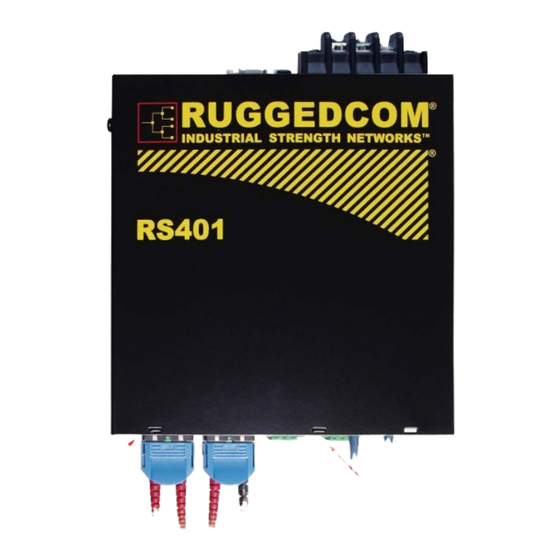

The RuggedServer™ RS401 is an industrially hardened,
serial device server with an integrated, fully managed
Ethernet switch, designed to operate reliably in electrically
harsh and climatically demanding environments. Based on
the popular RuggedServer™ RS400, the RS401 includes all
the same functionality including an integrated 4 port serial
server, 4 port managed Ethernet switch, and optional V.90
modem. In addition, the RS401 features a more compact
design that is particularly suited for panel mount locations or
installations with tight space restrictions. The RS401 is an
ideal device to connect and "IP-enable" legacy serial devices
or IEDs for Ethernet network connectivity.
The RS401 provides a high level of immunity to
electromagnetic interference and heavy electrical surges
typical of environments found in electric utility substations,
factory floors or in curb side traffic control cabinets. The
RS401 meets or exceeds a wide range of industry standards
including IEC61850, IEEE1613, IEC61000-6-2, IEC61800-3,
and NEMA TS-2. The RS401 also features a wide operating
temperature range of -40°C to +85°C allowing it to be
installed in virtually any location.
The RS401 also includes an industrially rated integrated
power supply that can support a wide range of power supply
options suitable for multiple industries and for worldwide
operability. Options include 24VDC, 48VDC, and 88VDC
- 300VDC/85VAC - 264VAC, allowing for great installation
flexibility.
The embedded Rugged Operating System (ROS™) within
the RS401 provides advanced layer 2 and layer 3 networking
functions, advanced cyber security features, and a full array
of intelligent functionality for high network availability and
manageability. Coupled with the ruggedized hardware design,
the RS401 is ideal for creating mission-critical, real-time,
control applications in any harsh environment.
The RS401 is backed by RuggedCom's all inclusive five year
warranty and unsurpassed technical support.
www.RuggedCom.com
4-Port Serial Device Server with Integrated 4-Port Managed Ethernet Switch
eRSTP eRSTP eRSTP
TM
ZPL
eRSTP eRSTP eRSTP
Zero-Packet-Loss™
RoS
Serial Device Server
TM
„  Fully compliant EIA/TIA RS485, RS422, RS232 serial ports

Rugged Operating
(software selectable) - DB9, RJ45, Phoenix style connectors
System™
„  Transmit serial data over an IP network

„  Support for Modbus TCP, DNP 3, TIN serial protocols

Rugged Operating
Baud rates up to 230 kbps
„

System™
„  Point-to-point and multi-point modes

TM
„  Convert Modbus RTU to Modbus TCP

„  Supports multiple Modbus masters

Rugged Operating
System™
„  Serial IP port redirection software to support PC

applications statistics and built-in 'sniffer' for troubleshooting
Ethernet Ports
„  Integrated Ethernet Switch – up to 4 ports

High performance and throughput Ethernet switching
„

Fully IEEE 802.3, IEEE 802.3u, IEEE 802.3x compliance
„

„  Non-blocking, store and forward switching

10/100BaseTX, 10BaseFL, 100BaseFX options
„

Remote Dial Up Access
Integrated V.90 modem and PPP server
„
„  Provides remote access to serial devices and Ethernet LAN
RuggedRated™ for Reliability in Harsh Environments
„  Immunity to EMI and heavy electrical surges

z  Meets IEEE 1613 (electric utility substations)
Exceeds IEC 61850-3 (electric utility substations)
z
z  Exceeds IEC 61800-3 (variable speed drive systems)
z  Exceeds IEC 61000-6-2 (generic industrial)
z  Exceeds NEMA TS-2 (traffic control equipment)
Fully independent 2kV (RMS) isolated serial ports
„

-40°C to +85°C operating temperature (no fans)
„

„  18 AWG galvanized steel enclosure

Universal Power Supply Options
Fully integrated power supplies (no external adaptors)
„

Popular low voltage ranges: 24VDC(9-36VDC),
„

48VDC (36-59VDC)
Universal high-voltage range: 88-300VDC or 85-264VAC
„

CSA/UL 60950 safety approved to +85°C
„

Rugged Operating System (ROS™) Features
„  Simple plug and play operation - automatic learning,

negotiation, and crossover detection
Integrated Cyber Security features
„

„  Fast network fault recovery (<5ms) with eRSTP™

Quality of Service (802.1p) for real-time traffic
„

VLAN (802.1Q) and GVRP support
„
„  Port Rate Limiting and Broadcast Storm Limiting

Port configuration, status, statistics, mirroring
„

Management Tools
Web-based, Telnet, CLI management interfaces
„

„  SNMP v1/v2/v3

„  Remote Monitoring (RMON)

Rich set of diagnostics with
„

logging and alarms
RuggedServer™ RS401
Features and Benefits
RUGGEDCOM
ISO 9001:2000 ISO 9001:2000
CERTIFIED
RuggedSwitch™ RS401 1
