Chapter 29 - Maintaining The Router
The Minimum Security field selects the level of security used by this user. It may be
No Authentication (no authentication or encryption), Authentication Only
(authentication by MD5 or SHA1 authentication methods, no encryption) or
Authentication with Privacy ( authentication by MD5 or SHA1, encryption by DES or
AES ciphers).
The OID field further restricts access to an Object Identifier (OID) tree at or below a
specified OID.
The Authentication Protocol, Authentication Passphrase, Privacy Protocol and
Privacy Passphrase fields configure the protocols and passphrases used depending
on the Minimum Security field. These settings are shared between agent and remote
user.
Note that if authentication and privacy are both used, but only the authentication
passphrase is provided, snmpd will use the authentication passphrase as the privacy
passphrase.
Note also that if any notifications are enabled, a read-only user named internal will be
automatically created to satisfy the requirements of the event MIB.

Trap Configuration

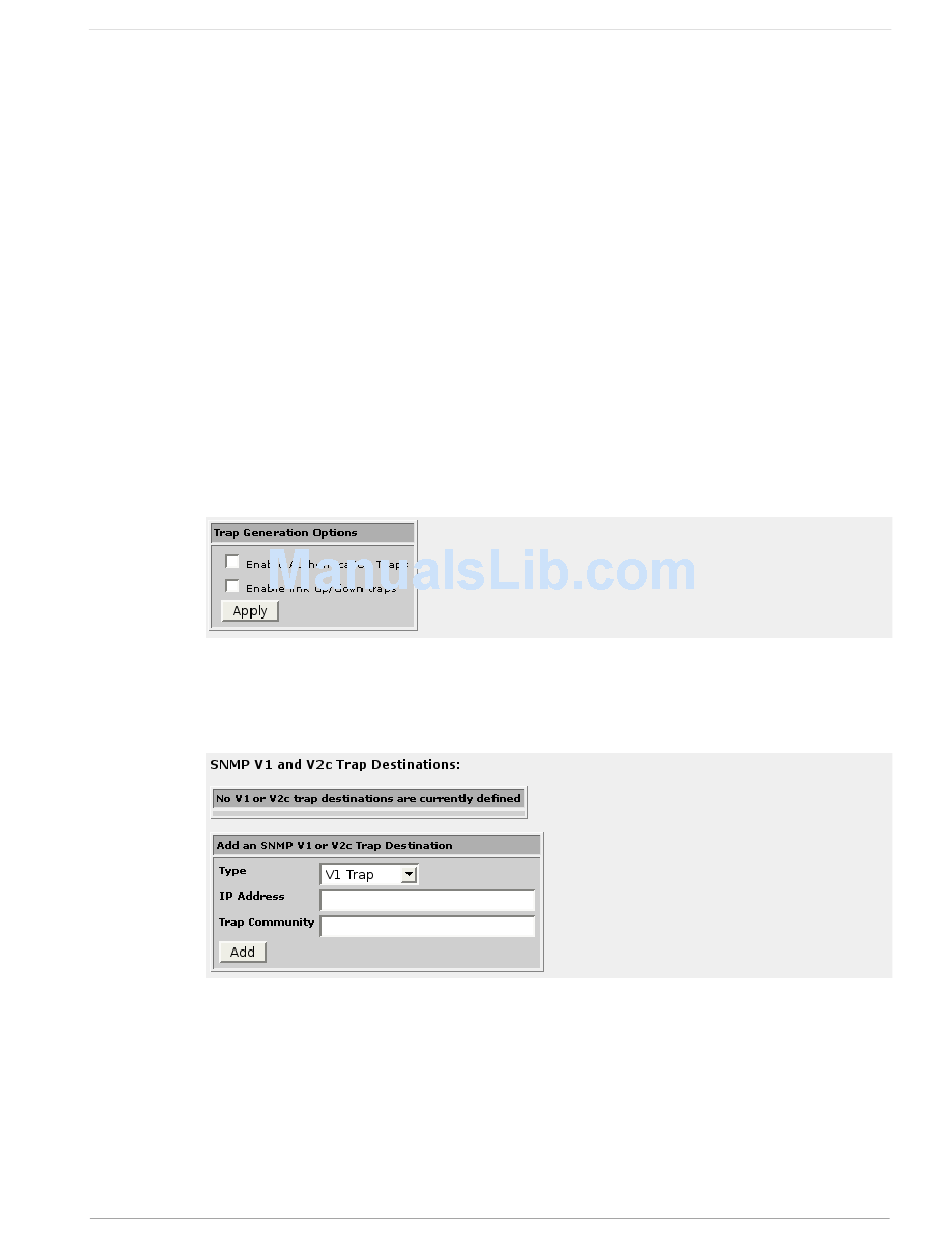

Figure 250: Trap Configuration Menu, Trap Options

The Trap Configuration page manages SNMP trap destinations. Under Trap
Generation Options, you may enable the generation of notifications on
authentication failures or IP interface link up/down events.

Figure 251: Trap Destinations V1 and V2c

The SNMP V1 and V2c Trap Destinations part of the menu allows the creation and
deletion of trap destinations.
The Type field specifies the exchange used with this destination, either V1 trap, V2c
trap or V2c inform.
The IP address and Trap Community fields specifies the receivers IP address and
community name.
RuggedCom 277
