2. To fasten the Intercom:

•

Operations Guide

For wall mounting, use the two 8-32 X 1/4" FLAT HEAD PHILLIPS MACHINE SCREW

and the one 10-24 X 5/16" PAN HEAD PHILLIPS MACHINE SCREW to secure the

Intercom.

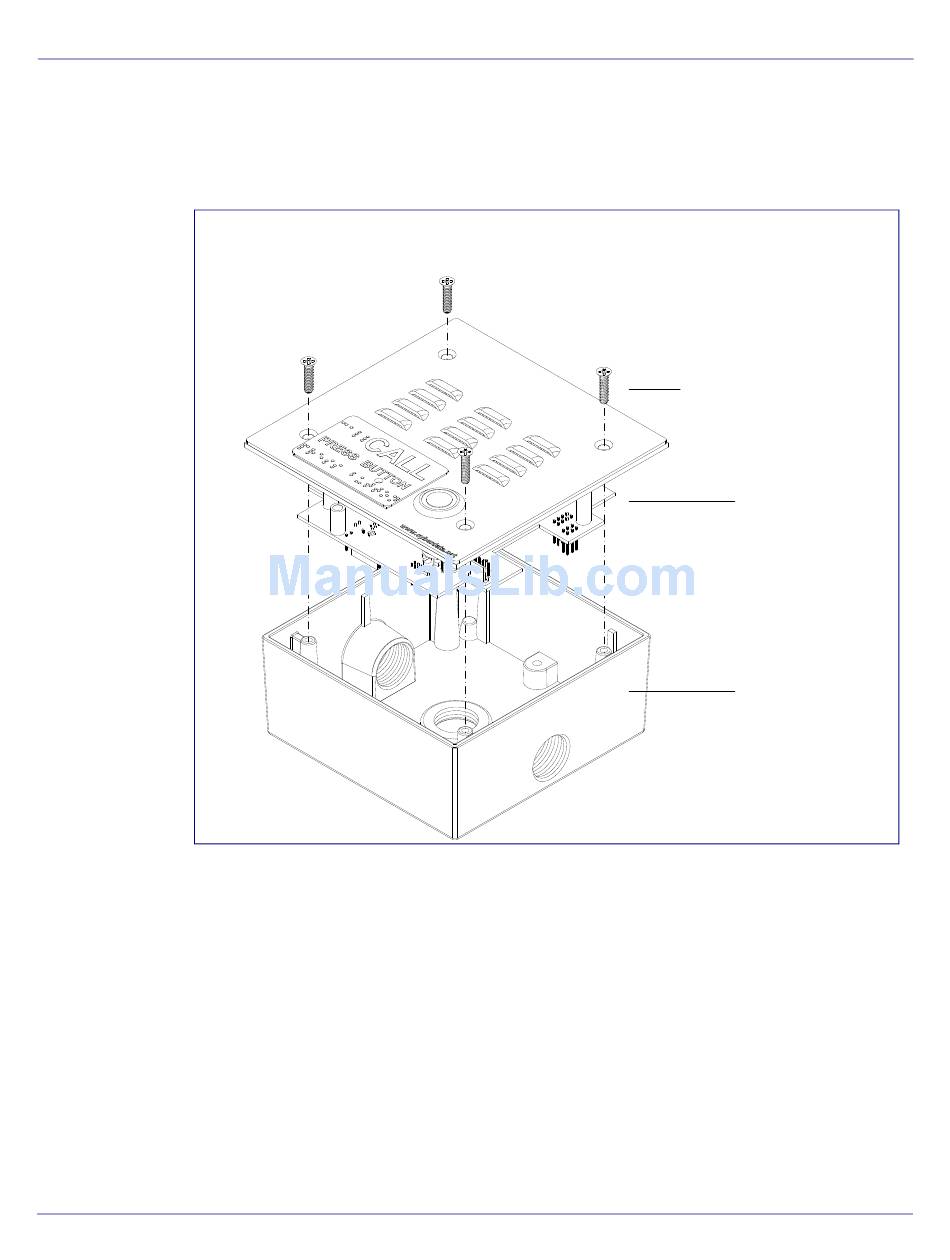

Figure A-1. VoIP Intercom Assembly

VoIP Intercom, PoE Assembly

930242E

010935A

Mount the Intercom

4 x Mounting Screw

Face Plate

and

PCB Assembly

2 Gang Box
