2.1.5 Configure the Sensor Setup Parameters

The door sensor (pins 5 and 6) on the header can be used to monitor a door's open or closed state.
There is an option on the sensor setup page to trigger on an open or short condition on these pins.
The door sensor alarm will be activated when the Door Open Timeout parameter has been met.
The intrusion sensor is an optical sensor installed on the Intercom board and will be activated when
the Intercom is removed from the case.
For each sensor there are four actions the Intercom can take:
●
●
●
●
Note
Click Sensor Setup to open the Sensor Setup page
Operations Guide
Flash the LED until the sensor is deactivated (roughly 10 times/second)
Activate the relay until the sensor is deactivated
Loop an audio file out of the Intercom speaker until the sensor is deactivated
Call a preset extension and play a pre-recorded audio file (once)
Calling a preset extension can be setup as a point-to-point call, but currently can't send
delayed DTMF tones.
(Figure

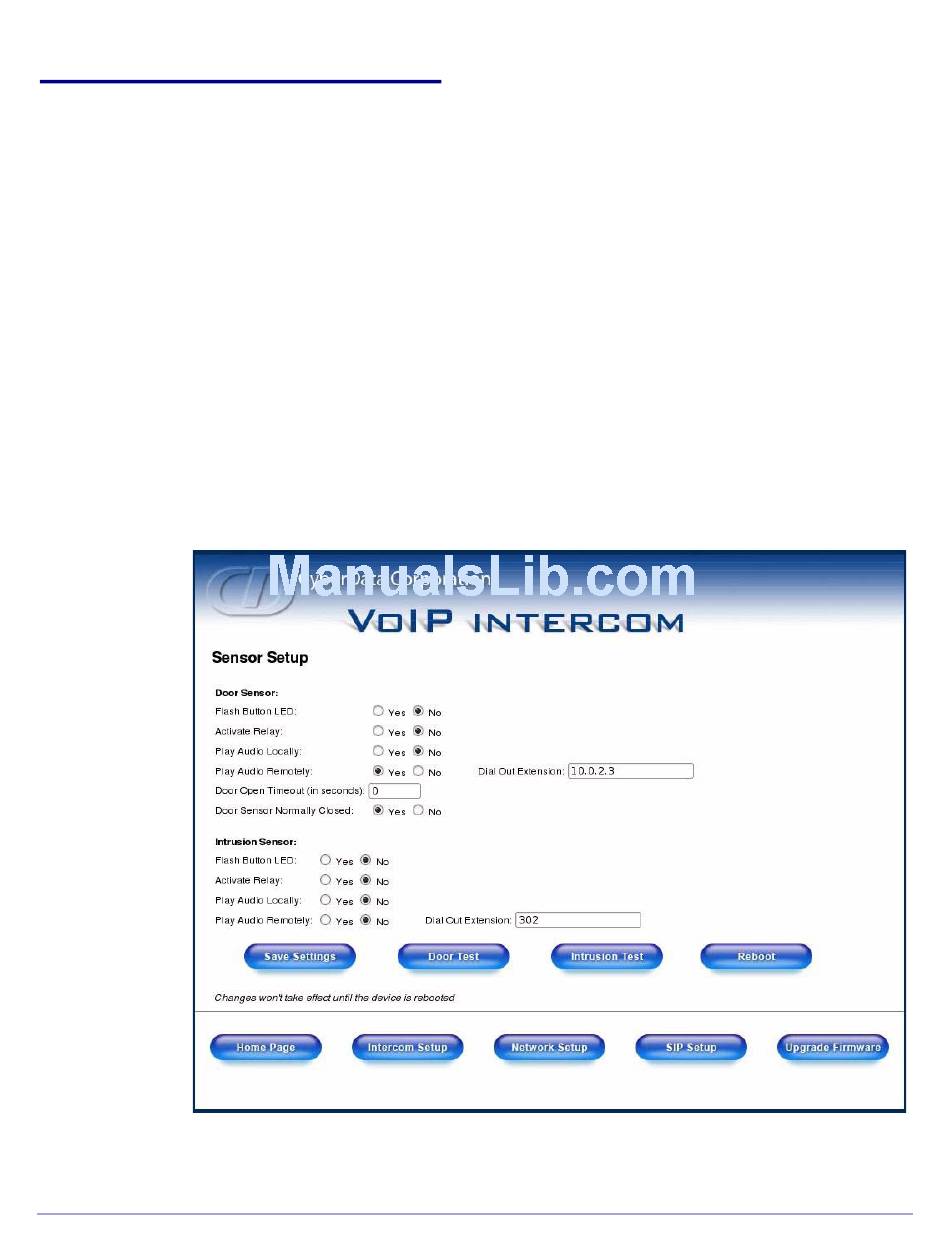

Figure 2-22. Sensor Setup Page
