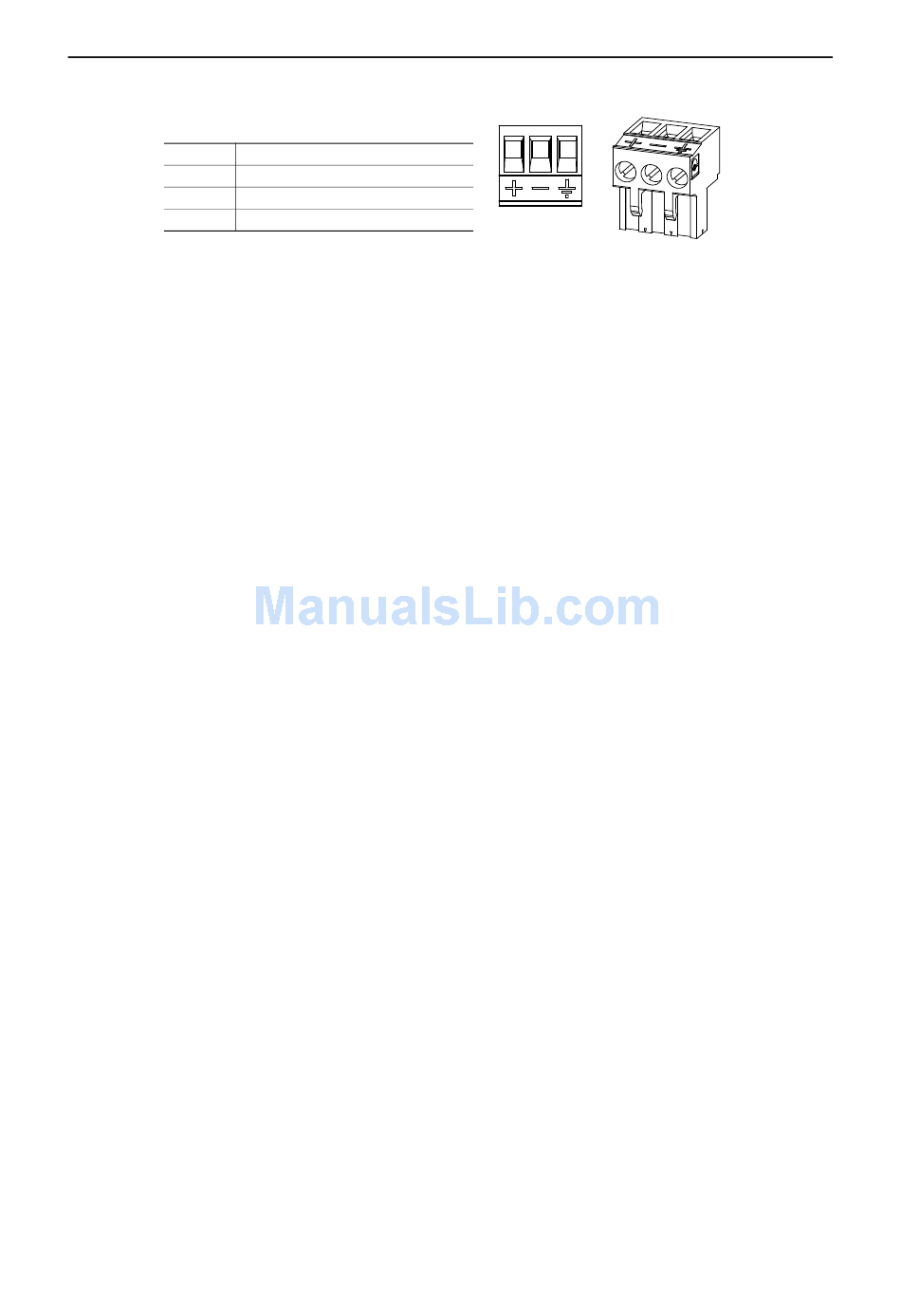

3.7 Power Connector

Pin no. Description
1 +24V DC
2 GND
3 PE (Protective Earth)
Notes:
• Use 60/75 or 75×C copper (CU) wire only.
• The terminal tightening torque must be between 5... 7 lbs-in (0.5... 0.8 Nm)
See also...
- "Power Supply" on page 40.
