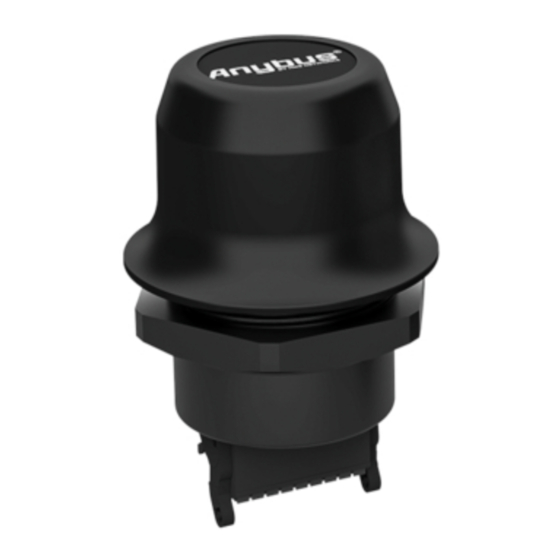

HMS Anybus Wireless Bolt Series User Manual
  1. Manuals
  2. Brands
  3. HMS Manuals
  4. Network Hardware
  5. Anybus Wireless Bolt Series
  6. User manual

HMS Anybus Wireless Bolt Series User Manual

Hide thumbs Also See for Anybus Wireless Bolt Series:
Table of Contents

Advertisement

Quick Links

Download this manual
®
™

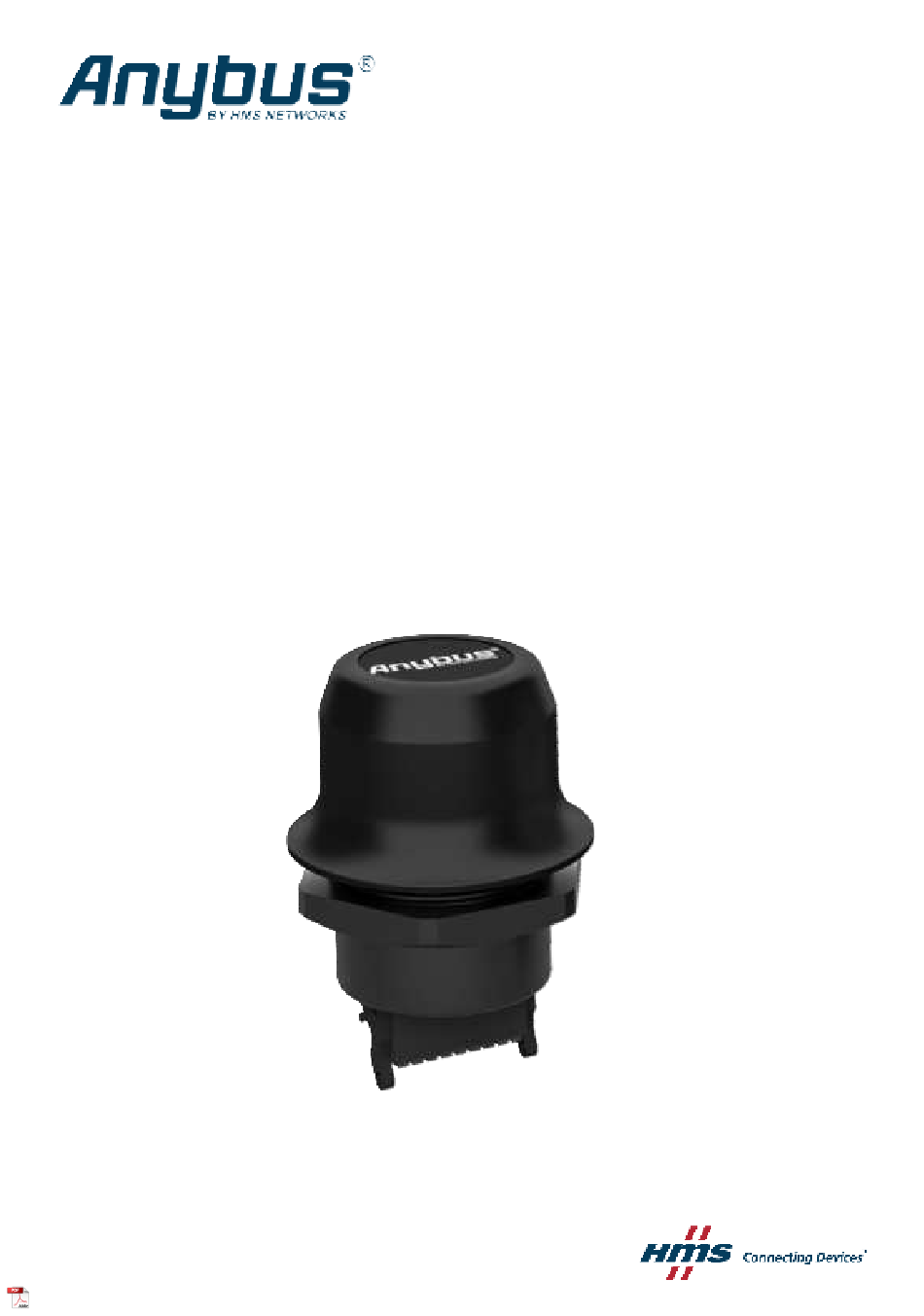

Anybus
Wireless Bolt Serial
USER MANUAL
SCM-1202-143 1.10 en-US ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anybus Wireless Bolt Series and is the answer not in the manual?

Questions and answers

Related Manuals for HMS Anybus Wireless Bolt Series

Summary of Contents for HMS Anybus Wireless Bolt Series

  • Page 1 ® ™ Anybus Wireless Bolt Serial USER MANUAL SCM-1202-143 1.10 en-US ENGLISH...
  • Page 2 HMS Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.

  • Page 3: Table Of Contents

    Table of Contents Page Preface ..........................3 About This Document .......................3 Document Conventions .....................3 Trademarks........................3 Safety ........................... 4 General Safety Instructions ....................4 Intended Use........................4 Preparation.......................... 5 General Information ......................5 When to Use Bluetooth and WLAN ..................5 Installation........................... 6 Mechanical Installation .....................6 Connector........................7 Cabling...........................8 Digital Input ........................8...
  • Page 4 This page intentionally left blank...

  • Page 5: Preface

    Additional information which may facilitate installation and/or operation. Trademarks Anybus is a registered trademark and Bolt Serial is a trademark of HMS Industrial Networks AB. ® ™ All other trademarks mentioned in this document are the property of their respective holders.

  • Page 6: Safety

    Safety 4 (44) Safety General Safety Instructions Caution This equipment emits RF energy in the ISM (Industrial, Scientific, Medical) band. Make sure that all medical devices used in proximity to this equipment meet appropriate susceptibility specifications for this type of RF energy. This equipment is recommended for use in both industrial and domestic environments.

  • Page 7: Preparation

    Preparation 5 (44) Preparation General Information Make sure that you have all the necessary information about the capabilities and restrictions of your local network environment before installation. The characteristics of the internal antenna should be considered when choosing the placement and orientation of the unit.

  • Page 8: Installation

    Installation 6 (44) Installation Mechanical Installation The device is intended to be mounted through an M50 (50.5 mm) hole using the included sealing ring and nut. The top mounting surface (in contact with the sealing) must be flat with a finish equivalent to Ra 3.2 or finer and cleaned and free from oils and greases.

  • Page 9: Connector

    Installation 7 (44) Connector The 18-pin connector is common for several models of the Anybus Wireless Bolt. Some pins may have a different function depending on model. Unused pins should not be connected. Fig. 2 Connector The location of the RESET button can be used as a reference for the pin numbering when the connector is attached to the Bolt Serial.

  • Page 10: Cabling

    Installation 8 (44) • Use termination for RS-485 and CAN when required. • RS485 Common signal reference ground (SC) is the RS485_GND pin. Cabling When using Easy Config Modes, the Bolt Serial that is to be configured as a Client does not need to be connected to the Ethernet wires.

  • Page 11: Reset Button

    Installation 9 (44) RESET Button Fig. 4 RESET button The RESET button is located on the bottom of the unit. When the unit is powered on, press and hold RESET for >10 seconds and then release it to reset to the factory default settings. Recovery Mode If the web interface cannot be accessed, the unit can be reset by starting in Recovery Mode and reinstalling the firmware using Anybus Firmware Manager II, which can be downloaded from...

  • Page 12: Configuration

    Configuration 10 (44) Configuration Anybus Wireless Bolt Serial should normally be configured via the web interface. Parameters can be set individually or using one of the pre-configured Easy Config modes. The web interface is accessed by pointing a web browser to the IP address of the Bolt Serial. The default address is 192.168.0.99.

  • Page 13: Web Interface

    Configuration 11 (44) Web Interface 5.1.1 System Overview Fig. 6 System Overview page The System Overview page shows the current settings and connection status for the wired and wireless interfaces. The different parameters are explained in the descriptions of each settings page in this manual.
  • Page 14 Configuration 12 (44) 5.1.2 Easy Config Fig. 7 Easy Config page To activate an Easy Config mode, select it from the dropdown menu and click on Set. The mode will be activated immediately. Easy Config Modes Role Description Configure as Bluetooth client and scan for another client (PANU–PANU). Recommended setting for Bluetooth point-to-point communication.
  • Page 15 Configuration 13 (44) Default Easy Config Mode Fig. 8 The default mode is Easy Config Mode 4 By default Wireless Bolt and Bridge starts in Easy Config Mode 4. Configuration of Wireless Bolt and Bridge Clients can be performed wirelessly, via a PC connected to the Wireless Bolt or Bridge Access Point.
  • Page 16 Configuration 14 (44) 5.1.3 Network Settings Fig. 9 Network Settings page IP Assignment Select static or dynamic IP addressing (DHCP) IP Address Static IP address for the unit The browser should automatically be redirected to the new address after clicking on Save and Reboot (not supported by all browsers).
  • Page 17 Configuration 15 (44) DHCP Interfaces The DHCP Interfaces function is available when Internal DHCP Server > DHCP Server Enabled is selected. All: By default, the DHCP Interfaces function is set to use all interfaces. Wired Ethernet: The internal DHCP server only listens for clients on the wired Ethernet interface.
  • Page 18 Configuration 16 (44) 5.1.4 WLAN Settings - Client Fig. 10 WLAN Settings - Client Enable Enable/disable the WLAN interface. Operating Mode Choose operation as WLAN Client or Access Point. If Access Point is selected, additional settings will be available. Channel Bands Choose to scan only the 2.4 GHz or 5 GHz channel band, or both (default).
  • Page 19 Configuration 17 (44) Advanced Settings Bridge Mode Layer 2 tunnel = All layer 2 data will be bridged over WLAN. Use when multiple devices on both sides of an Ethernet network bridge must be able to communicate via WLAN (many-to-many). Only works between Anybus Wireless Bolt or Wireless Bridge II devices.
  • Page 20 Configuration 18 (44) WLAN Channels and World Mode (Client Mode only) Which channels are available for WLAN communication is restricted by the regulatory domain where the unit is operating. Anybus Wireless Bolt Serial supports regulatory domain detection according to the IEEE 802.11d specification. The unit is initially set in World Mode which enables only the universally allowed channels in the 2.4 GHz and 5 GHz bands (see the table below).
  • Page 21 Configuration 19 (44) 5.1.5 WLAN Settings - Access Point Fig. 11 WLAN Settings - Access Point The following settings are specific for Access Point mode: Network (SSID) Enter an SSID (network name) for the Bolt Serial. If this entry is left blank, the unit will generate an SSID which includes the last 6 characters of the MAC ID.
  • Page 22 Configuration 20 (44) 5.1.6 Bluetooth Settings – General Fig. 12 Bluetooth Settings Enable Enable/disable the Bluetooth interface. Operating Mode PANU (Client) = The unit will operate as a Bluetooth PAN (Personal Area Network) User device. It can connect to another single Bluetooth PANU device or to a Bluetooth Network Access Point.
  • Page 23 Configuration 21 (44) 5.1.7 Bluetooth Settings – PANU Mode Fig. 13 Bluetooth Settings – PANU PANU mode only Scan for Devices Scans the network for discoverable Bluetooth devices. To connect to a device, select it from the dropdown menu when the scan has completed. Connect To Used when connecting manually to a NAP or PANU device.
  • Page 24 Configuration 22 (44) 5.1.8 Bluetooth Settings – NAP Mode Fig. 14 Bluetooth settings – NAP NAP mode only Bridge Mode Standard = Default mode. Layer 3 IP forward = IP data will be bridged over Bluetooth. This mode must be used when connecting to an Android device over Bluetooth. The network must have an active DHCP server.
  • Page 25 Configuration 23 (44) 5.1.9 Serial Settings Setting Up Serial Communication Fig. 15 Example | Serial Settings, TCP Mode Server with Modbus TCP to Modbus RTU Gateway function enabled Fig. 16 Example | Serial Settings, TCP Mode Client SCM-1202-143 1.10 en-US Anybus Wireless Bolt Serial User Manual...
  • Page 26 Configuration 24 (44) To avoid timing problems if different baud rates are set on the master and the slaves, set the lowest baud rate on the master. Serial Settings Operating Mode Select a physical serial communication interface, RS232, RS485 or Off. Baud Rate Specify the rate at which information is transferred in a communication channel.
  • Page 27 Configuration 25 (44) Serial Communication The serial functionality is used to transfer serial data from one point on a wireless link to another. The connection can be set up as a point-to-point link or a point-to-multipoint link. A message sent from a master to a Bolt Serial is forwarded to all the connected slaves. The slave response sent to the Bolt Serial is forwarded to the master but not to the other slaves.
  • Page 28 Configuration 26 (44) 5.1.10 Firmware Update To update the firmware in the unit, click on Browse to select a downloaded firmware file, then click on Send to send it to the unit. Fig. 18 Firmware update in progress Both progress bars will turn green when the firmware update has been completed. The unit will then reboot automatically.
  • Page 29 Configuration 27 (44) 5.1.11 AT Commands Fig. 20 AT Commands AT commands can be used for setting advanced parameters that are not accessible in the web interface, to read out parameters in text format, and for batch configuration using command scripts.
  • Page 30 Configuration 28 (44) 5.1.12 System Settings Fig. 21 System Settings Device Info Device Name Enter a descriptive name for the unit. Password Enter a password for accessing the web interface. Reboot System Reboots the system without applying changes. Cancel All Changes Restores all parameters in the web interface to the currently active values.

  • Page 31: Use Cases

    Configuration 29 (44) Use Cases 5.2.1 Bolt Serial Point-to-Point Installation Fig. 22 Serial cable replacement is enabled by using two pieces of Bolt Serial which creates a wireless bridge for the serial communication. 5.2.2 Installing Multiple Bolt Serial Fig. 23 When installing more than one Bolt Serial in the bridge, configure the Bolt Serial connected to the: •...
  • Page 32 Configuration 30 (44) 5.2.3 Installing on a Modbus Network Fig. 24 When installing on a Modbus network, configure the Bolt Serial connected to the: • Master device as the Wireless Access point (AP). • Slave as a Wireless Client. In the Bolt Serial access point web interface Serial Settings tab, select the Modbus Optimization checkbox.
  • Page 33 Configuration 31 (44) 5.2.4 Installing Using the Modbus TCP to RTU Gateway Function The gateway function is transparent. When a command is sent on Modbus TCP it is translated to Modbus RTU. The response is translated back to Modbus TCP and delivered to the Modbus TCP Client.
  • Page 34 Configuration 32 (44) 5.2.5 Bolt Serial TCP/IP Socket Protocol Description Fig. 26 The Bolt Serial may communicate with raw TCP/IP traffic and bridge the data to RS232 or RS485 on the serial port. The Bolt Serial act as one of the endpoints in the TCP/IP communication. The other endpoint can be a PC program, tablet or phone application, PLC, controller or similar.

  • Page 35: Set Up A Wireless Infrastructure

    Configuration 33 (44) Set Up a Wireless Infrastructure Connect two or more Bolt Serial units via WLAN or Bluetooth using Easy Config. 5.3.1 Connecting the Devices Fig. 27 Serial bridge example Connect Client unit 1 to a Serial device. Connect Access Point unit 2 to the master device. Connect Access Point unit 2 to your PC, with an Ethernet cable.
  • Page 36 Configuration 34 (44) 5.3.2 Activate Easy Config Navigate to the web interface of Access Point unit 2. The default address to Access Point unit 2 is 192.168.0.99. Activate one of the following Easy Config Modes: – Easy Config Mode 1 for Bluetooth PANU-PANU. Used for setting up point-to-point communication.
  • Page 37 Configuration 35 (44) 5.3.4 Serial Configuration From the PC connected to Access Point unit 2: Navigate to the web interface of each Bolt Serial unit. Select the Serial Settings tab. Configure the serial port settings: Operating mode Specify the physical serial communication interface. Select RS232 or RS485.

  • Page 38: Factory Restore

    Configuration 36 (44) Factory Restore Any one of these actions will restore the factory default settings: • Clicking on Factory Restore on the System Settings page • Executing Easy Config Mode 2 • Issuing the AT command AT&F and then restarting the unit •...

  • Page 39: Technical Data

    Technical Data 37 (44) Technical Data For complete technical specifications and regulatory compliance information please visit www.anybus.com/support. Technical Specifications Order code AWB2010 AWB2011 Color Black White top and black base Connector Included plug connector (2x9p; 3.5mm, Phoenix DFMC 1.5/9-ST-3.5, push-in spring connection). Range Up to 100 meters free line of sight Antenna...
  • Page 40 This page intentionally left blank...

  • Page 41: Ars232/Rs485 Electrical Connection

    Appendix A: RS232/RS485 Electrical Connection 39 (44) RS232/RS485 Electrical Connection A and B marking differs between different devices, in this product A is TX+/RX+ or D+ and B is TX-/RX- or D-. RS485 Typical Connection The resistors on the Bolt Serial side are termination resistors which form an active termination of the RS485 line.

  • Page 42: B Wireless Technology Basics

    Appendix B: Wireless Technology Basics 40 (44) Wireless Technology Basics Wireless technology is based on the propagation and reception of electromagnetic waves. These waves respond in different ways in terms of propagation, dispersion, diffraction and reflection depending on their frequency and the medium in which they are travelling. To enable communication there should optimally be an unobstructed line of sight between the antennas of the devices.

  • Page 43: C Radio Antenna Patterns

    Appendix C: Radio Antenna Patterns 41 (44) Radio Antenna Patterns This section presents information about the radio antenna patterns for the Anybus Wireless Bolt. The diagram scale shows relative RSSI values, where the outer ring represents maximum radio power and is labelled 0 dB. The inner rings represent the increasing attenuation in dB measured in different angles around the Bolt, while maintaining the same distance.

  • Page 44: Vertical Views

    Appendix C: Radio Antenna Patterns 42 (44) Vertical Views These diagrams show the antenna pattern when looking at the Bolt from the side in two different rotations, 0° and 90°. The Bolt is mounted in a metal cabinet illustrated by the yellow box below the Bolt.

  • Page 45: Throughput Diagram

    Appendix C: Radio Antenna Patterns 43 (44) C.2.2 Side View – Vertical 90° Throughput Diagram This diagram shows how data throughput decreases when distance increases. Note the huge difference between using a backshield to focus the radio energy, and not using a backshield. Using a backshield can greatly increase radio coverage if used correctly.
  • Page 46 © 2021 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-143 1.10 en-US / 2021-06-03 / 22664...
