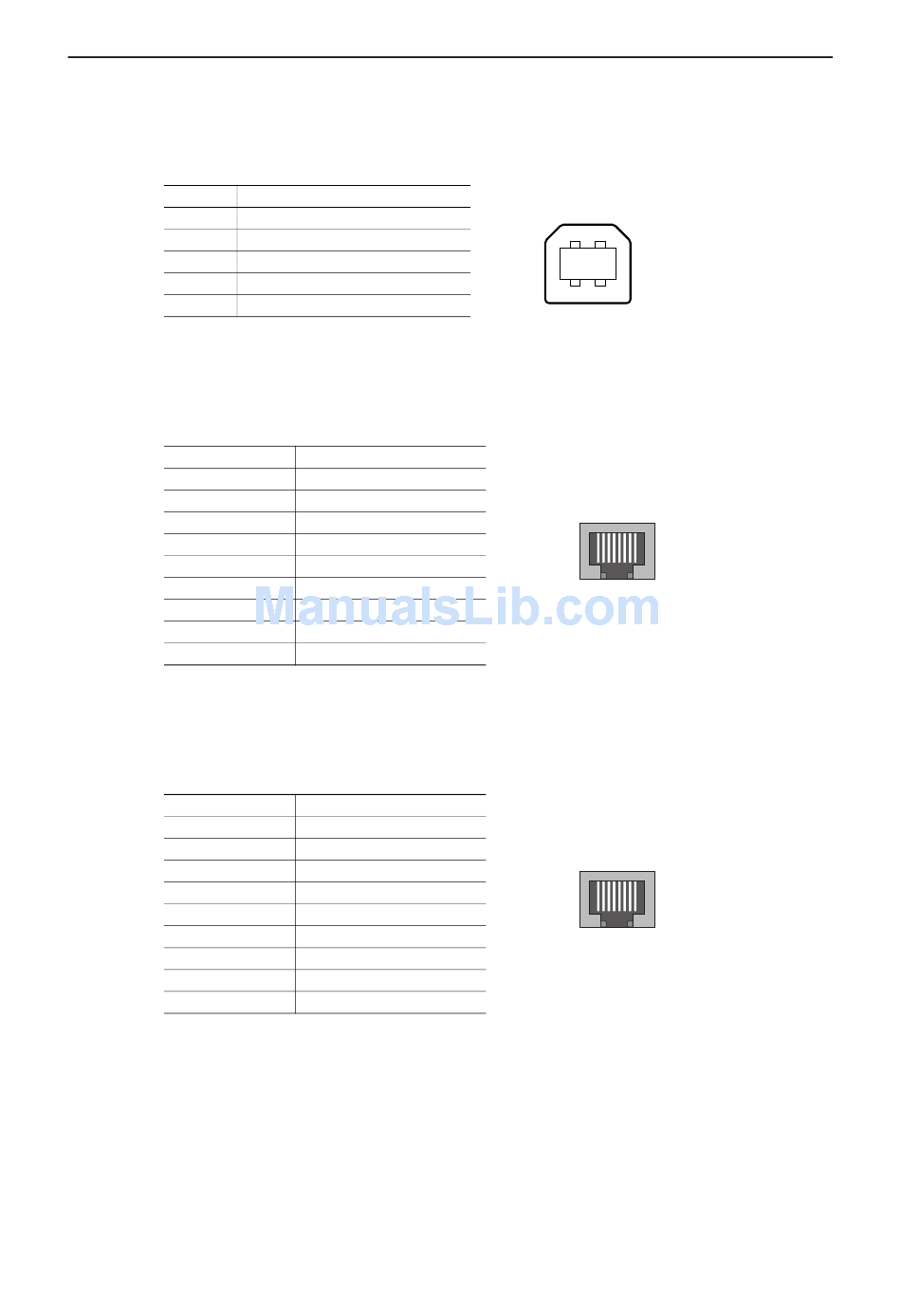

3.4 USB Connector

At the upper front of the module there is a USB connector used for firmware upgrades.
Pin no. Description
1 +5V Input
2 USBDM (USB communication signals)
3 USBDP (USB communication signals)
4 Signal GND
Housing Cable Shield

3.5 Modbus-TCP Connectors (Network 1)

The Modbus-TCP connectors for Network 1 are found at the lower front of the module.
Pin no.
1
2
3
4
5
6
7
8
Housing

3.6 Modbus-TCP Connectors (Network 2)

The Modbus-TCP connectors for Network 2 are found at the bottom of the module.
Pin no.
1
2
3
4
5
6
7
8
Housing
Anybus X-gateway for Modbus-TCP - Modbus-TCP
Doc.Rev. 1.00
Description
TX+
TX-
RX+
Not connected
Not connected
RX-
Not connected
Not connected
Shield
Description
TX+
TX-
RX+
Not connected
Not connected
RX-
Not connected
Not connected
Shield
About the Anybus X-gateway Modbus-TCP 19
2 1
3 4
1 8
1 8
Doc.Id. SCM-1200-114
