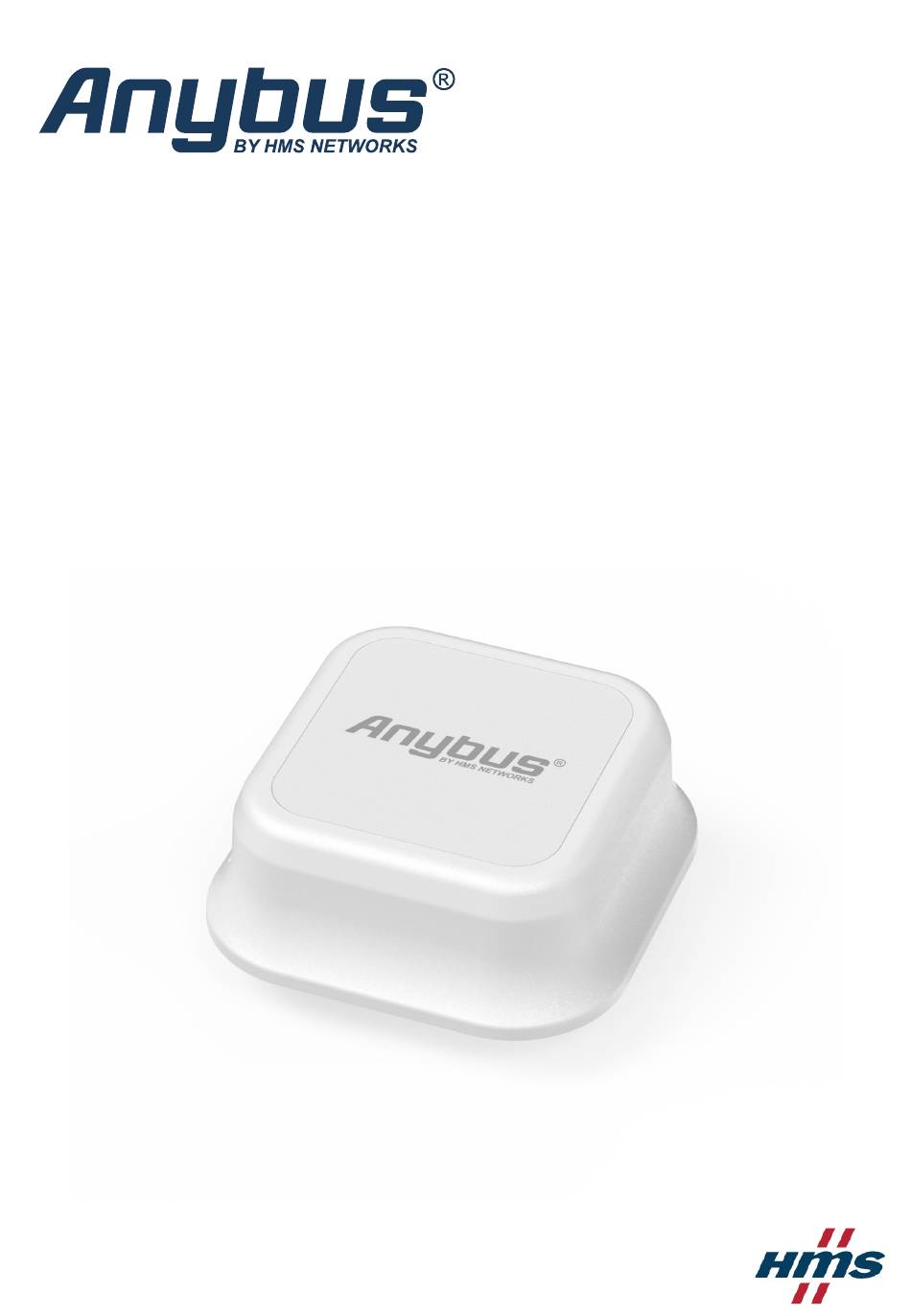

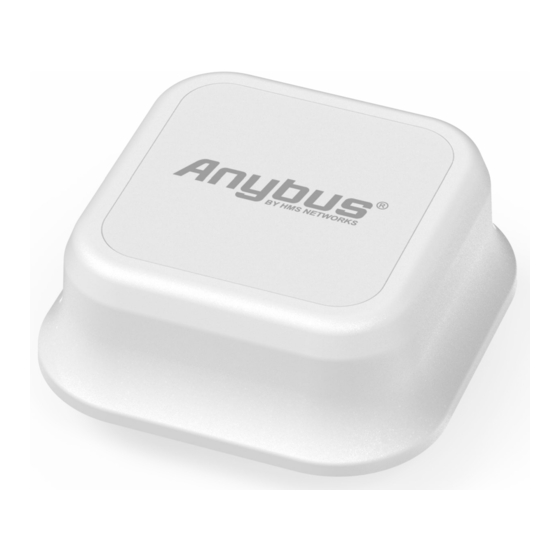

- Page 1 ENGLISH ® ™ Anybus Wireless Bolt II STARTUP GUIDE SP3090 Version 1.0 Publication date 2023-03-20...
- Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: About This Document
® ™ Preface Anybus Wireless Bolt II 1. Preface 1.1. About This Document ® ™ This document describes how to install Anybus Wireless Bolt II For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. 1.2. - Page 4 Helpful advice and suggestions. 1.3. Trademarks ® ™ Anybus is a registered trademark and Wireless Bolt II is a trademark of HMS Networks All other trademarks are the property of their respective holders. Page 2 of 24 SP3090 Version 1.0...
-
Page 5: General Safety
® ™ Safety Anybus Wireless Bolt II 2. Safety 2.1. General Safety CAUTION This equipment emits RF energy in the ISM (Industrial, Scientific, Medical) band. Make sure that all medical devices used in proximity to this equipment meet appropriate susceptibility specifications for this type of RF energy. -
Page 6: Placement Considerations
® ™ Anybus Wireless Bolt II Preparation 3. Preparation 3.1. Cabling Have the following cables available: • Ethernet cable for configuration • Ethernet cable for connecting to network NOTE Both shielded and unshielded Ethernet cables may be used. • Power cable or Power over Ethernet (PoE) power source. 3.2. - Page 7 ® ™ Support and Resources Anybus Wireless Bolt II 3.3. Support and Resources For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please scan the QR code to visit the Bolt II support web page. You can also visit www.anybus.com/support and enter the product article number to search for the Bolt II support web page.
- Page 8 Download the software installation files and user documentation from www.anybus.com/support. HMS IPconfig Use the software application HMS IPconfig and scan your network to discover the Bolt II IP address and to access the Bolt II built-in web interface. NOTE HMS IPconfig is only available for Windows.
-
Page 9: Installation Drawing
® ™ Installation Anybus Wireless Bolt II 4. Installation 4.1. Installation Drawing All measurements are in mm. Figure 2. Bolt II installation drawing SP3090 Version 1.0 Page 7 of 24... -
Page 10: Surface Mounting
® ™ Anybus Wireless Bolt II Surface Mounting 4.2. Surface Mounting Before You Begin Mounting Considerations • Mount the Bolt II on a machine or cabinet • Mounting hole diameter: M50 (50,5 mm) • Bolt II lock nut tightening torque: 5 Nm ±10 % •... - Page 11 ® ™ Surface Mounting Anybus Wireless Bolt II Place the Bolt II housing sealing ring in its groove. In the mounting surface, drill a mounting hole with the size Ø M50 (50,5 mm). Place the Bolt II in its mounting hole. SP3090 Version 1.0 Page 9 of 24...
- Page 12 ® ™ Anybus Wireless Bolt II Surface Mounting Screw the Bolt II lock nut into place and tighten it. Tightening torque: 5 Nm ±10 % IMPORTANT To keep the Bolt II sealed against dirt and moisture, make sure the housing sealing ring is properly seated in its groove before tightening the lock nut.
- Page 13 ® ™ Connect to Power Over Ethernet (PoE) Anybus Wireless Bolt II 4.3. Connect to Power Over Ethernet (PoE) Before You Begin IMPORTANT Connecting the Bolt II to PoE and DC power simultaneously may result in a current loop that could damage both the power sources and the Bolt II. Ensure to use only one of the power connections at a time.
- Page 14 ® ™ Anybus Wireless Bolt II Connect to Power Over Ethernet (PoE) RJ45 Ethernet PoE Connector Table 1. RJ45 Ethernet PoE Connector pinning Data Positive power from alt. A PSE Negative power from alt. A PSE (with pin 6) Positive power from alt. B PSE Negative power from alt.
- Page 15 ® ™ Connect to Power and Ethernet Anybus Wireless Bolt II 4.4. Connect to Power and Ethernet Before You Begin CAUTION Connecting power with reverse polarity or using the wrong type of power supply may damage the equipment. Make sure that the power supply is connected correctly and of the recommended type.
- Page 16 ® ™ Anybus Wireless Bolt II Connect to Power and Ethernet Figure 4. Functional earth wire screw placement, view from below Page 14 of 24 SP3090 Version 1.0...
- Page 17 ® ™ Connect to Power and Ethernet Anybus Wireless Bolt II Procedure Figure 5. Connect Power, Functional Earth (FE) and Ethernet SP3090 Version 1.0 Page 15 of 24...
- Page 18 ® ™ Anybus Wireless Bolt II Connect to Power and Ethernet Power Connector 3-Pin Table 2. Power connector, 3-pin terminal block Function Recommended: 12–24 VDC Reverse voltage protection Min: 10 VDC Max: 33 VDC Functional Earth (FE) Connect Power, Functional Earth (FE) and Ethernet Connect the Bolt II to Functional Earth (FE).
- Page 19 ® ™ Configuration Anybus Wireless Bolt II 5. Configuration 5.1. Connect to Configure Configure Using a Wired PC The first time you configure the Bolt II or after a factory reset, connect it to a PC via an Ethernet cable. Figure 6.
- Page 20 ® ™ Anybus Wireless Bolt II Required IP Address Settings 5.2. Required IP Address Settings To be able to access the Bolt II built-in web interface you may need to adjust the IP settings, choose one of the following methods. NOTE The Bolt II default IP address is 192.168.0.97 and the subnet mask is 255.255.255.0.
- Page 21 ® ™ Required IP Address Settings Anybus Wireless Bolt II Option 2 - Set a Static IP Address on Your PC NOTE When you change to a static IP address on your PC, internet access is lost. On the PC accessing the Bolt II built-in web interface, set a static IP address within the same IP address range as the Bolt II IP address.
- Page 22 Procedure Figure 7. The Bolt II built-in web interface Home page Open the Bolt II built-in web interface in HMS IPconfig or enter the Bolt II IP address in your web browser. The built-in web interface takes you through the steps to configure the Bolt II.
-
Page 23: Technical Specifications
® ™ Technical Specifications Anybus Wireless Bolt II 6. Technical Specifications Model identification AWB6BA Communication connector RJ45 Power connector 3-pole push-in spring connection Power supply Recommended: 12–24 VDC Reverse voltage protection Min: 10 VDC Max: 33 VDC Max power: 2.5 W Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical: 1.45 W... - Page 24 ® ™ Anybus Wireless Bolt II Technical Specifications Additional technical data and information related to the installation and use of this product can be found at www.anybus.com/support. Page 22 of 24 SP3090 Version 1.0...
-
Page 25: Ethernet Led Indication
® ™ Ethernet LED Indication Anybus Wireless Bolt II 7. Ethernet LED Indication Figure 8. RJ45 LED indicators LED A – LINK Function No Ethernet link or no power Yellow Ethernet link established Yellow, flashing Ethernet traffic LED B – ACTIVITY Function No power Green... - Page 26 This page is intentionally left blank.
