7.2 Introduction

To display the configuration and status web pages of the X-gateway, start a web browser and type the
IP address of the module in the address field.
The default IP address of the X-gateway is 192.168.0.100. To connect a computer to the X-gateway,
make sure that both the computer and the module are using the same subnet mask, e.g. 255.255.255.0.
Change the IP address of the computer to 192.168.0.X, where X is any number between 0 and 255 ex-
cept 100.
If, for example, there is a DHCP server on the network, the IP address might be unknown. In that case,

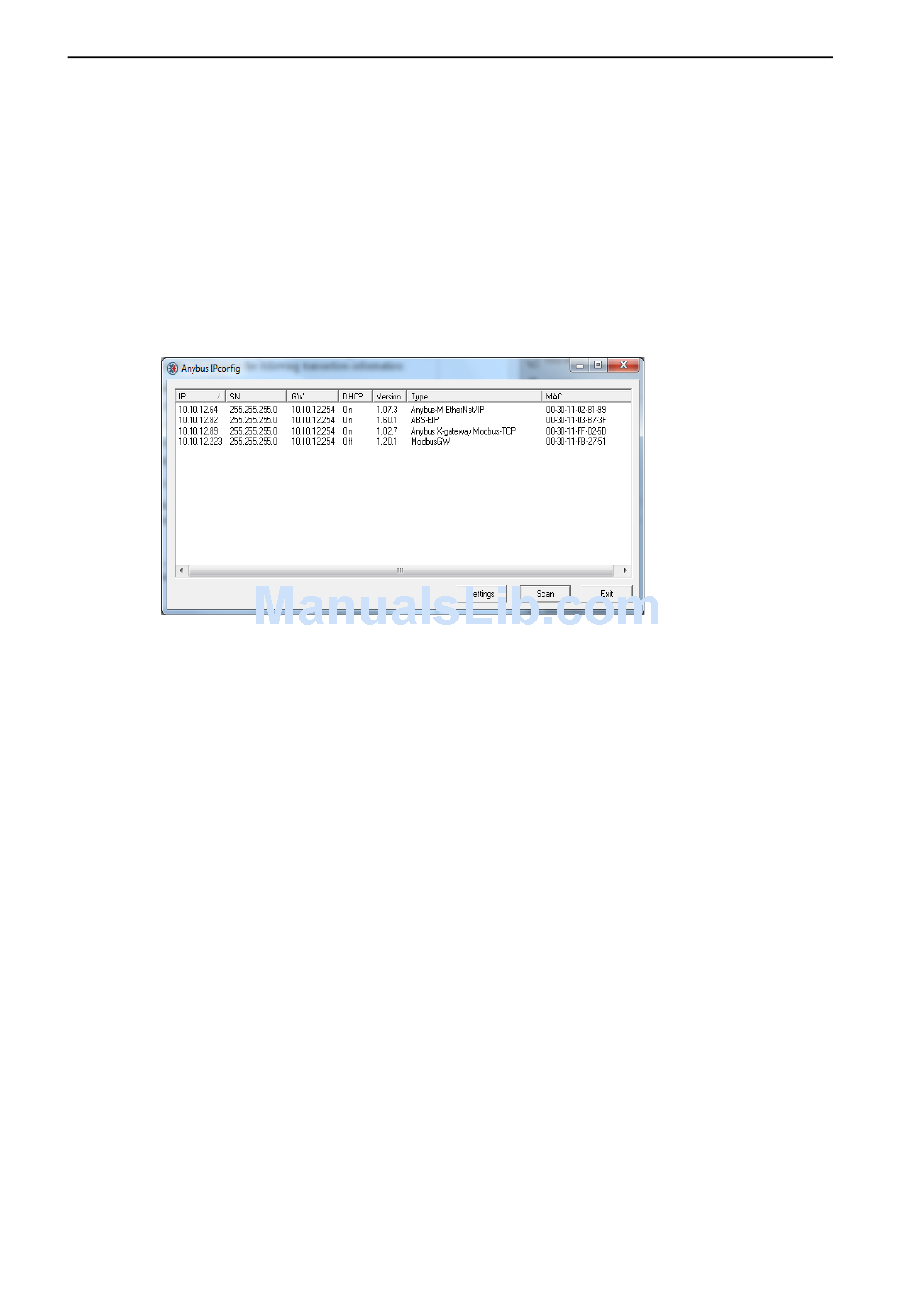

use the Anybus IPconfig tool to find it. The Anybus IPconfig tool can be downloaded from www.any-
bus.com.
If a list of connected devices does not show automatically, press the scan button. Identify the IP address
of the X-gateway by its type 'Anybus X-gateway Modbus-TCP' or by its MAC address. The MAC ad-
dress of the X-gateway can be found at the bottom of the module.
For additional information about the Anybus IPconfig tool, see "Anybus IPconfig Tool" on page 42.
