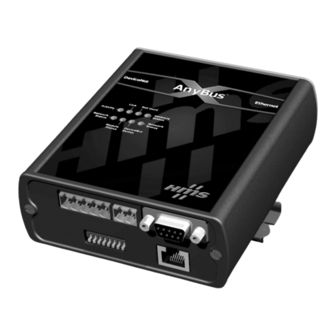

Anybus-X
Ethernet to DeviceNet Gateway
Installation Guide
AB7607
Part no. SP0848
Rev. 1.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anybus-X AB7607 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HMS Anybus-X AB7607

  • Page 1 Anybus-X Ethernet to DeviceNet Gateway Installation Guide AB7607 Part no. SP0848 Rev. 1.23...
  • Page 2: Table Of Contents

    Setting the IP Address ........... 6 Configuration Port Connector ......... 11 Further Technical Information......... 12 Technical Specifications..........12 Environmental Specifications ........12 EMC Directive Compliance .......... 12 Electrical Specifications..........12 Warranty ................13 Support ................14 © 2005-2009 HMS Industrial Networks.
  • Page 3: Installation Items Checklist

    Terminal tightening torque must be between 5 – 7 lbs-in (0,5-0,8 Nm).  For use in Class 2 circuits only.  Suitable for Surrounding temperature of 65 C max.  Use 60/75 C copper wire only. © 2005-2009 HMS Industrial Networks.
  • Page 4: Connectors

    Installation Guide 3 Connectors DeviceNet Power Aux RS-232 Ethernet Ethernet IP Address Connecting Power The Anybus-X requires 24 volts DC power on the 2 position terminal block con- nector. 24VDC Common 24 VDC + © 2005-2009 HMS Industrial Networks.
  • Page 5: Connecting To Devicenet

    A 120 ohm termination resistor (not provided) between CAN High and CAN Low may be required for proper network termination. Setting the MAC ID and Baud Rate Factory default DeviceNet settings are: MAC ID Baud Rate 125K © 2005-2009 HMS Industrial Networks.
  • Page 6 A DeviceNet node commissioning utility, such as RSNetworx or NetTool-DN, may be used to change the MAC ID and baud rate settings. Refer to the user doc- umentation for the tool being used, or the Anybus-X user manual for more details. © 2005-2009 HMS Industrial Networks.
  • Page 7: Connecting To Ethernet

    When DHCP/BOOTP is enabled, the IP address settings will be configured by the DHCP or BOOTP server on the network. This is the default setting of the Anybus-X when it is shipped. The DHCP option is enabled or disabled using the Anybus-X’s Settings web page. © 2005-2009 HMS Industrial Networks.
  • Page 8 This address is a private address and can only be used on a local intranet. Example: The switch represents the binary value 00010100, or 20 decimal. (The switch position is shown in White in the diagram.) The resulting IP address will be 192.168.1.20. © 2005-2009 HMS Industrial Networks.
  • Page 9 ARP table. Example: The following commands will set the IP address of a Anybus-X with MAC address 00-30-11-02-00-5E to 65.106.34.252. arp -s 65.106.34.252 00-30-11-02-00-5e ping 65.106.34.252 arp -d 65.106.34.252 © 2005-2009 HMS Industrial Networks.
  • Page 10 The IP address can also be configured using the Status and Settings web page. The web pages are accessed by typing the current IP address of the Anybus-X into a web browser URL. The Status and Settings web page appears as shown below. © 2005-2009 HMS Industrial Networks.
  • Page 11 On Internet Explorer this is done in the Temporary Internet Files Settings dialog by selecting the “Every Visit” option for when the browser should check for page changes. © 2005-2009 HMS Industrial Networks.
  • Page 12: Configuration Port Connector

    Note: The Anybus-X does not make use of the modem control signals specified for a DTE connector. Connecting the module through devices, such as isolation modules, which assume control of these lines may cause the BWConfig commu- nications to be unreliable. © 2005-2009 HMS Industrial Networks.
  • Page 13: Further Technical Information

    Complete technical information on installing and configuring the Anybus-X can be found in the Anybus-X Ethernet to DeviceNet Gateway User Manual. The User Manual can be downloaded from the HMS web site at: http://www.anybus.com and go to the support section or requested directly using the contact information supplied below.
  • Page 14: Warranty

    Installation Guide 13 Warranty HMS Industrial Networks AB warrants all new products to be free of defects in material and workmanship when applied in the manner for which they were intended and accord- ing to HMS Industrial Networks AB’ published information on proper installation. The Warranty period is one year from the date of shipment.
  • Page 15: Support

    Installation Guide 14 Support For product support, visit the HMS web site at: http://www.anybus.com and go to the support section or contact: Support HMS Sweden (Head Office) E-mail: support@hms-networks.com Phone: +46 (0) 35 - 17 29 20 Fax: +46 (0) 35 - 17 29 09 Online: www.anybus.com...
  • Page 16 Installation Guide 15 HMS France E-mail: mta@hms-networks.com Phone: +33 (0) 3 89 32 76 41 Fax: +33 (0) 3 89 32 76 31 Online: www.anybus.com © 2005-2009 HMS Industrial Networks.
