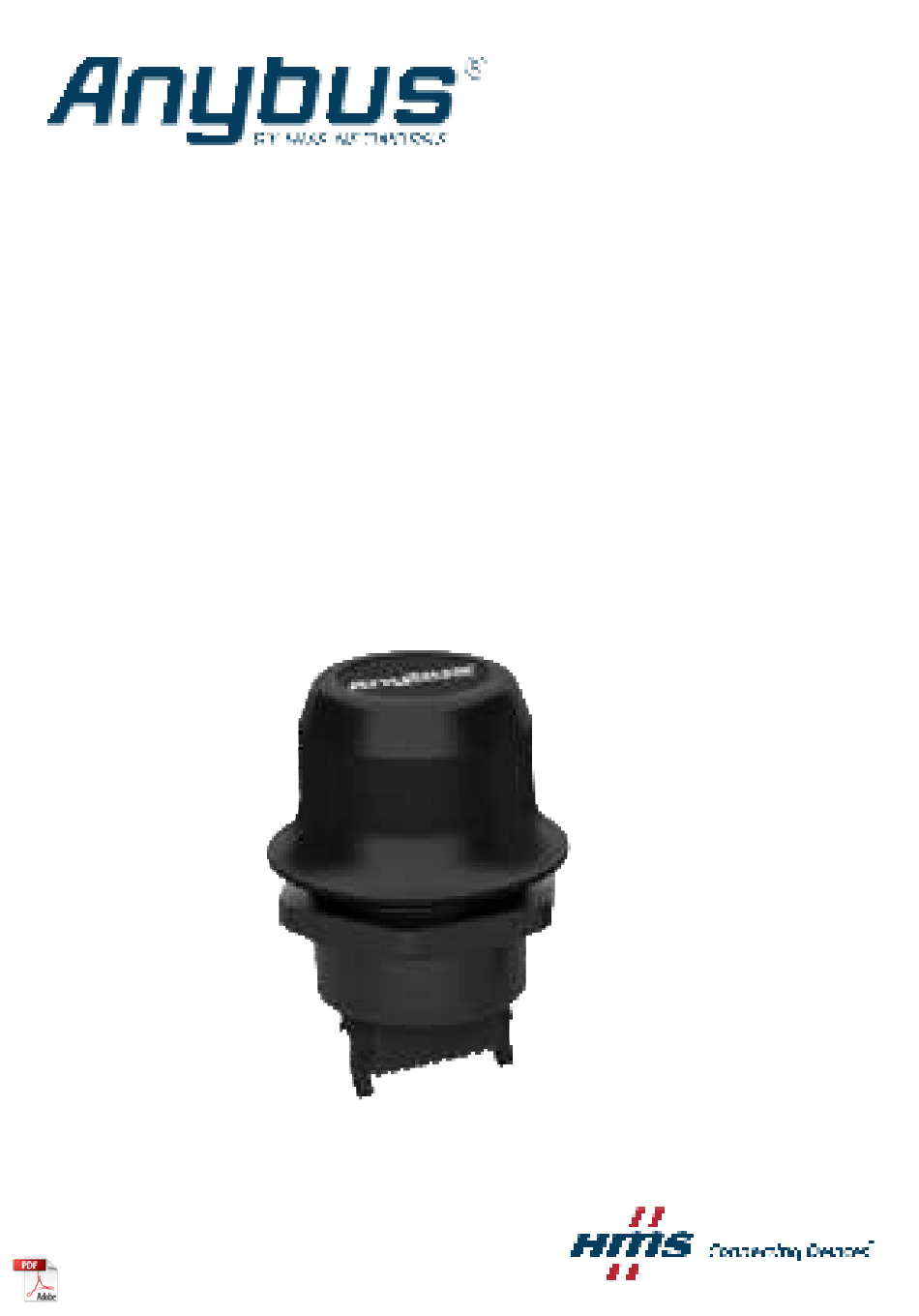

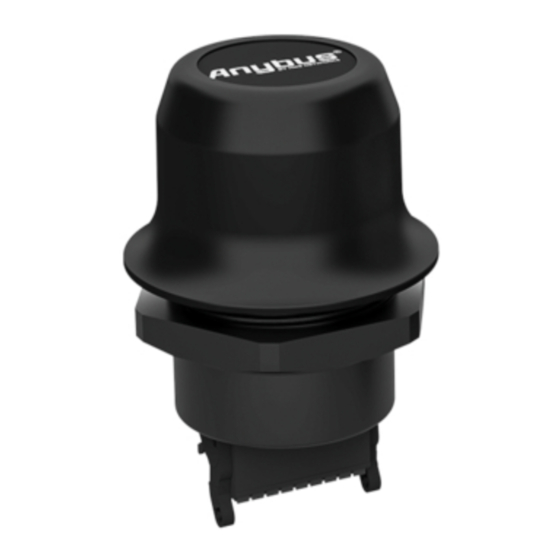

- Page 1 ® ™ Anybus Wireless Bolt Serial STARTUP GUIDE SP2554 1.12 en-US ENGLISH...
- Page 2 HMS Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Page Preface ..............3 About This Document . - Page 4 This page intentionally left blank...
-
Page 5: Preface
Anybus is a registered trademark and Wireless Bolt Serial is a trademark of ® ™ HMS Industrial Networks AB. All other trademarks mentioned in this document are the property of their respective holders. SP2554 1.12 en-US Anybus Wireless Bolt Serial Startup Guide ®... -
Page 6: Safety
Safety 4 (24) Safety General Safety Instructions Caution This equipment emits RF energy in the ISM (Industrial, Scientific, Medical) band. Make sure that all medical devices used in proximity to this equipment meet appropriate susceptibility specifications for this type of RF energy. -
Page 7: Preparation
Preparation 5 (24) Preparation General Information Make sure that you have all the necessary information about the capabilities and restrictions of your local network environment before installation. For optimal reception, wireless devices require a zone between them clear of objects that could otherwise obstruct or reflect the signal. A minimum distance of 50 cm between the devices should also be observed to avoid interference. -
Page 8: Installation
Installation 6 (24) Installation Mechanical Installation The device is intended to be mounted on top of a machine or cabinet through an M50 (50.5 mm) hole using the included sealing ring and nut. The top mounting surface (in contact with the sealing) must be flat with a finish equivalent to Ra 3.2 or finer and cleaned and free from oils and greases. -
Page 9: Connector
Installation 7 (24) Connector The 18-pin connector is common for several models of the Anybus Wireless Bolt. Some pins may have a different function depending on model. Unused pins should not be connected. Fig. 1 Connector The location of the RESET button can be used as a reference for the pin numbering when the connector is attached to the Wireless Bolt Serial. - Page 10 Installation 8 (24) Description Name Serial and Functional Earth and CAN: Shield RS232_TXD RS-232 Transmit RS-485 A RS485_A/RS232_RXD Line / RS-232 Receive RS232_RTS RS-232 Not used for Request To Wireless Bolt Serial. Send RS232_CTS RS-232 Clear Not used for To Send Wireless Bolt Serial.
-
Page 11: Cabling
Installation 9 (24) Cabling When using Easy Config Modes, the Wireless Bolt Serial that is to be configured as a Client does not need to be connected to the Ethernet wires. Only power and Serial wiring are used. To make an Ethernet, Serial and power connector cable for Anybus Wireless Bolt Serial: Fig. -
Page 12: Digital Input
Installation 10 (24) Digital Input The digital input can be used to control roaming between Bluetooth access points (NAP). For more information, refer to the AT Reference Guide at www.anybus.com/support. If voltage is applied to the digital input for more that 10 seconds the unit will be reset to factory defaults. -
Page 13: Configuration
Configuration 11 (24) Configuration Anybus Wireless Bolt Serial is configured via a web interface. Parameters can be set individually or using pre-configured Easy Config modes. Advanced configuration can be carried out by issuing AT commands via the web interface or over a Telnet or RAW TCP connection to port 8080 or over serial interface. -
Page 14: Web Interface
Configuration 12 (24) Web Interface The web interface is accessed by pointing a web browser to the IP address of the unit. The default address is 192.168.0.99. The configuration settings are described in detail in the User Manual. Fig. 4 Web interface SP2554 1.12 en-US Anybus... -
Page 15: Easy Config Modes
Configuration 13 (24) Easy Config Modes In the web interface, you can perform the initial configuration using Easy Config Modes: Fig. 5 Example, Easy Config Mode 5 Role Description Configure as Bluetooth client and scan for another client (PANU to PANU). Recommended setting for Bluetooth point-to-point communication. - Page 16 Configuration 14 (24) Default Easy Config Mode Fig. 6 The default mode is Easy Config Mode 4 By default Wireless Bolt and Bridge starts in Easy Config Mode 4. Configuration of Wireless Bolt and Bridge Clients can be performed wirelessly, via a PC connected to the Wireless Bolt or Bridge Access Point.
-
Page 17: Set Up A Wireless Infrastructure
Configuration 15 (24) Set Up a Wireless Infrastructure Connect two or more Wireless Bolt Serial units via WLAN or Bluetooth using Easy Config. When installing more than one Wireless Bolt Serial in the bridge, configure the Wireless Bolt Serial connected to the Master device as the Access Point. Configure the Wireless Bolt Serial connected to the Slave as a Clients. - Page 18 Configuration 16 (24) 5.3.2 Activate Easy Config Navigate to the web interface of Access Point unit 2. The default address to Access Point unit 2 is 192.168.0.99. Activate one of the following Easy Config Modes: – Easy Config Mode 1 for Bluetooth PANU-PANU. Used for setting up point-to-point communication.
- Page 19 Configuration 17 (24) 5.3.4 Serial Configuration From the PC connected to Access Point unit 2: Navigate to the web interface of each Wireless Bolt Serial unit. Select the Serial Settings tab. Configure the serial port settings: Operating Specify the physical serial communication interface. mode Select RS232 or RS485.
- Page 20 Configuration 18 (24) 5.3.5 Serial Installation Connect each Wireless Bolt Serial unit to a device or machine equipped with a Serial port. For more information, refer to Connector, p. 7 Cabling, p. SP2554 1.12 en-US Anybus Wireless Bolt Serial Startup Guide ®...
-
Page 21: Factory Restore
Configuration 19 (24) Factory Restore Any one of these actions will restore the factory default settings: • Clicking on Factory Restore on the System Settings page • Executing Easy Config Mode 2 Issuing the AT command AT&F and then restarting the unit •... - Page 22 Configuration 20 (24) Default Serial Settings (continued) Data bits Stop bits Parity No parity Modbus optimization Server TCP Mode Modbus Gateway Disabled Mode TCP port 5005 SP2554 1.12 en-US Anybus Wireless Bolt Serial Startup Guide ® ™...
-
Page 23: Technical Data
Technical Data 21 (24) Technical Data For complete technical specifications and regulatory compliance information please visit www.anybus.com/support. Technical Specifications Order code AWB2010 AWB2011 Color Black White top and black base Connector Included plug connector (2x9p; 3.5mm, Phoenix DFMC 1.5/9-ST-3.5, push-in spring connection). - Page 24 Technical Data 22 (24) Order code AWB2010 AWB2011 Velocity: 1 oct/min, Mode: in operation, Frequency: 5-500 Hz, Displacement ±3.5 mm, Acceleration: 2g. Shock test according to IEC 60068-2-27:2008 and with extra severities; Wave shape: half sine, Number of shocks: ±3 in each axes, Mode: In operation, Axes ±...
- Page 25 Technical Data 23 (24) Order code AWB2010 AWB2011 Wireless LAN Wireless standards: WLAN 802.11 a, b, g, n, d, r (fast roaming). Operation modes: Access point or Client WiFi channels: 2.4 GHz, channel 1-11 + 12-13 depending on regulatory domain scan. 5 GHz Access Point: 36-48 (U-NII-1), 5 GHz Client: 100-116 + 132-140 and 120-128 depending on regulatory domain scan.
- Page 26 © 2021 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SP2554 1.12 en-US / 2021-09-01 / 23242...
