3.2.2 Wall Mounting

Use the wall mounting option if there is a need to place the X-gateway in an environment exposed to
vibration. This way of mounting the module offers more stability than the traditional DIN-rail mount-
ing.
Note: The X-gateway should be fastened in a standing-up position, to ensure a constant air flow.
Note: When mounting the X-gateway to a wall using the wall mount option, do not forget to connect
the module to protective earth (PE) via the power connector. See "Power Connector" on page 20.

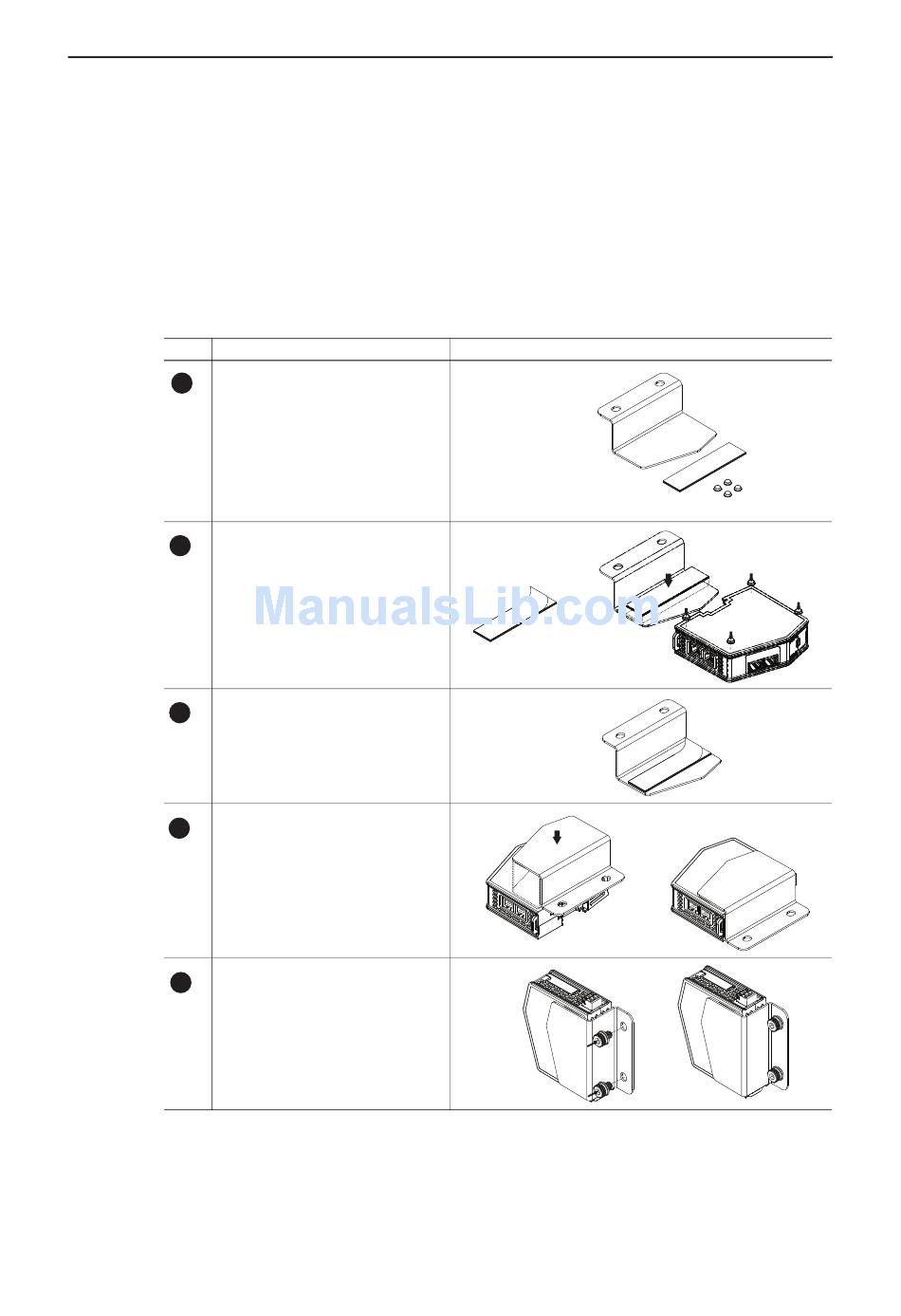

Mounting Instructions
Step Description
Open up the package containing the wall
1
mounting accessories.
- One metal frame
- Industrial velcro
- Four plastic vibration dampers
Remove the plastic protection from one
2
side of the velcro.
Attach the velcro to the metal frame.
Attach the four plastic vibration dampers
to the X-gateway, on the side that will face
the wall.
Remove the plastic protection from the
3
other side of the velcro.
Turn the X-gateway around, so that the
4
plastic vibration dampers face down-
wards.
Fasten the metal frame to the X-gateway
by pressing the frame firmly against the X-
gateway, making the two velcro parts
attach to each other.
Attach the metal frame and the X-gateway
5
to a wall using screws and washers (not
enclosed).
