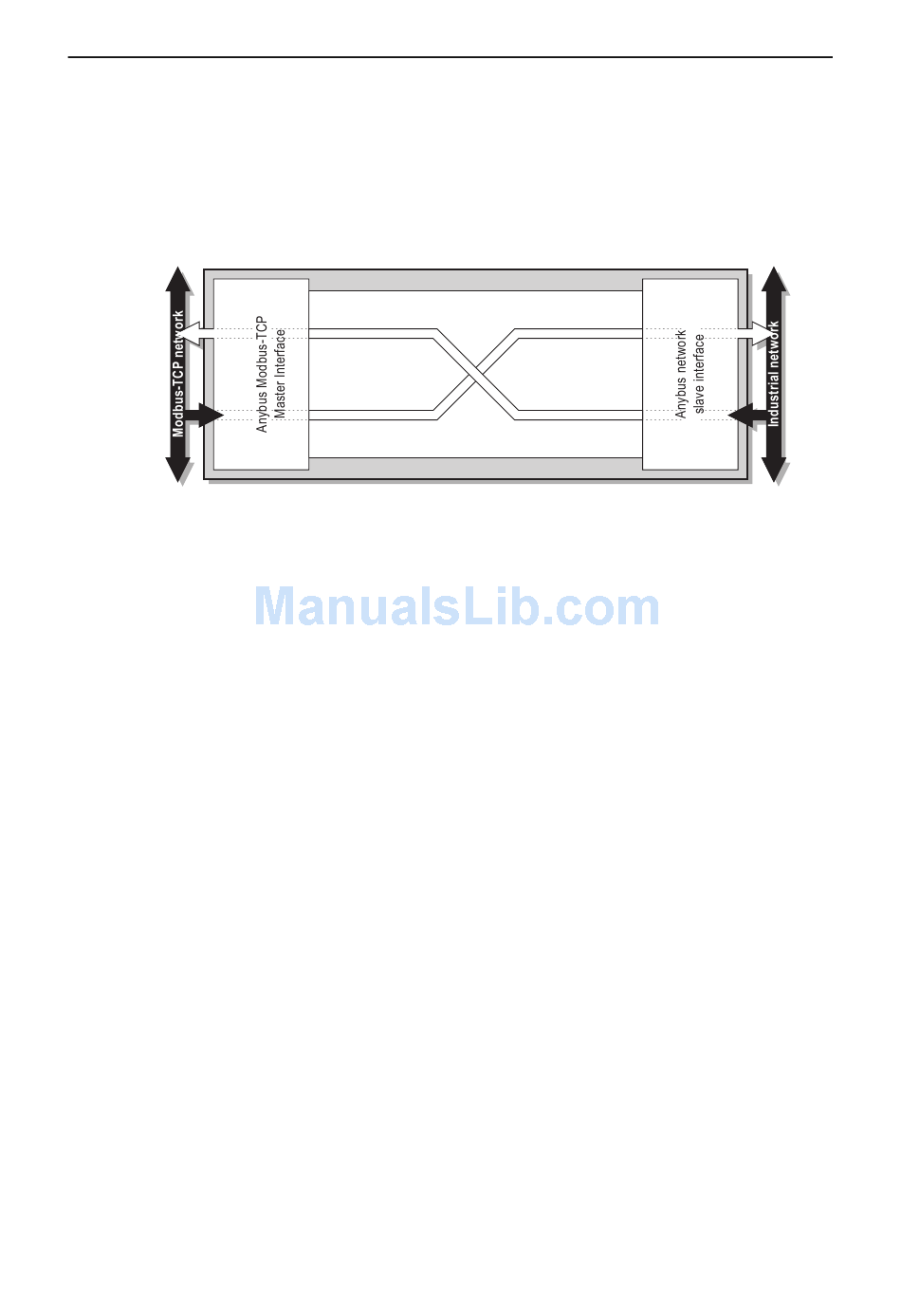

2.4 Functional Overview
Internally, the X-gateway consists of an intelligent gateway platform: an Anybus Modbus-TCP client in-
terface for Network 2 and an Anybus Modbus-TCP server interface for Network 1. The two interfaces
are interconnected through the intelligent gateway platform, which basically forwards data from one net-
work to the other and vice versa as shown below. This design allows almost any other industrial network
to be connected to a Modbus-TCP master on a separate Modbus-TCP network.
Anybus X-gateway for Modbus-TCP - Modbus-TCP
Doc.Rev. 1.00
Anybus X-gateway for Modbus-TCP - Modbus-TCP 11
Doc.Id. SCM-1200-114
