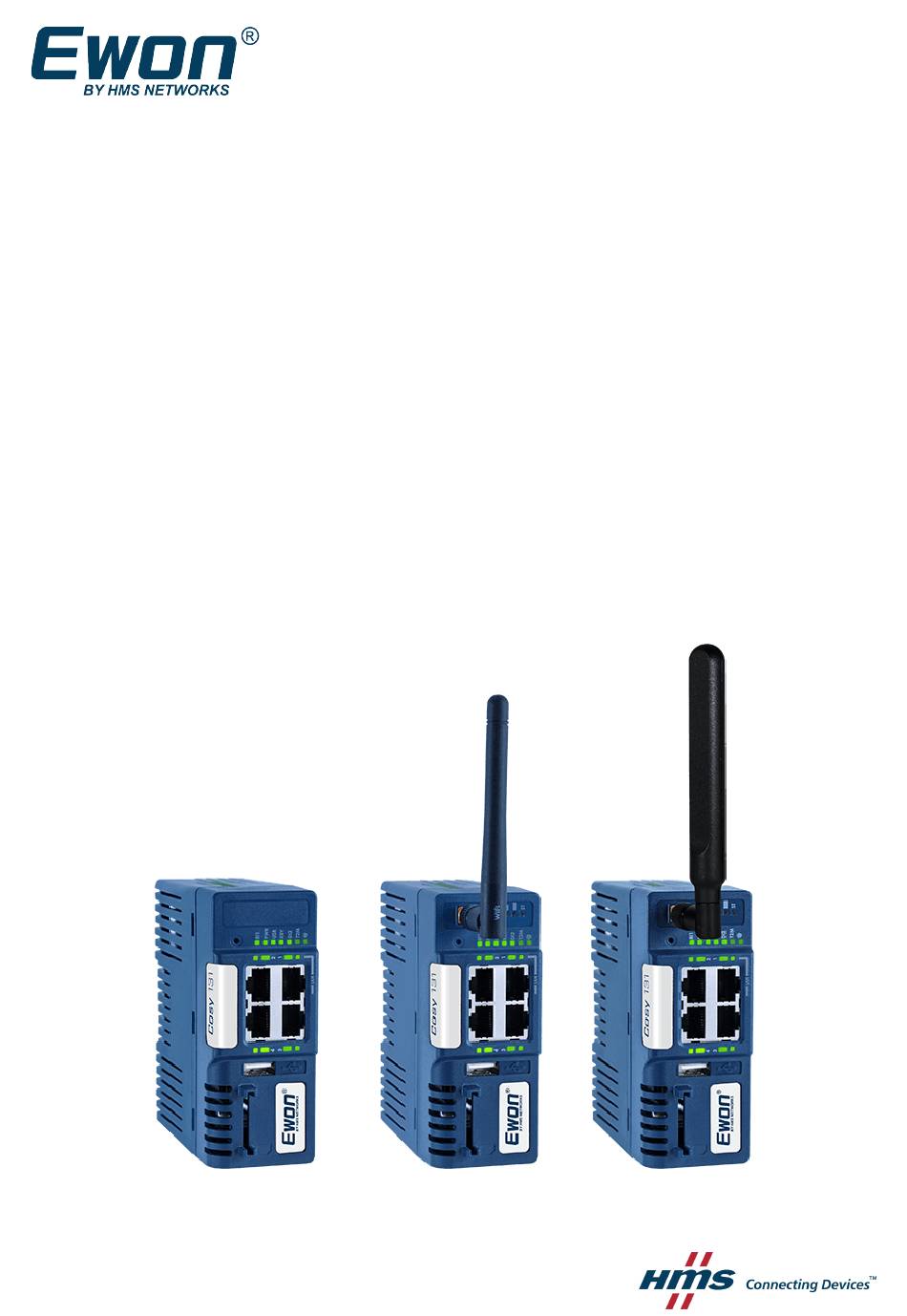

  • Page 1 Ewon Cosy 131 USER MANUAL UM-0004-00 1.1 en-US ENGLISH...
  • Page 2 HMS Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.

  • Page 3: Table Of Contents

    Document history ......................3 Related Documents ......................3 Trademark Information .....................3 Requirements ........................4 Hardware ........................4 Software.........................4 Access to the Ewon Cosy 131 ..................... 5 Assign an IP Address......................5 Talk2M Account Configuration ...................5 Access the Web Configuration Interface................7 Quick Launch Wizard......................8 System Wizard.........................8 Internet Wizard ......................
  • Page 4 This page intentionally left blank...

  • Page 5: Preface

    3 (28) Preface About This Document This document presents the features of the Ewon Cosy 131 and explains briefly the steps to take to get a functional Cosy 131. For additional related documentation and file downloads, please visit www.ewon.biz/support. Document history...

  • Page 6: Requirements

    The companion tool eCatcher is required if you wish to connect the Ewon Cosy 131 to the Talk2M infrastructure. It also allows to create and set up a Talk2M account. To install eCatcher, you will need the administrator rights on the computer.

  • Page 7: Access To The Ewon Cosy 131

    Software, p. 4 for more details about eBuddy). By default, the IP address of the Ewon Cosy 131 is set to 10.0.0.53 which in some circumstances might need to be changed. To change the IP address of the Ewon Cosy 131, proceed as follows:...
  • Page 8 Once you’ve created the Talk2M account, an email will be sent with the activation link and instructions. Click on the icon +Add to add the Ewon Cosy 131 to your Talk2M account. Follow the screen prompts.

  • Page 9: Access The Web Configuration Interface

    For security reasons, you are required to change the default password. The password can be changed through the System Wizard described below. At first boot or after a reset level 2 of the Ewon Cosy 131, and after successfully logging in, a prompt will appear to set the interface language.

  • Page 10: Quick Launch Wizard

    & password. • The Internet Wizard configures the WAN communication settings. • The Talk2M Wizard establish a VPN between the Ewon Cosy 131 and the Talk2M infrastructure. System Wizard The System Wizard configures basic system settings. On the first screen of the System Wizard, enter the Ewon name.
  • Page 11 On the second screen of the System Wizard: • Configure the accurate <date and time> settings. For Talk2M communication, it is imperative that the date of the Ewon Cosy 131 is correct. • Configure the <Timezone> settings: click either on the arrow or the map icon.

  • Page 12: Internet Wizard

    Click Next to finish the System Wizard settings. Fig. 5 System Wizard Diagnosis Internet Wizard The Internet Wizard configures the Internet settings for the Ewon Cosy 131. The <Interface> field allows the selection of the WAN interface used for the Internet connection: •...
  • Page 13 Fig. 6 Internet Wizard Connection Setup Click Next to continue the WAN interface configuration. Select the appropriate method how the Ewon Cosy 131 is supposed to receive its IP address, according to the LAN network configuration: Static, BootP or DHCP.
  • Page 14 Quick Launch Wizard 12 (28) The Internet connection test is enabled by default, it allows the Ewon Cosy 131 to verify the Internet connection. Uncheck this option if this network uses a proxy server or if port 80 is closed for outbound connections.
  • Page 15 Maintain connection: the Ewon Cosy 131 is permanently connected to Internet. ► Send SMS to activate: the Ewon Cosy 131 connects to the Internet only after you sent a “wake-up” sms. Fig. 10 Internet Wizard Connection Setup UM-0004-00 1.1 en-US...
  • Page 16 <Operator> – <APN list>, the address of the operator. The Ewon Cosy 131 will automatically propose an APN based on the value of the <Country> <Operator> fields. If the APN is not automatically proposed, you will need to set a...
  • Page 17 Quick Launch Wizard 15 (28) Click Next to apply the configuration changes. → Once the wizard completes successfully, the Ewon Cosy 131 is connected to Internet through its cellular WAN network. Fig. 12 Internet Wizard Test 4.2.3 Wi-Fi Network Configuration...
  • Page 18 Internet connection. If this network uses a proxy server or if port 80 is closed for outbound connections, uncheck this option. Click Next to apply the configuration changes. Fig. 15 Internet Wizard Wifi Validation UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...

  • Page 19: Talk2M Wizard

    Click on Register with eWON Name • Enter the Talk2M name of the Cosy 131, and a valid Talk2M account user credentials. Click Next to move forward to the following screen. Fig. 17 Talk2M Wizard Registration Name UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...
  • Page 20 If the wizard completes successfully, the Cosy 131 is now configured for Remote Access through Talk2M. If the wizard fails, the Diagnostic and Setup, p. 27 section will give additional troubleshooting information. Fig. 19 Talk2M Wizard Validation UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...

  • Page 21: Home Section

    By default, it is activated. Possibility to change this status by clicking on it. NAT 1:1 Status of the NAT 1:1 By default, it is deactivated. Possibility to change this status by clicking on it. UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...
  • Page 22 Home Section 20 (28) Fig. 20 Summary Page UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...

  • Page 23: Ready To Establish The Remote Connection To Your Ewon

    It allows the remote Web access to your eWONs. To realize the remote Web access, no special software is needed on the PC or on the tablet. For further information, refer toM2Web from the Related Documents, p. 3 UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...

  • Page 24: Di Config Wizard

    • Click the Enabled checkbox. If enabled, then Talk2M remote access will only be possible at the high state of the digital input 1. Only if the Key Switch has been enabled. UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...

  • Page 25: Di Alarm Notification

    The Email notification enter the recipient, subject, and body of the message; then a notification will be sent when the Digital Input switch on a high state Fig. 23 DI Wizard Notification Key Configuration Click Next to test and apply the Digital Input connection settings. UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...
  • Page 26 SMS and email notifications even on a Cosy 131 WiFi and ethernet, are sent via T2M relays, but it does force the Cosy 131 to have a T2M connectivity and charges will apply for every SMS sent. UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...

  • Page 27: Wan Fallback

    25 (28) Wan fallback The WAN fallback , is an alternative option that allows the Ewon Cosy 131 to switch between networks automatically when the primary WAN network interface fails. To configure the WAN fallback feature on the Cosy 131, the Internet wizard needs to be re- launch, then configure the Internet wizard once again.
  • Page 28 Now, the WAN fallback network settings are successfully configured. WAN fallback feature will appears only by clicking on the Internet Wizard. If the Quick Launch Wizard is performed; the Internet Wizard will not offer the WAN fallback option UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...

  • Page 29: Diagnostic And Setup

    The Setup menu on the other hand offers an alternative approach to changes parameters such as Language, Ethernet IP, and/ or reboot the Cosy 131 Fig. 28 Diagnostic and Setup menu UM-0004-00 1.1 en-US Ewon Cosy 131 User Manual...
  • Page 30 © 2021 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se UM-0004-00 1.1 en-US / 2021-11-10 / 23705...
