Wall Mounting

The QDSP-2020 comes with 2 L-brackets for wall mounting. Secure the L-brackets
to the each side of the chassis using the total 8 screws.
Refer to figure below for wall mount holes
allows the QDSP-2020 to be mounted with the Front Panel facing in any orientation,
and provides for easy removal of the chassis for repair of maintenance. Use
standard M5 screws to mount the QDSP-2020.
QDSP-2020 User's Manual

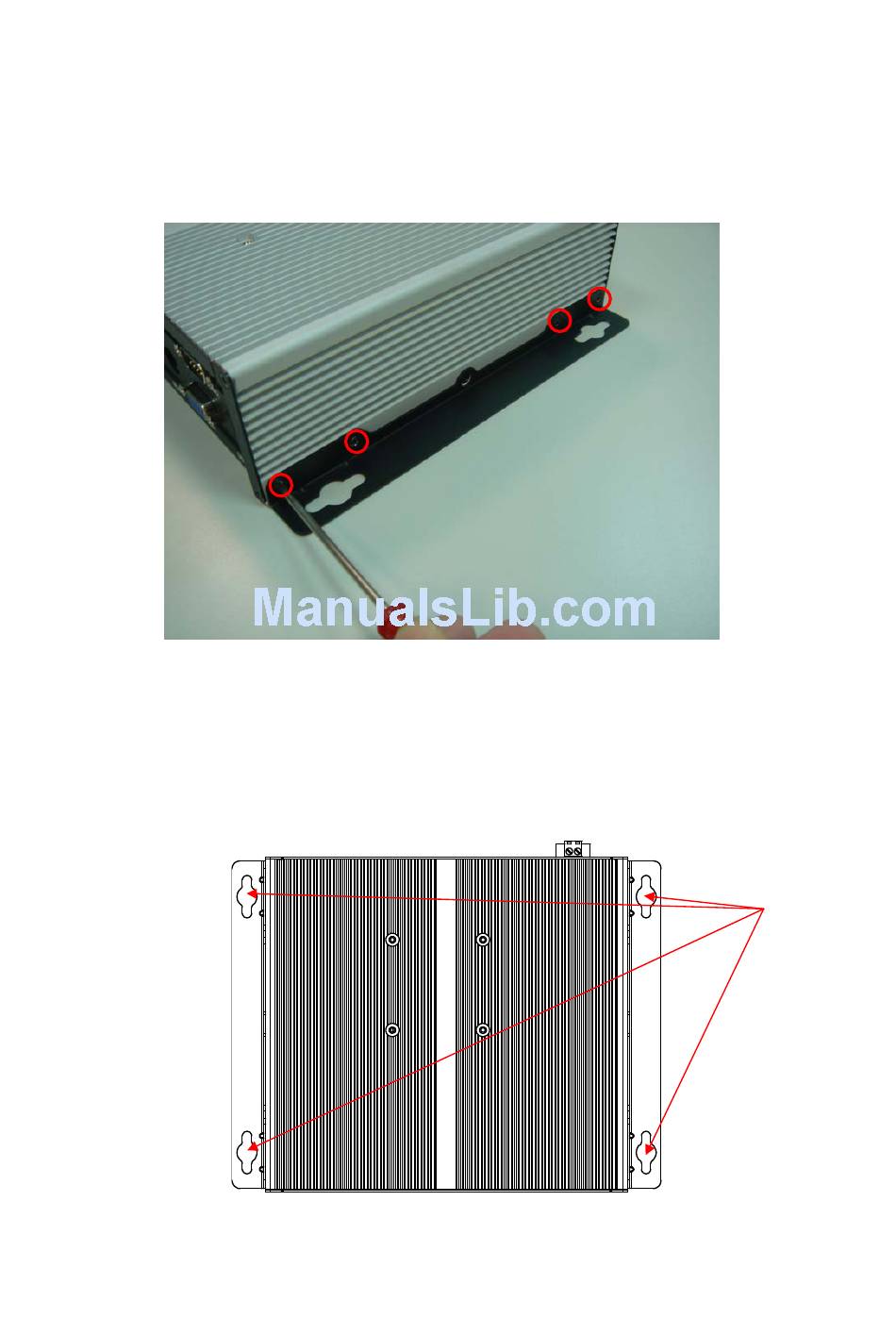

Figure 7 Secure the L-brackets for wall mounting

Figure 8 Wall mount holes spacing

spacing. The shape of the screw holes
20
Chapter 2
Wall Mounting
holes
