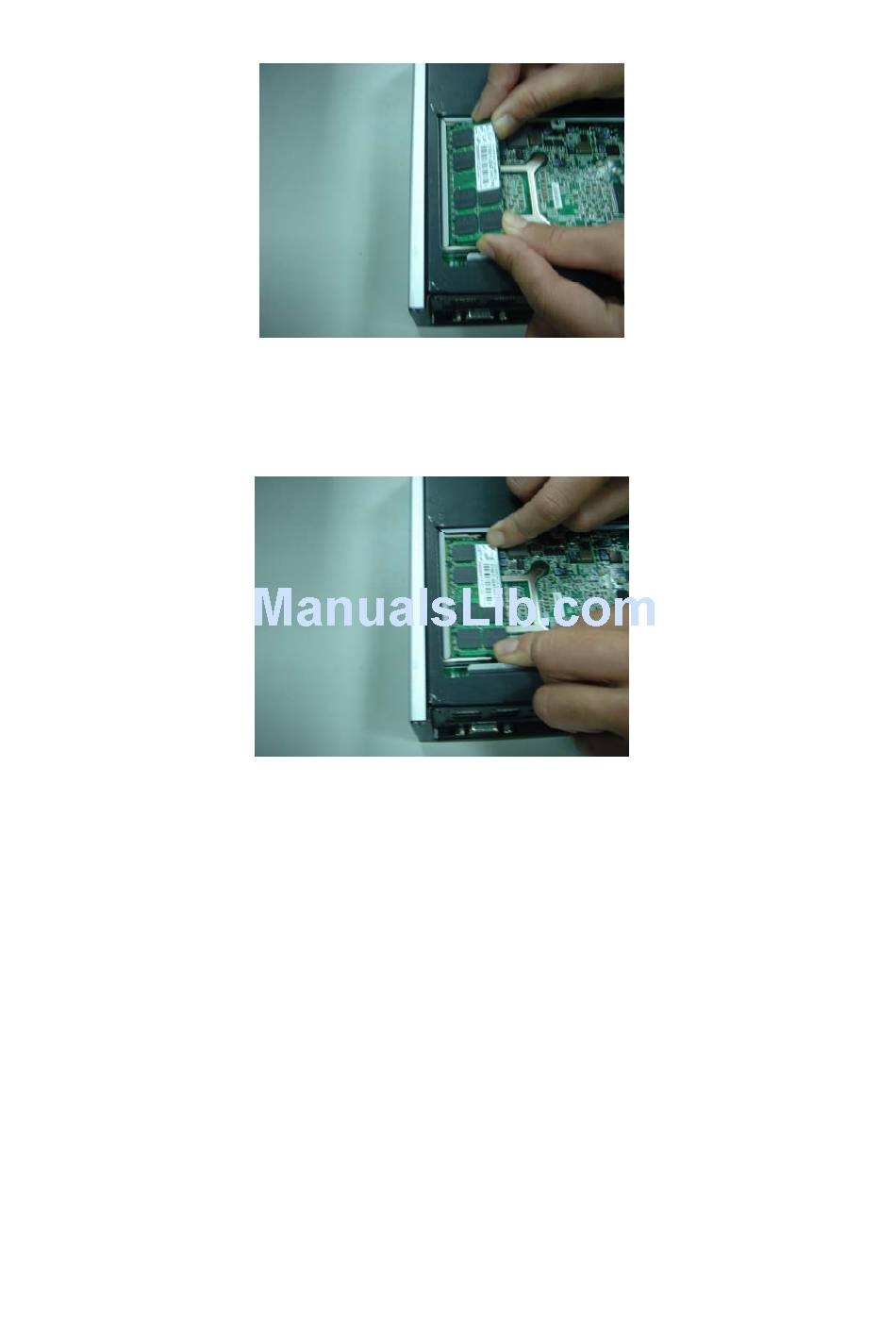

Figure 5 Fully insert the SO-DIMM Memory Module into the onboard socket

5. Press down on the SO-DIMM so that the tabs of the socket lock on both sides
of the module.

Figure 6 Press down on the SO-DIMM Memory Module to lock it in place

6. Replace the chassis bottom cover as described above.
QDSP-2020 User's Manual
19
Chapter 2
